| IMAGE SENSOR |
| Type |
22.3mm x 14.9mm CMOS |
| Effective Pixels |
Approx 24.20 Megapixels |
| Total Pixels |
Approx 25.80 Megapixels |
| Aspect Ratio |
3:2 |
| Low-Pass Filter |
Built-in/Fixed with Fluorine Coating |
| Sensor Cleaning |
EOS Intergrated Cleaning System |
| Colour Filter Type |
Primary Colour |
| |
|
| IMAGE PROCESSOR |
| Type |
DIGIC 6 |
| |
|
| LENS |
| Lens Mounts |
EF/EF-S |
| Focal Length |
Equivalent to 1.6x the focal length of the lens |
| |
|
| FOCUSING |
| Type |
TTL-CT-SIR with a CMOS sensor
|
|
AF System/ Points
|
45 cross-type AF points,27 f/8points (9 cross-type) centre point is f/2.8 and f/5.6 dual cross type
|
|
AF working range
|
EV -3 - 18 (at 23°C & ISO100)
|
|
AF Modes
|
AI Focus
One Shot
AI Servo
|
|
AF Point Selection
|
Automatic selection: 45 point AF
Manual selection: Single point AF
Manual selection: Zone AF
Manusl Selection: Large Zone AF
AF points can be selected separately for vertical and horizontal shooting
|
|
Selected AF point display
|
Indicated by a transmissive LCD in viewfinder and on top LCD panel and Quick Control screen
|
|
Predictive AF
|
Yes, up to 8m
|
|
AF Lock
|
Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed
|
|
AF Assist Beam
|
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
|
|
Manual Focus
|
Selected on lens
|
|
AF Microadjustment
|
C.Fn II-16
+/- 20 steps (wide and tele setting for Zooms)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number
|
|
EXPOSURE CONTROL
|
|
Metering modes
|
7560-pixel RGB+IR Meterin Sensor
Metering with the area divided into 63 Segments (9x7)
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (approx. 6% of viewfinder)
(3) Spot metering (approx. 3.8% viewfinder)
(4) Centre weighted average metering
|
|
Metering Range
|
EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)
|
|
AE Lock
|
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved
Manual: By AE lock button in creative zone modes
|
|
Exposure Compensation
|
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
|
|
AEB
|
2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments
|
|
ISO Sensitivity
|
Auto (100-16000), 100-16000 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25600 During Movie shooting: Auto (100-612800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25.600
|
|
SHUTTER
|
|
Type
|
Electronically-controlled focal-plane shutter
|
|
Speed
|
30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
|
|
WHITE BALANCE
|
|
Type
|
Auto white balance with the imaging sensor
|
|
Settings
|
AWB (Ambience Priority , White Priority) Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9.
|
|
Custom White Balance
|
Yes, 1 setting can be registered
|
|
WB Bracketing
|
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.
|
|
VIEWFINDER
|
|
Type
|
Pentaprism
|
|
Coverage (Vertical/Horizontal)
|
Approx. 100%
|
| Magnification |
Approx. 0.95x
|
|
Eyepoint
|
Approx. 22mm (from eyepiece lens centre)
|
|
Dioptre Correction
|
-3 to +1 m-1 (dioptre)
|
|
Focusing Screen
|
Fixed (Transmissive LCD screen)
|
|
Mirror
|
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
|
|
Viewfinder Information
|
AF information: AF points, focus confirmation, AF area selection mode.
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Electronic level Aspect Ratio
Other information: Battery check, Alert symbol Flicker Detection
|
| Eyepiece Shutter |
On Strap |
|
Depth of field preview
|
Yes, with Depth of Field preview button.
|
|

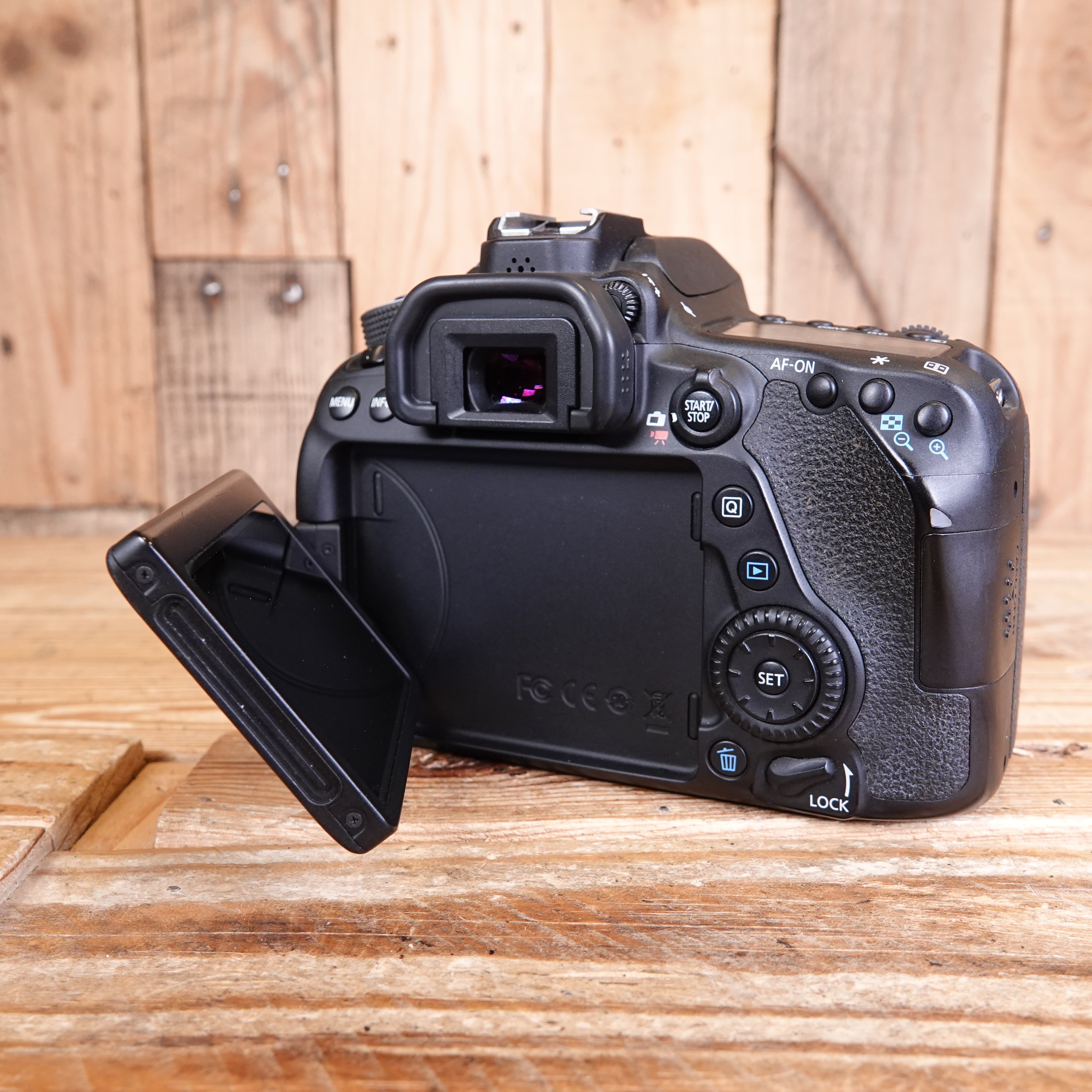

LCD MONITOR
|
|
Type
|
Touch Screen Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots
|
|
Coverage
|
Approx. 100%
|
|
Viewing Angle(horizontally/vertically)
|
Approx 170°
|
|
Coating
|
Anti-reflection, Solid Structure and Anti smudge
|
|
Brightness Adjustment
|
Adjustable to one of seven levels
|
|
Display Options
|
(1) Quick Control Screen
(2) Camera settings
(3) Electronic Level
|
|
FLASH
|
|
Built-in Flash GN (ISO 100)
|
12
|
|
Built-in Flash Coverage
|
up to 17mm focal length (35mm equivalent: 27mm)
|
|
Built-in Flash recycle time
|
Approx. 3 seconds
|
|
Modes
|
Auto, Manual flash, Integrated Speedlite Transmitter
|
|
Red-Eye Reduction
|
Yes - with red-eye reduction lamp
|
|
X-sync
|
1/250sec
|
|
Flash Exposure Compensation
|
+/- 3EV in 1/2 or 1/3 increments
|
|
Flash Exposure Bracketing
|
Yes, with compatible External Flash
|
|
Flash Exposure Lock
|
Yes
|
|
Second Curtain Synchronisation
|
Yes
|
|
HotShoe/ PC terminal
|
Yes/ No
|
|
External Flash Compatibility
|
E-TTL II with EX series Speedlites, wireless optical multi-flash support
|
|
External Flash Control
|
Via camera menu screen
|
|
SHOOTING
|
|
Modes
|
Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control), Food, Kids, Candlelight, Creative Filters Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom
|
|
Picture Styles
|
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
|
|
Colour Space
|
sRGB and Adobe RGB
|
|
Image Processing
|
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination and Chromatic aberration correction
Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)
Creative filters (Art Bold, Water painting, Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye)
Multi Exposure
RAW image processing - during image Playback only Resize to M or S1, S2, S3
|
|
Drive modes
|
Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote), Silent single shooting, Silent continous shooting
|
|
Continuous Shooting
|
Max. Approx. 7fps. (speed maintained for up to 110 images (JPEG)(1)(7)(with UHS-I card), 25 images (RAW) with UHS-I card
|
| Intervalometer |
Built-in, number of shots selectable from 1-99 or unlimited, bulb timer possible |
|
LIVE VIEW MODE
|
|
Type
|
Electronic viewfinder with image sensor
|
|
Coverage
|
Approx. 100% (horizontally and vertically)
|
|
Frame Rate
|
30fps
|
|
Focusing
|
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Tracking Sensativity (-3 - +3) and Movie Servo AF Speed (-7 to +2)
|
|
Metering
|
Real-time evaluative metering with image sensor. Evaluative metering, partial metering, spot metering, centerweighted average metering, average metering.
|
|
Display Options
|
Grid overlay (x3), Histogram, Electronic Level
|
|
FILE TYPE
|
|
Still Image Type
|
JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant
|
|
RAW+JPEG simultaneous recording
|
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible
|
|
Image Size
|
JPEG 3:2: (L) 6000x4000, (M) 3984x2656, (S1) 2976x1984, (S2) 1920x1280, (S3) 720x480
JPEG 4:3: (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 1696x1280, (S3) 640x480
JPEG 16:9: (L) 6000x3368, (M) 3984x2240, (S1) 2736x1536, (S2) 1920x1080, (S3) 720x408
JPEG 1:1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1280x1280, (S3) 480x480
RAW: (RAW) 6000x4000, (M-RAW) 4500x3000, (S-RAW) 3000x2000
|
|
Movie Type
|
MOV / MP4 (Video: H.264 Intra frame / inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user)
|
|
Movie Size
|
1920 x 1080 (59.94,50 fps) intra or inter frame
1920 x 1080 (29.97,25,23.98fps) intra or inter frame
1920 x 1080 (29.97, 25 fps) inter frame
1280 x 720 (59.94,50 fps) inter frame
1280 x 720 (29.97, 25 fps) inter frame
|
|
Movie Length
|
Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically)
|
|
Folders
|
New folders can be manually created and selected
|
|
File Numbering
|
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
|
|
OTHER FEATURES
|
|
Custom Functions
|
26 Custom Functions
|
|
Metadata Tag
|
User copyright information (can be set in camera)
Image rating (0-5 stars)
|
|
LCD Panel / Illumination
|
Yes / Yes
|
|
Water/ Dust resistance
|
Yes
|
|
Sound Memo
|
No
|
|
Intelligent Orientation Sensor
|
Yes
|
|
Playback zoom
|
1.5x - 10x
|
|
Display Formats
|
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display
(8) Movie Edit
|
|
Slide Show
|
Image selection: All images, by Date, Folder, Movies, Stills
Playback time: 1/2/3/5/10/20 seconds
Repeat: On/Off
Background music: On/Off
Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
|
|
Histogram
|
Brightness: Yes
RGB: Yes
|
|
Highlight Alert
|
Yes
|
| Image Erase |
Single Image, Selected Images, Folder, Card |
|
Image Erase/Protection
|
Erase: Single image, All images in folder, Checkmarked images, unprotected images.
Protection: Erase protection of one image at a time
|
|
Menu Categories
|
(1) Shooting menu (x6)
(2) Playback menu (x3)
(3) Setup menu (x4)
(4) Custom Functions menu
(5) My Menu
|
|
Menu Languages
|
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
|
|
Firmware Update
|
Update possible by the user
|
|
INTERFACE
|
|
Computer
|
Hi-Speed USB
|
|
Other
|
Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack) Headphone Socket (Stereo Mini Jack) |
|
DIRECT PRINT
|
|
Canon Printers
|
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge |
|
PictBridge
|
Yes
|
|
STORAGE
|
|
Type
|
SD, SDHC or SDXC (UHS-I) card
|
|
SUPPORTED OPERATING SYSTEM
|
|
PC & Macintosh
|
Windows 10 / 8.1 / 7
OS X v10.9, v10.10, v10.11
|
|
SOFTWARE
|
|
Browsing & Printing
|
ImageBrowser EX
|
|
Image Processing
|
Digital Photo Professional 4.4.0 (Raw Image Processing)
|
|
Other
|
PhotoStitch, EOS Utility, Eos Lens Registration Tool, Eos Web Service Registration tool, Eos Sample MusicPicture Style Editor
|
|
POWER SOURCE
|
|
Batteries
|
Rechargeable Li-ion Battery LP-E6N (supplied), built in for date & settings
|
|
Battery life
|
Approx. 960 (at 23°C, AE 50%, FE 50%)
Approx. 860 (at 0°C, AE 50%, FE 50%)
|
|
Battery Indicator
|
6 levels + percentage
|
|
Power saving
|
Power turns off after 1, 2, 4, 8, 15 or 30min
|
|
Power Supply & Battery Chargers
|
AC Adapter AC-E6N, DC Coupler DR-E6 Battery charger LC-E6, Car Battery charger CBC-E6
|
|
PHYSICAL SPECIFICATIONS
|
|
Body Materials
|
Polycarbonate resin with glass and conductive fibre
|
|
Operating Environment
|
0 – 40 °C, 85% or less humidity
|
|
Dimensions (WxHxD)
|
139.0 x 105.2 x 78.5mm
|
|
Weight (body only)
|
Approx. 730g (CIPA testing standard, including battery and memory card)
|
|
ACCESSORIES
|
|
Viewfinder
|
Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C
|
|
Case
|
Leather case EH21-L
|
|
Wireless File Transmitter
|
Built in, Connectivity to Smart devices possible wiht Android Version 4 .0-4.4/5.0-5.1 or iOS7.1/8-8.3
NFC connectivity is possible only with compatible Android devices
Remote Wifi operation of EF-S 18-135mm f3.5-5.6 ISUSM via optional Power Zoom adapter PZ-E1 only possible with the 80Dusing comaptible smart devices or when using supplied Eos Utlilty software
All EF and EF-S lenses
|
|
Lenses
|
All EF and EF-S lenses
|
|
Flash
|
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter STE3-RT)
|
|
Battery Grip
|
BG-E14
|
|
Remote Controller/ Switch
|
Remote Switch RS-60E3, Remote Controller RC-6
|
|
Other
|
Hand Strap E2, GP-E2
|
