Swarovski STX Eyepiece Module

Our Price: £1,799.00

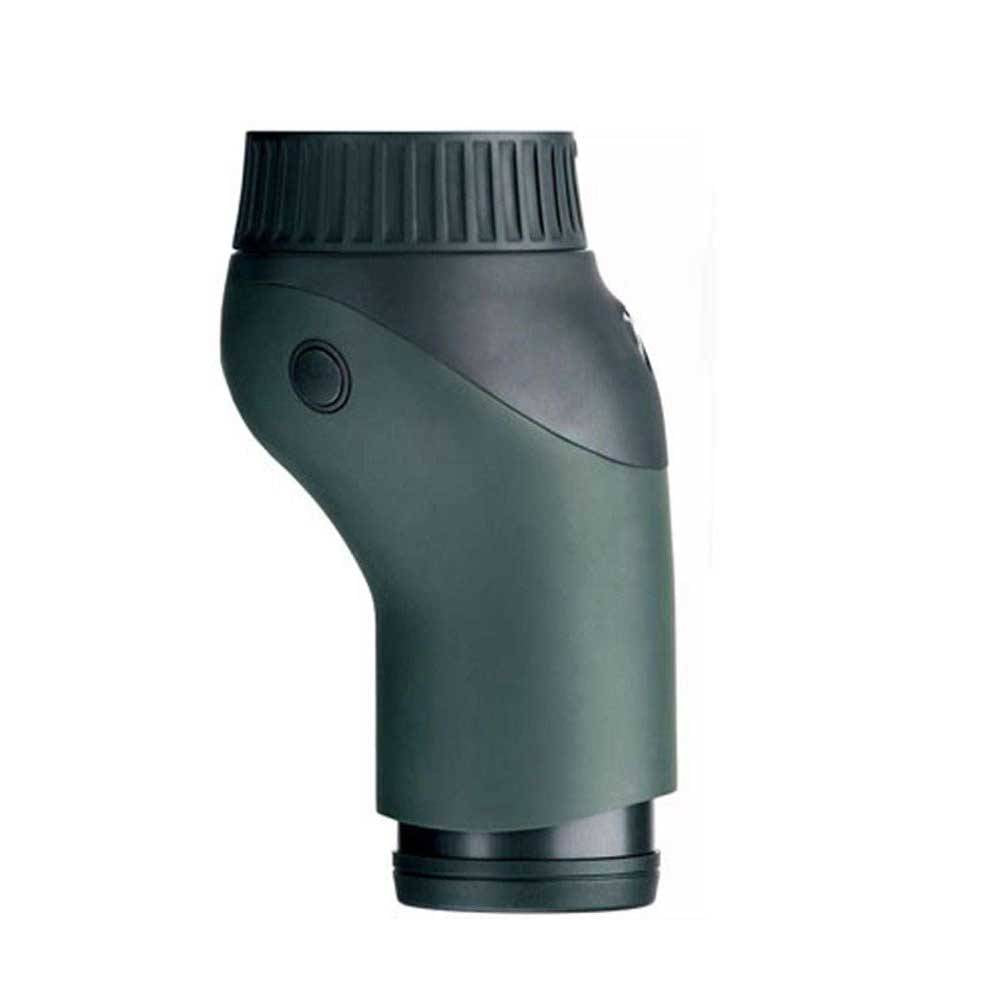

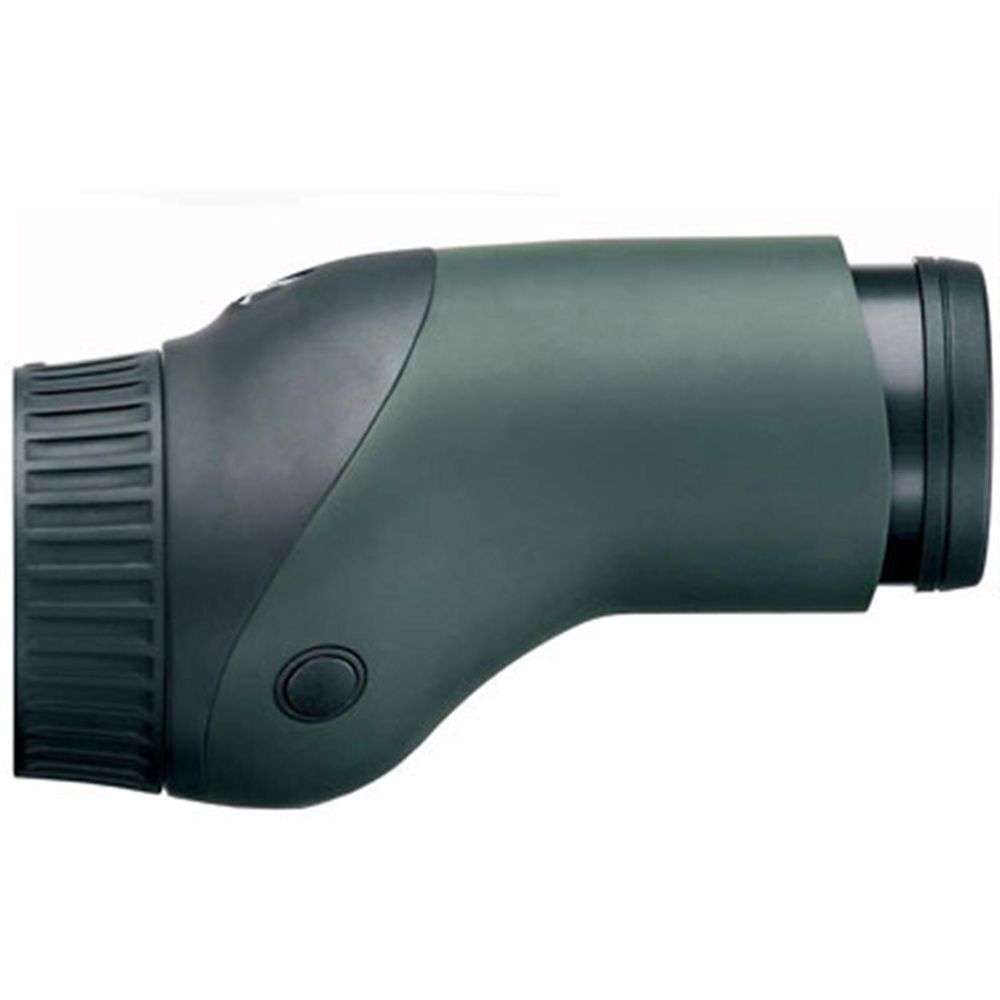

Swarovski STX Eyepiece Module

Product Code: TM-1M3K20-0
Barcode: 9006325073676

Our Price:

£1,799.00

RRP: £2,150.00

2 In Stock for Home Delivery
See Click & Collect locations
  • Magnification Upto 30-70x
  • Straight Modular Zoom Eyepiece
  • Designed for STX/ATX Observation Scopes
  • Excellent Resolution and Contrast
  • Long Eye Releif
  • Twistable Removeable Eyecup

Sheffield Store

Monday to Saturday 10am - 6pm

Harrison Cameras, 112-114 London Road, Sheffield, S2 4LR

Free UK Delivery

Free standard delivery to UK Mainland on all orders over £50

DPD Next Working Day and Saturday delivery also available when ordered before 2pm Mon-Fri

Sell or Part-Exchange

Have equipment to trade in? We want your old cameras, lenses and accessories. Part-exchange against a new camera, or sell your gear and get paid by secure bank transfer

Get in touch for your free, no obligation quote.

Product Description

The zoom Swarovski STX Eyepiece is the straight version of the eyepieces Swarovski manufacture which are fitted onto any of the latest Swarovski 65mm, 85mm or 95mm objective bodies to complete the scope for an amazing piece of kit which is perfect for endless nature viewing.

The coatings on the STX Eyepiece, developed by Swarovski, have been designed to help with light input, colour fringing and edge to edge quality. Swarovision© along with the fluoride HD lenses flattens the image for edge to edge detail significantly thereby decreasing annoying chromatic aberations that can spoil an image. Swarobright© is a set of dielectric mirror coatings which increase the amount of light onto the eye and then the Swaroclean© coating helps to repel dust and dirt and limits the amount of water resisdue on the external optics that can distort an image or create annoying marks on the outside of the lenses.

The straight STX Eyepiece has been designed for maximum comfort, offering a wide field of view and excellent eye relief, so it is easy to locate wildlife no matter how far away. The rubber surround fits comfortably to the eye and protects spectacle wearers from scratching their lenses.

Mounted with either the 65 or 85 scope, the STX Eyepiece has a magnification range of 25-60x. However when is is mounted on the ATX-95 model, the magnification range is 30-70x.

Product Specification

Magnification: 25X Ø65mm     25X Ø85mm  30X Ø95mm
Effective Objective Lens Diameter: Ø65mm Ø85mm  Ø95mm
Exit Pupil Diameter: 2.6-1.1mm 3.4-1.4mm 3.2-1.4mm

Exit Pupil Distance: 20mm 20mm 20mm

Field of View: (m/1000 m/ft/1000yds) 41-23/124-68 41-23/124-68

35-19/104-57

Apparent Field of View: 57-71° 57-71°

57-71°

Shortest Focus Distane (m/ft) 2.1/6.9 3.6/11.8

4.8/15.7

Dioptre Adjustment: +- 5 +- 5

+- 5

Light Transmission: 86% 86%

86%

Coatings: Swarotop,Swarodur,Swaroclean Swarotop,Swarodur,Swaroclean

Swarotop,Swarodur,Swaroclean

Focal Length: 750-1800mm 750-1800mm 900-2100mm
Objective Filter Thread: M67x0.75 M87x0.75

M97x0.75

Length (mm/in) 339/367mm/13.3/14.4in 372/400mm/14.6/15.7in

426/454mm/16.8/17.9in
