Swarovski BTX Binocular Eyepiece Module

Our Price: £2,415.00

Swarovski BTX Binocular Eyepiece Module

Product Code: TM-1M3L20-0
Barcode: 9006325081404

Our Price:

£2,415.00

1 In Stock for Home Delivery
See Click & Collect locations
  • Compatible with Swarovski Objective Module
  • Easy To Fit
  • Comfortable to Use
  • Works Like a Binocular
  • Comfortable Head Rest

Sheffield Store

Monday to Saturday 10am - 6pm

Harrison Cameras, 112-114 London Road, Sheffield, S2 4LR

Free UK Delivery

Free standard delivery to UK Mainland on all orders over £50

DPD Next Working Day and Saturday delivery also available when ordered before 2pm Mon-Fri

Sell or Part-Exchange

Have equipment to trade in? We want your old cameras, lenses and accessories. Part-exchange against a new camera, or sell your gear and get paid by secure bank transfer

Get in touch for your free, no obligation quote.

Product Description

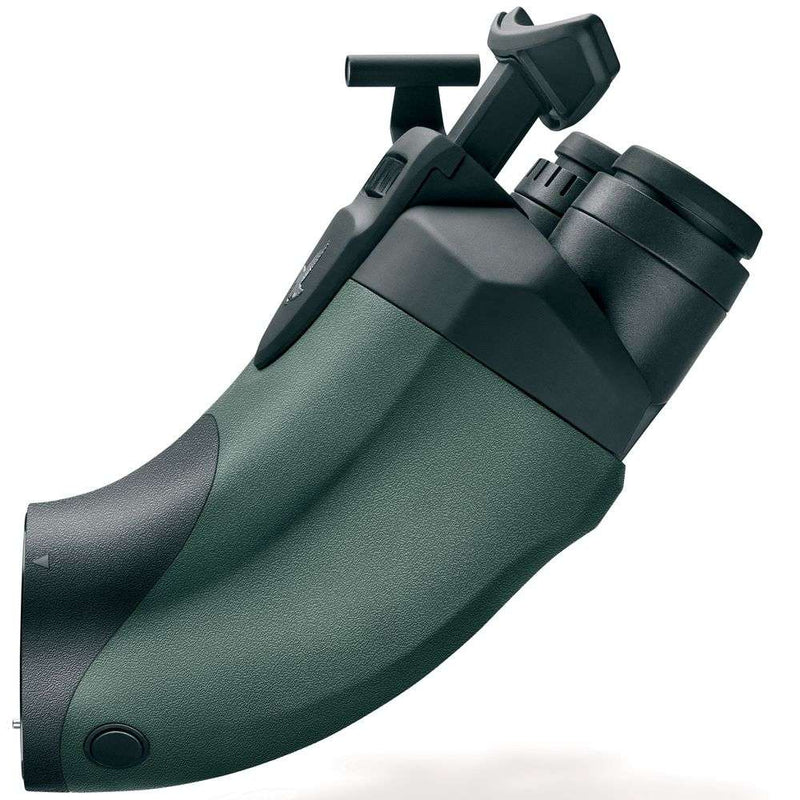

Swarovski BTX Binocular Eyepiece Module

Swarovski have taken bird watching to a new dimension with their BTX eyepeice which offers binocular vision rather than the single monocular eyepiece that can be found on most spotiing scopes. Manufactured to Swarovski's usual high standard, the non-zoom BTX eyepiece fits onto the body of the Swarovski objective lenses in exactly the same way as the standard single eyepieces fit. Slightly easier to use, the head can rest on the forehead resting arm which makes it more comfortable for long periods of viewing and the 30x magnification (35x on the 95mm) gets you close to the action.

Field flattener lenses, flatten the image making sure its pin sharp right to the edge and the high qulaity HD lenses are flouride filled to enhance the colour fidelity and reduce the colour fringing that reduces image quality. The large field of view ensures that the scope is easy to use and can locate the subject quickly and without too much searching around. The adjustable head rest, really helps when using the scope for long periods and the two fins on the eyepieces make adjusting the interpillary distance really fast. There is a 1.7X extender available (sold seperately) which increases magnification by a factor of 1.7 and it is easily attached between the objective lens and the eyepiece.

The aiming aid on the Swarovski BTX eyepiece has been designed to work fast at high magnification, when it can be difficult to focus on the desired object, due to a narrower field of view. The circle helps to zone in on the subject which is then seen simultaneously in the BTX field of view . If you don't want to use the aiming aid, it can simply be removed.

SWAROVSKI OPTIK BTX Video Tutorial: Set Up and Features

Product Specification

Magnification: 30X Ø65mm     30X Ø85mm  35X Ø95mm
Effective Objective Lens Diameter: 65m 85mm 95mm
Exit Pupil Diameter: 2.2mm 2.9mm 2.7mm
Exit Pupil Distnce: 21mm 21mm 21mm
Field of View: (m/1000 m/ft/1000yds) 38/112 37/112

32/96

Apparent Field of View: 60° 60°

60°

Shortest Focus Distane (m/ft) 2.2/7.2 3.8/12.5

5/16.4

Dioptre Adjustment: +- 4 +- 4

+- 4

Interpupillary Distance (mm/in) 56-72/2.2-2.9 56-72/2.2-2.9

56-72/2.2-2.9

Objective Filter Thread: M67x0.75 M87x0.75

M97x0.75

Length (mm/in) 371/14.6 404/15.90

458/18
