Swarovski ATX Eyepiece Module

Our Price: £2,045.00

Swarovski ATX Eyepiece Module

left arrow for image selection
right arrow for image selection

Product Code: TM-1M3H20-0
Barcode: 9006325073669

Our Price:

£2,045.00

1 In Stock for Home Delivery
See Click & Collect locations
  • Angled Zoom Eyepiece
  • Simple To Fix
  • Offers Bright, Sharp Optics
  • Compatible with 65, 85 and 95 Objective
  • Varying Zoom in relation to Objective Used

Sheffield Store

Monday to Saturday 10am - 6pm

Harrison Cameras, 112-114 London Road, Sheffield, S2 4LR

Free UK Delivery

Free standard delivery to UK Mainland on all orders over £50

DPD Next Working Day and Saturday delivery also available when ordered before 2pm Mon-Fri

Sell or Part-Exchange

Have equipment to trade in? We want your old cameras, lenses and accessories. Part-exchange against a new camera, or sell your gear and get paid by secure bank transfer

Get in touch for your free, no obligation quote.

Product Description

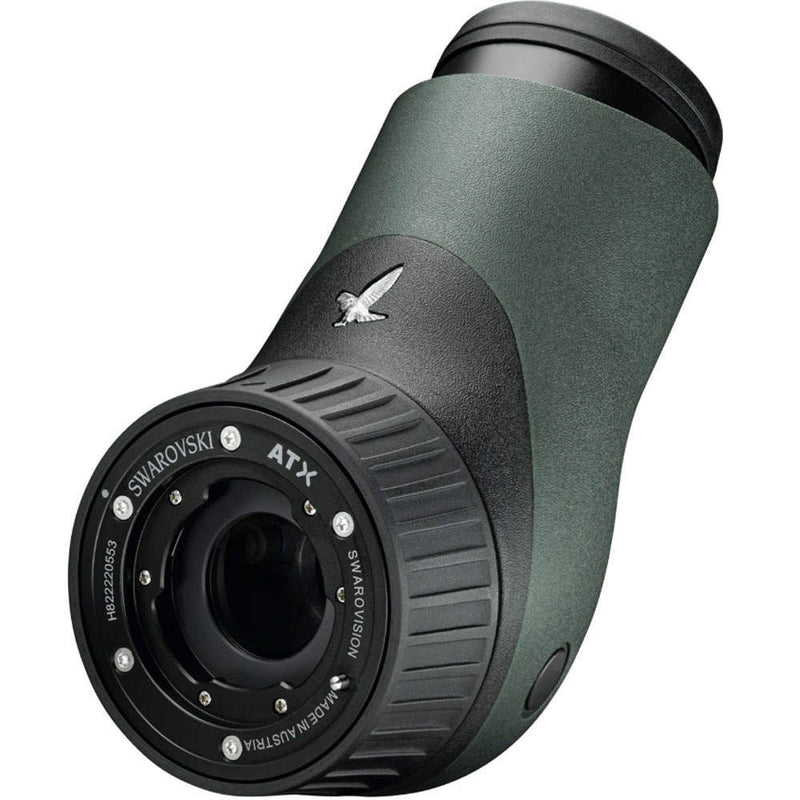

Swarovski ATX Eyepiece Module

A versitile way of buying a spotting scope, the zoom Swarovski ATX Eyepiece is the angled version of the eyepieces Swarovski manufacture to be fitted onto any of the Swarovski 65mm, 85mm or 95mm objective bodies to complete the scope for an amazing piece of kit which is perfect for endless nature viewing.

Please note that you will need an objective module to use the Swarovski ATX Eyepiece.

Simply choose between the ATX (angled) or the STX (straight) zoom eyepiece both of which have the legendary coatings, developed by Swarovski, to help with light input, colour fringing and edge to edge quality. Swarovision© along with the fluoride HD lenses flattens the image for edge to edge detail significantly thereby decreasing annoying chromatic aberations that spoil the image. Swarobright© is a system of dielectric mirror coatings which allow more light onto the eye and then the Swaroclean© helps to repel dust and dirt and limits the amount of water resisdue that can distort an image or create annoying marks on the outside of the lenses.

The ATX eyepiece has been designed for maximum comfort, offering a wide field of view and excellent eye relief. The rubber surround fits comfortably to the eye and protects spectacle wearers from scratching their lenses.

Mounted with either the 65 or 85 scope, this zoom eyepiece has a magnification range of 25-60x. However when is is mounted on the ATX-95 model, the magnification range is 30-70x.

Video Tutorial: Swarovski Optik ATX/STX Spotting Scopes:

Product Specification

Magnification: 25X Ø65mm     25X Ø85mm  30X Ø95mm
Effective Objective Lens Diameter: Ø65mm Ø85mm  Ø95mm
Exit Pupil Diameter: 2.6-1.1mm 3.4-1.4mm 3.2-1.4mm

Exit Pupil Distance: 20mm 20mm 20mm

Field of View: (m/1000 m/ft/1000yds) 41-23/124-68 41-23/124-68

35-19/104-57
Apparent Field of View: 57-71° 57-71°

57-71°
Shortest Focus Distane (m/ft) 2.1/6.9 3.6/11.8

4.8/15.7
Dioptre Adjustment: +- 5 +- 5

+- 5
Light Transmission: 86% 86%

86%
Coatings: Swarotop,Swarodur,Swaroclean Swarotop,Swarodur,Swaroclean

Swarotop,Swarodur,Swaroclean
Focal Length: 750-1800mm 750-1800mm 900-2100mm
Objective Filter Thread: M67x0.75 M87x0.75

M97x0.75
Length (mm/in) 339/367mm/13.3/14.4in 372/400mm/14.6/15.7in

426/454mm/16.8/17.9in
