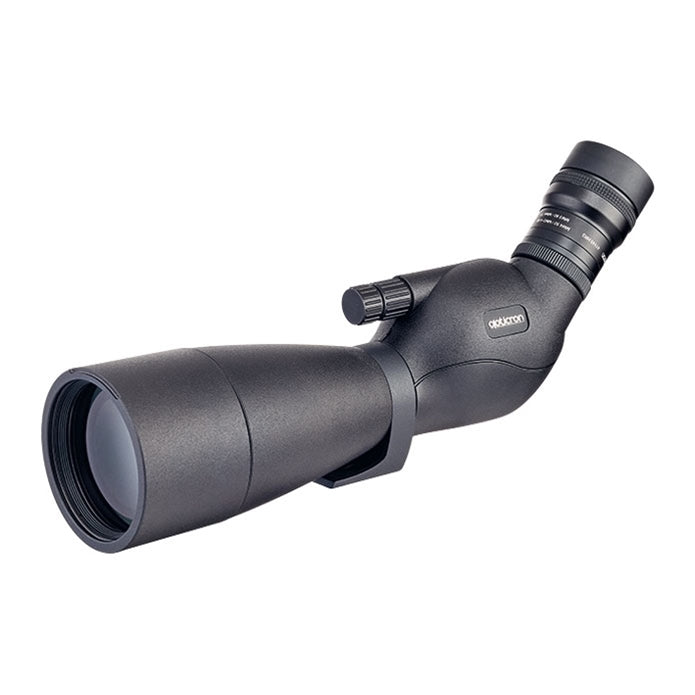

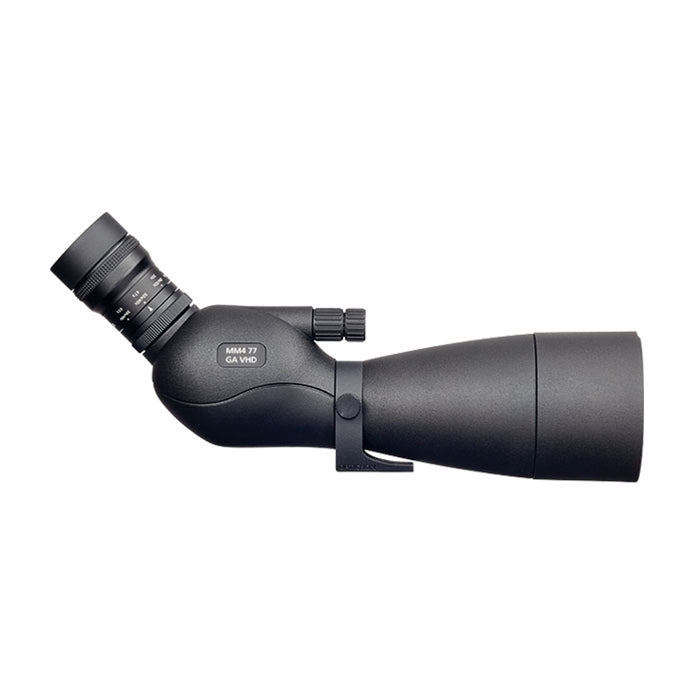

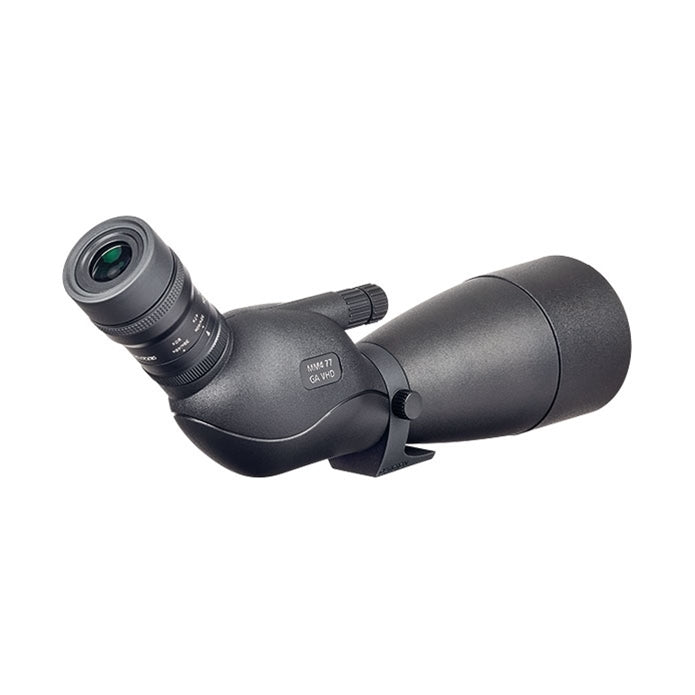

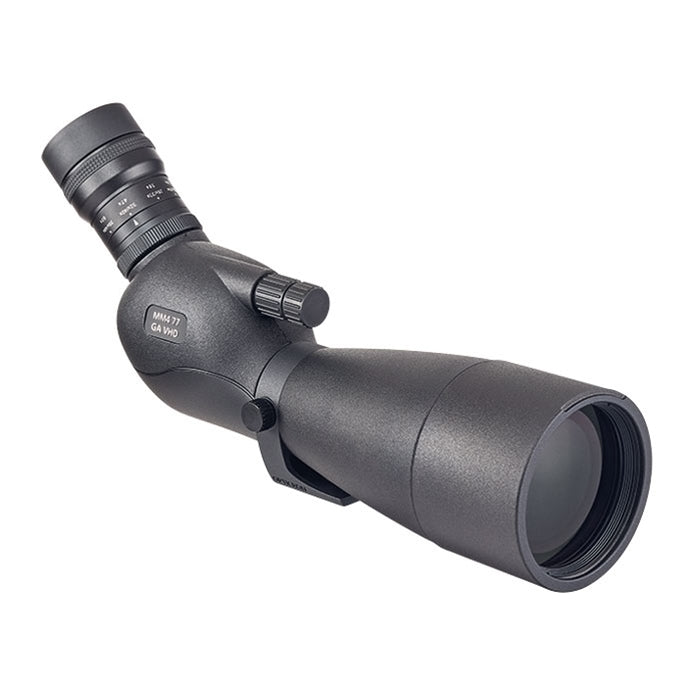

Opticron MM4 77 GA VHD Angled Scope With HR3 20-60x Eyepiece

Our Price: £799.00

Opticron MM4 77 GA VHD Angled Scope With HR3 20-60x Eyepiece

left arrow for image selection
right arrow for image selection

Product Code: 41385
Barcode: 5036422413857

Our Price:

£799.00

1 In Stock for Home Delivery
See Click & Collect locations
  • 77mm VHD APO lens design
  • Fully multi-coated optical system
  • Lightweight polycarbonate and alloy body
  • Fully protected in soft touch textured rubber armour
  • Nitrogen waterproof
  • Wide wheel focuser with accurate 9:1 ratio dual focus system
  • Retractable lens hood
  • Integrated objective lens cover
  • Large footprint +/- 90° rotating tripod sleeve

Product Description

MM4 77 VHD Fieldscopes are the latest evolution of the MM4 concept pioneered and developed by us to meet demand for high performance lightweight space saving equipment.

Designed & manufactured in Japan, the latest VHD optical system incorporates an FCD 100 glass objective lens element with refractive properties similar to Fluorite crystal. The result is reduced CA and improved colour saturation over standard ED helping the models deliver a new benchmark for resolution and colour contrast.

What makes the MM4 77 exceptional is the size and weight of the package. The fully rubber armoured 77 GA VHD/45 with HR3 20-60x is just 375mm/14.8” long and weighs 1687g/59.5oz. These figures read like a 65mm which is unable to deliver the optical performance of this 80mm class device.

Compatible with SDL, HDF, HR and MM3 eyepieces, existing owners can use their eyepieces with MM4 77 Fieldscopes.

Supplied Accessories

MM4 77 GA VHD Fieldscope kits are supplied with eyepiece and integrated objective lens cover

Product Specification

Colour Black
Body Type 45 deg angled
Size 77
Lens Dia. (mm) 77
Close Focus (m) 5.5
Eye Relief (mm) 20~16
Waterproof Yes
Prism Type Porro
Tripod Sleeve & Mount Rotating Sleeve
Length (mm) 375
Width (mm) 162
Depth (mm) 95
Dimensions LxWxD (mm) 375x162x95
Weight (g) 1687
