Kaiser RSP autoDrive 1.5 Column

Product Description

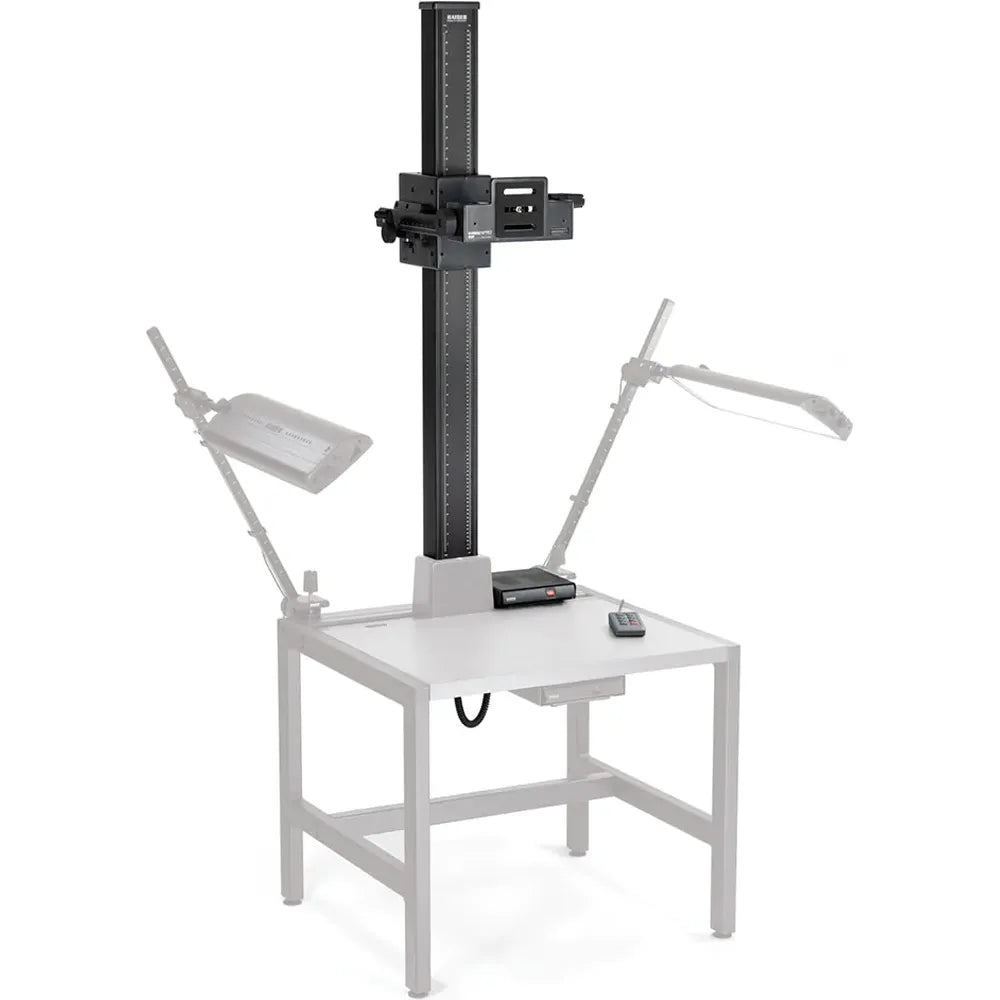

The Kaiser RSP autoDrive 1.5 Column offers professional motorised height adjustment for camera carriers in rePRO copy systems. Operable via PC, laptop, or cable remote, height positions can be stored and recalled with approximately 0.01 mm repeat accuracy, ensuring precise and reproducible results.

Robust and Reliable Construction

The column is made from multi-chamber special aluminium, matt black anodised, with printed cm and inch scales. A self-limiting worm-gear securely holds any height position, while automatic magnetic limit stops prevent over-travel. The camera carrier moves horizontally via parallel guides with friction drive and can tilt ±90° for flexible alignment.

Flexible Operation

Hand cranks allow right- or left-hand operation, and two locking screws secure the camera carrier. A built-in spirit level ensures accurate setup. The mounting plate accepts standard 1/4” or 3/8” threads, making it compatible with a wide range of cameras. The system can be mounted on rePRO Table Frames, Wall Mounts, or Base units.

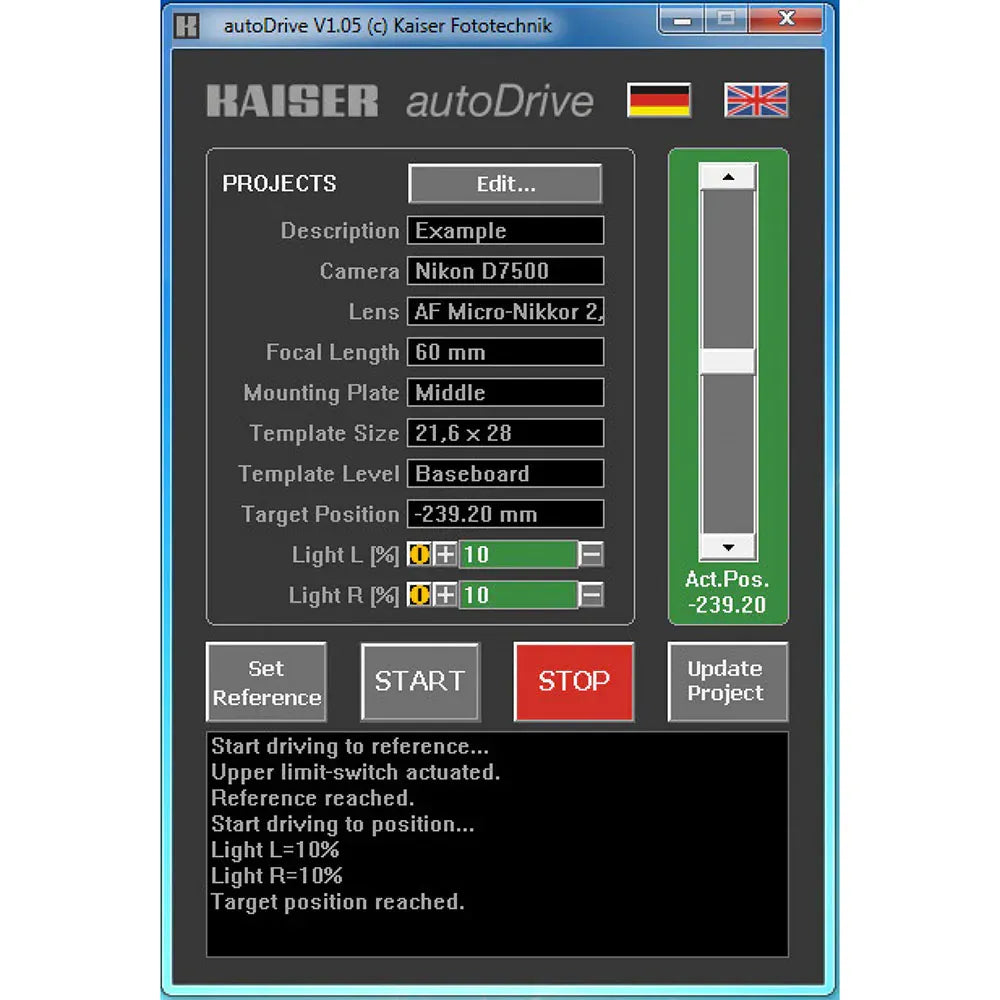

Kaiser autoDrive Software

The included “Kaiser autoDrive” software enables computer-controlled height adjustment and brightness control for RB 570 AX LED lighting. Up to 500 projects can be saved, including height and lighting settings. Visual indicators show current and target positions, and emergency stop functions are available via software, keyboard, or remote control.

Specifications

• Column height: 150 cm (59.1 in.)
• Cross-section: 12 x 8 cm (4.7 x 3.1 in.)
• Maximum load: approx. 15 kg (33 lbs.)
• Mounting thread: 1/4” / 3/8” exchangeable
• Height adjustment: motorised/computerised

What's Included

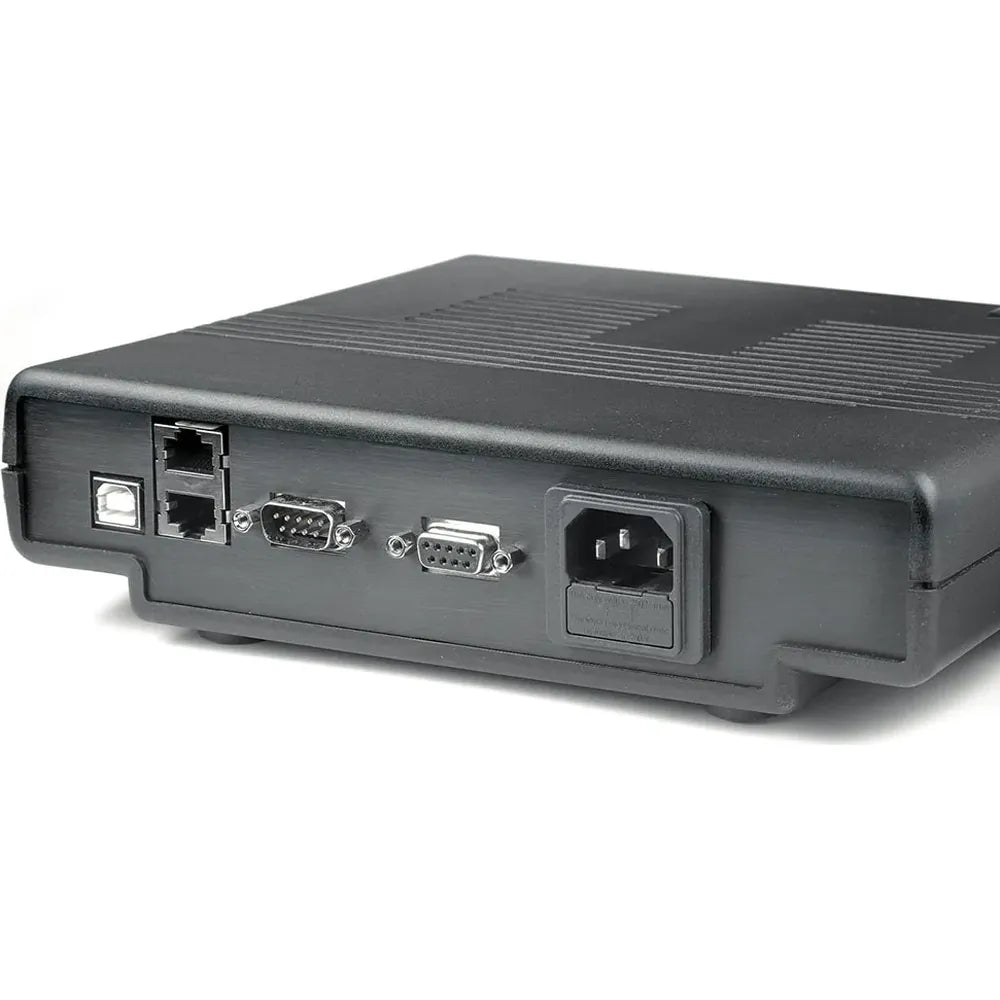

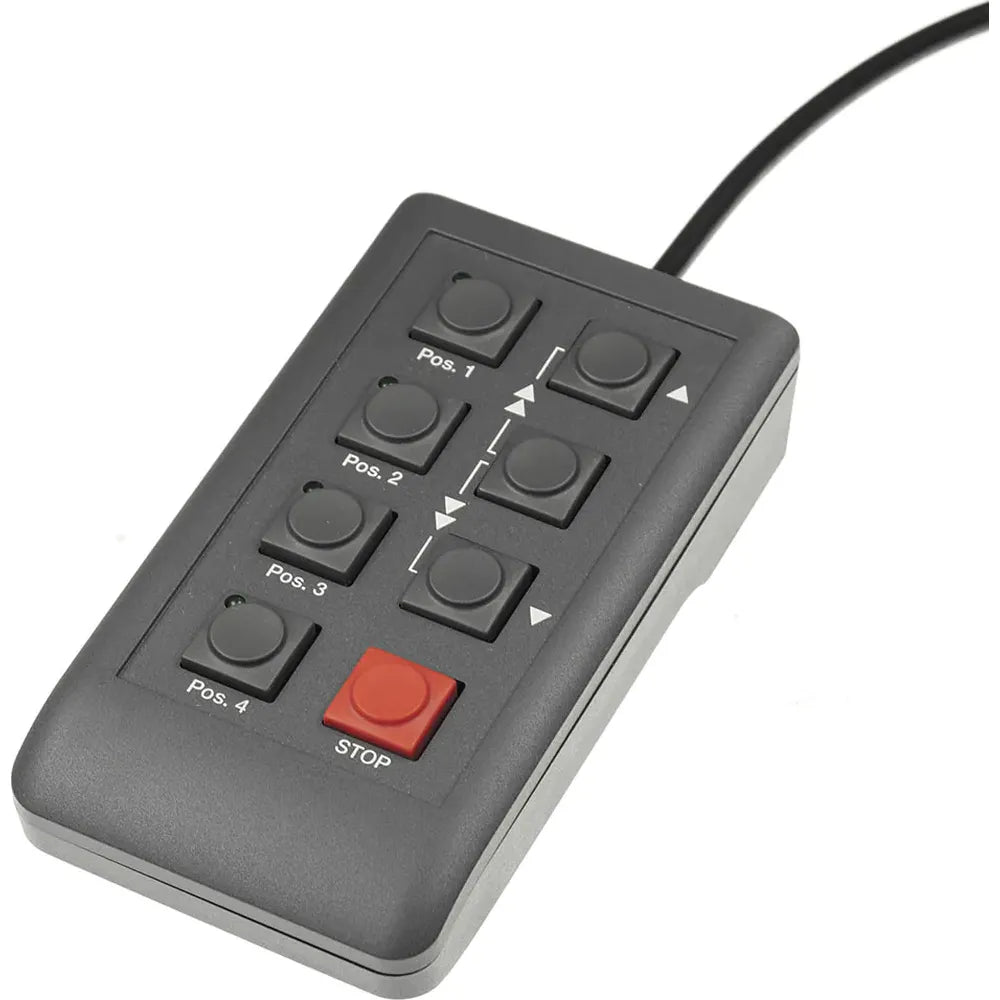

Includes column with camera carrier, control unit, cable remote control, connection cables, mounting accessories, and control program on USB stick.
