Kaiser RSP 2motion Copy Stand

Our Price: £8,999.00

Kaiser RSP 2motion Copy Stand

left arrow for image selection
right arrow for image selection

Product Code: K5710
Barcode: 4001072057103

Our Price:

£8,999.00

Special Order
 Ordered upon request
See Click & Collect locations

This item is ordered from our supplier on request. After you place your order we'll contact you as soon as we have an approximate delivery time

  • Motorised camera carrier and base plate
  • Supports originals up to 100 × 80 cm
  • Extremely sturdy anodised aluminium column
  • Detachable aluminium baseboard with stabiliser
  • Horizontal carrier adjustment with hand-crank
  • Camera plate tiltable ±90°
  • Built-in spirit level for alignment
  • Two travel speeds, load-independent
  • Self-limiting worm gear holds height

Product Description

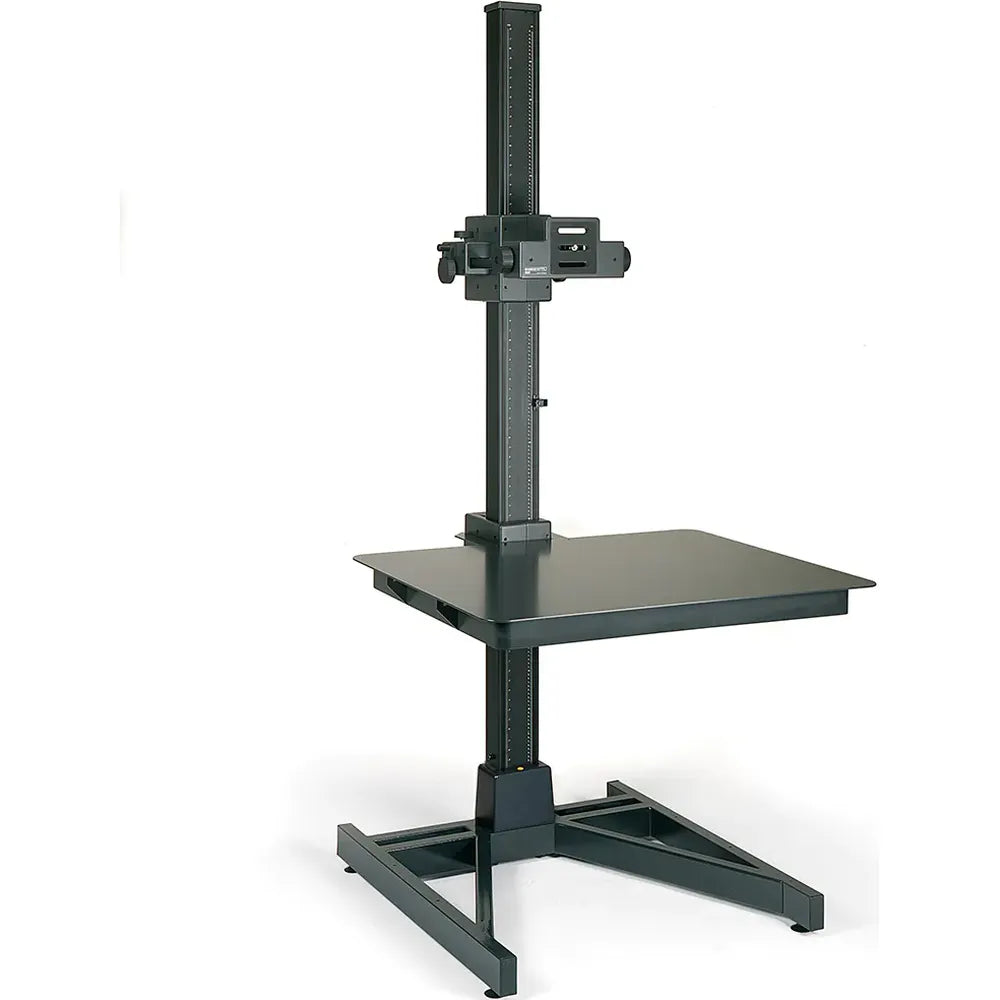

The Kaiser RSP 2motion Copy Stand is a heavy-duty professional system for analogue and digital image capturing. It features a motorised camera carrier and a height-adjustable motorised base plate, allowing precise work with originals up to 100 × 80 cm (39.4 × 31.5 in.).

Construction

The stand has an extremely sturdy column made from multi-section special extrusion, finished in black anodised aluminium, with printed centimetre and inch scales. The column foot is reinforced with double-strutted steel tubing and a steel socket for bolting, with four levelling feet for stability. The detachable base board is 4 mm aluminium with a stabilising substructure, supporting large originals securely.

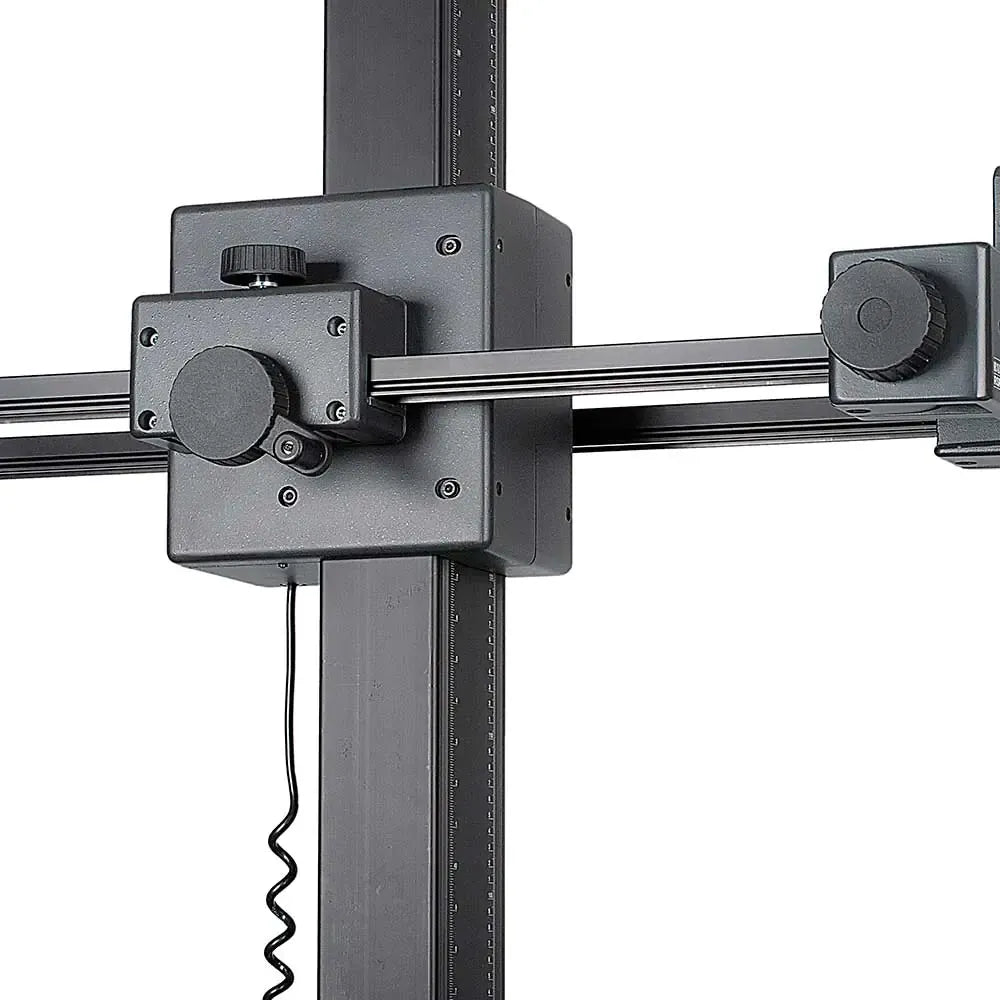

Camera Carrier

The camera carrier is crafted from die-cast aluminium and is horizontally adjustable via parallel guides with friction drive. Hand cranks allow right- or left-hand operation. Two blocking screws secure the carrier, while the camera mounting plate tilts ±90° and includes a built-in spirit level for precise alignment.

Motorised Features

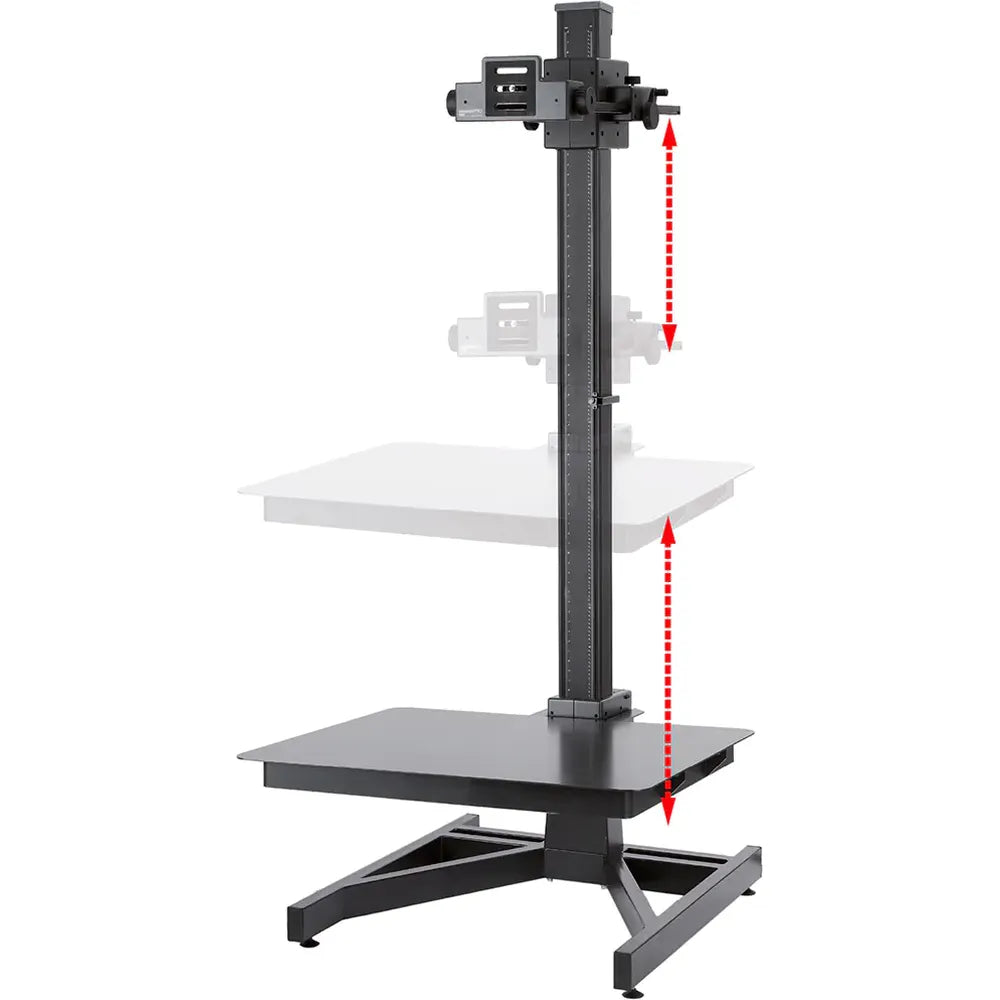

Both the camera carrier and base board feature motorised height adjustment. Two travel speeds operate independently of load. A self-limiting worm gear holds any height position precisely. Automatic magnetic end switches and an anti-collision device protect the system. Operation is controlled via a convenient cable remote.

Key Features

  • Camera carrier and base board with individual motorised height adjustment
  • Two travel speeds, independent of load
  • Self-limiting worm gear holds any height position
  • Automatic end switch by magnet sensor
  • Anti-collision device
  • Cable remote control

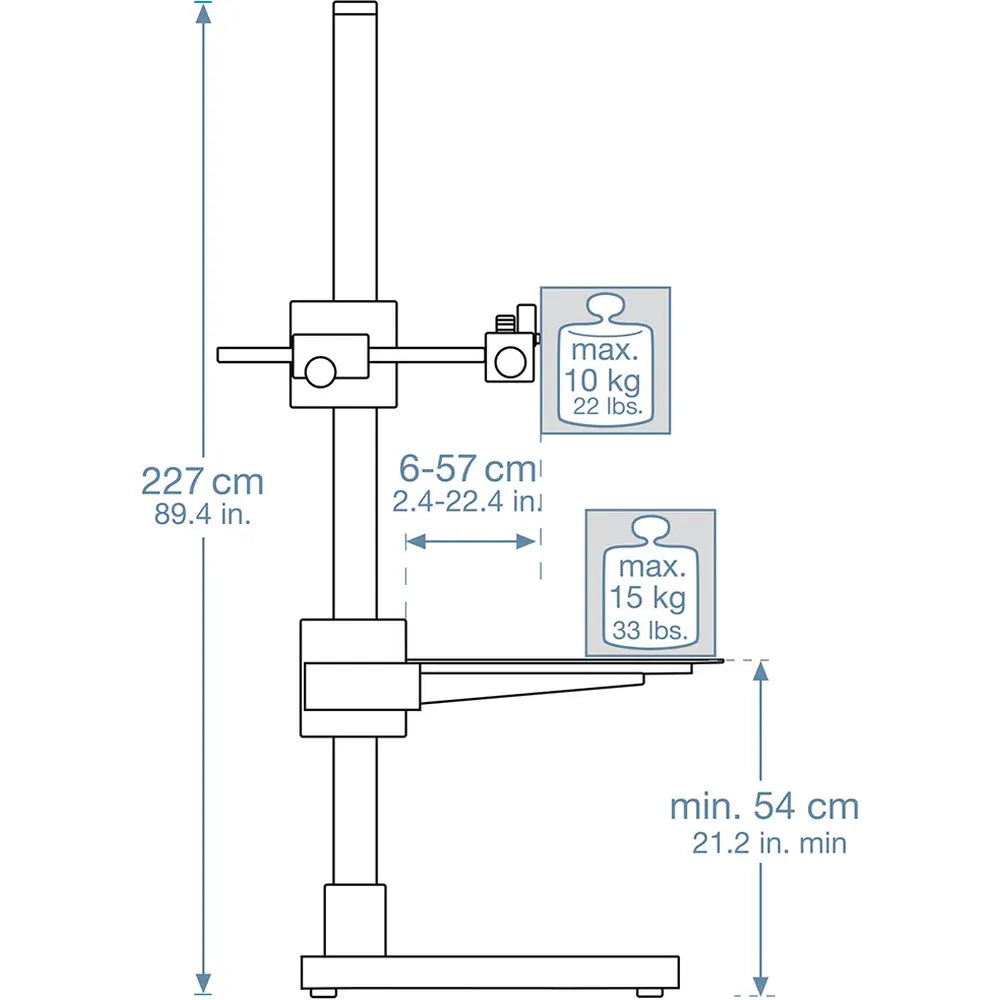

  • Total height: 227 cm (89.4 in.)
  • Maximum working span: 160 cm (63 in.)
  • Column cross section: 120 × 80 mm (4.7 × 3.1 in.)
  • Maximum load: camera carrier 10 kg (22 lbs), base board 15 kg (33 lbs)
  • Baseboard: 100 × 80 cm (39.4 × 31.5 in.)
  • Camera platform: 13 × 13 cm (5.1 × 5.1 in.)
  • Interchangeable connecting thread: 1/4“ / 3/8“
  • Required floor space: 100 × 126 cm (39.4 × 49.6 in.)
