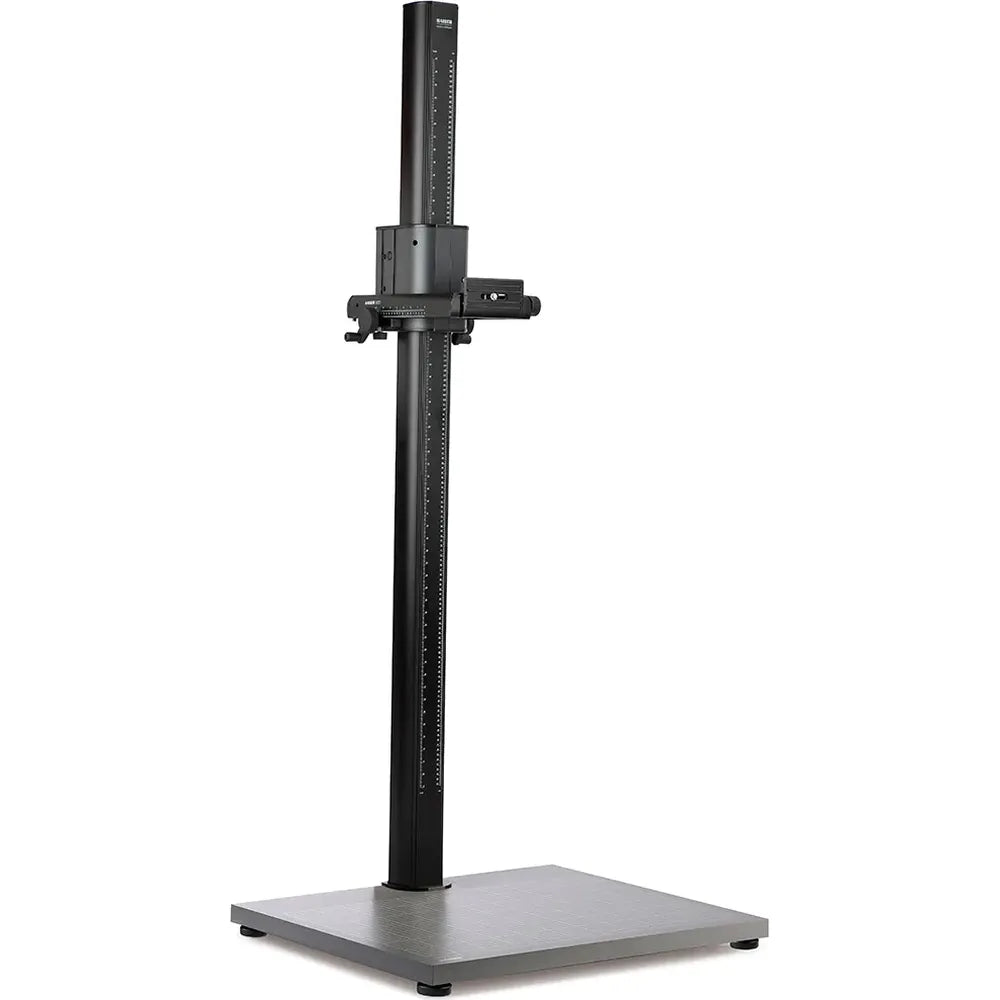

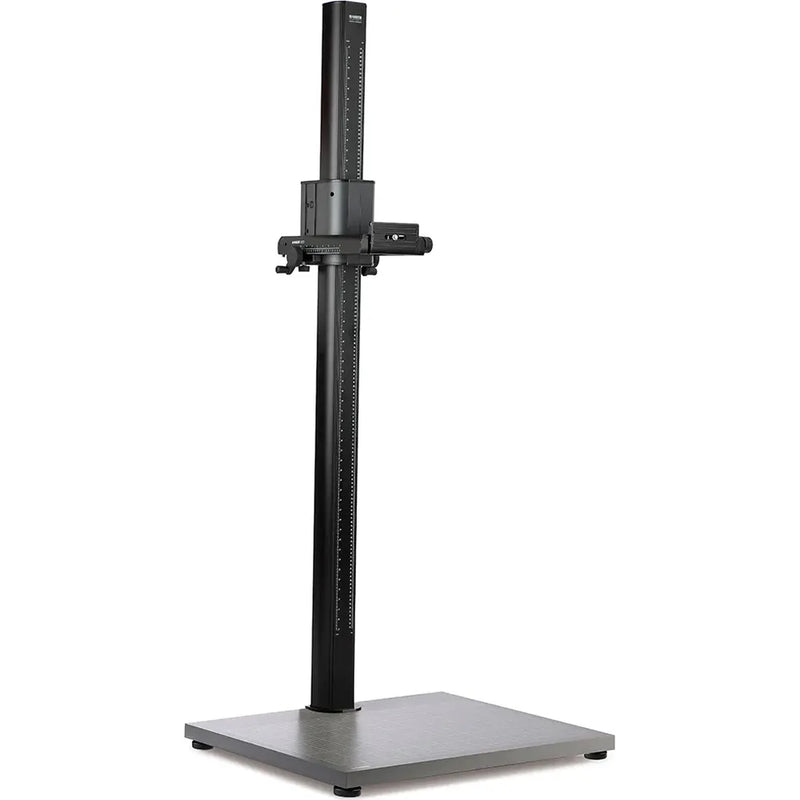

Kaiser RSD mot Copy Stand with Base Plate

Product Description

The Kaiser RSD mot Copy Stand is built for professional photographic and copy work, featuring a durable multi-section aluminium column with a matt black anodised finish and clear cm and inch scales.

Camera Carrier

Made from aluminium, the camera carrier slides horizontally over approximately 25 cm (9.8 in.) using smooth rack-and-pinion parallel guides. It can be operated with either hand and includes two locking screws to prevent accidental movement. The camera mounting plate tilts ± 90° and has a horizontally adjustable connecting screw for flexible positioning.

Motorised Height Adjustment

Height adjustment is motorised with two speeds and controlled via a cable remote. It offers constant speed regardless of load and features automatic end switches operated by magnetic sensors to protect the system.

Base Plate

The large, matt grey, non-reflective base plate measures 900 x 38 x 730 mm (35.4 x 1.5 x 28.7 in.) and includes a printed grid with cm and inch scales. Adjustable feet and an integrated spirit level ensure perfect alignment on any surface.

Specifications

• Column height: 1.80 m (5.9 ft.)
• Column cross-section: 105 x 74 mm (4.1 x 2.9 in.)
• Loading capacity: 8 kg (17.6 lbs)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• Reversible mounting thread: 1/4” / 3/8” interchangeable
