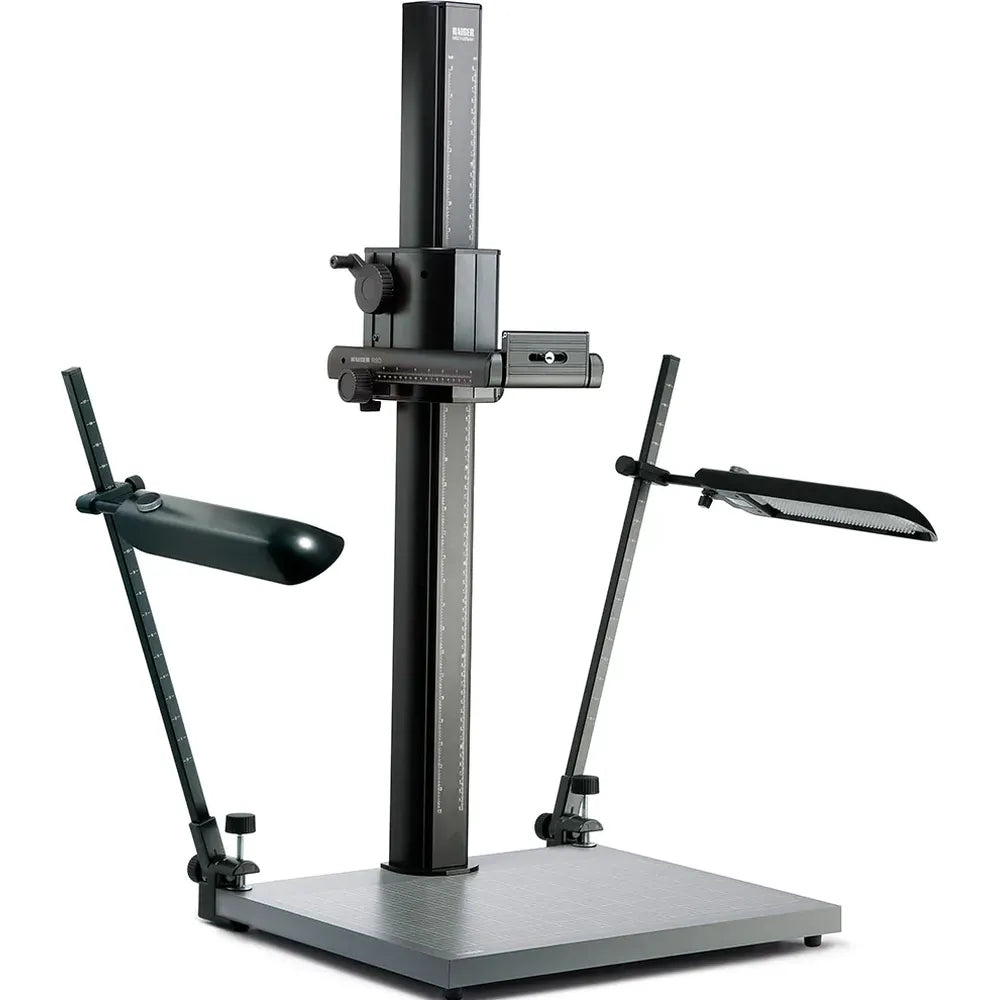

Kaiser RSD Copy Stand with Base Plate - 68 x 3.8 x 57cm

Product Description

The Kaiser RSD Copy Stand features a robust column made from matt black anodised aluminium multi-section tubing, complete with clear cm and inch scales for precise measurement.

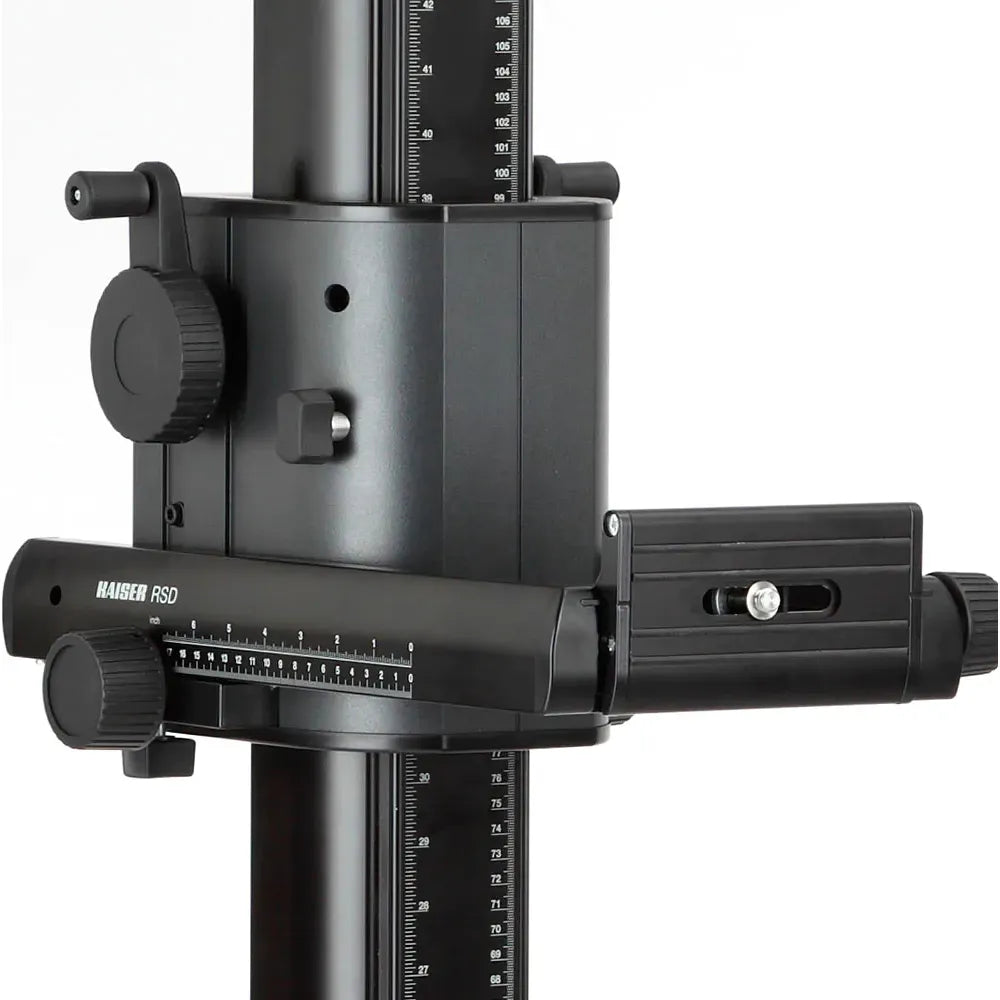

Camera Carrier

The aluminium camera carrier can be horizontally adjusted over approximately 16 cm (6.3 in.) using smooth rack-and-pinion parallel guides. It supports both left- and right-hand operation and includes two blocking screws to prevent accidental movement. The camera mounting plate tilts ± 90°, with a horizontally adjustable connecting screw for flexible positioning.

Height Adjustment and Base Plate

Height adjustment is manual via a hand crank, assisted by a built-in coil spring for counterbalance. A blocking screw stops unintended height changes. The large matt grey, non-reflective base plate measures 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.) and features a printed grid with cm and inch scales. Adjustable feet and a built-in spirit level ensure perfect stability and alignment.

Specifications

• Base plate: 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.)
• Column height: 1.20 m (3.9 ft.)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
• Loading capacity: 8 kg (17.6 lbs)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• Reversible mounting thread: 1/4” / 3/8” interchangeable
• Hand-cranked height adjustment with coil spring counterbalance
• Rack-and-pinion system with blocking screw
• Built-in spirit level
