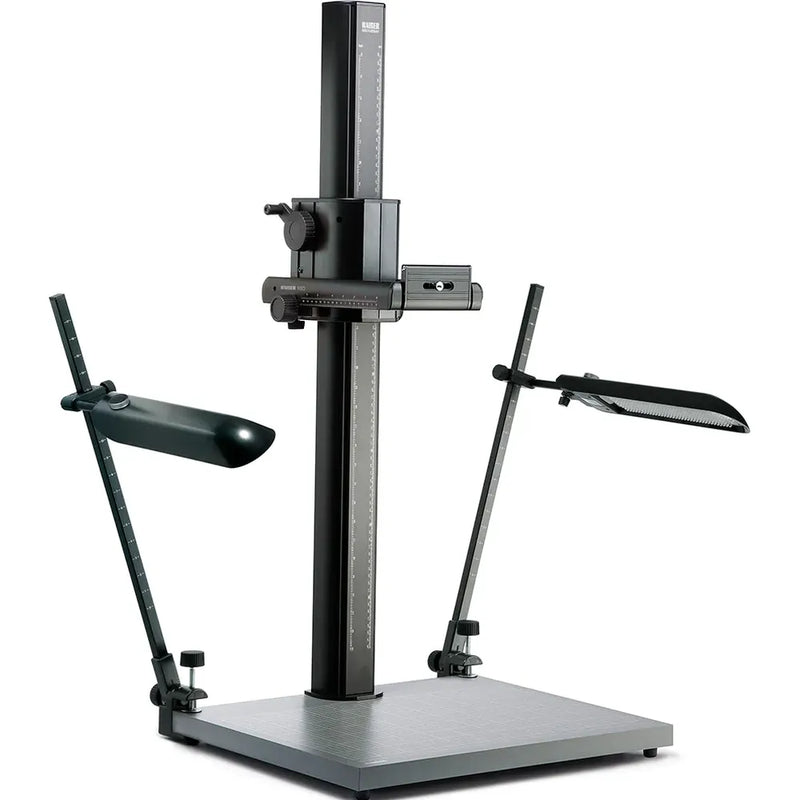

Kaiser RSD Copy Stand with Base Plate - 68 x 3.8 x 57cm - Cable Controlled

Product Description

The Kaiser RSD Copy Stand features a sturdy column made from matt black anodised aluminium multi-section tubing, marked with both cm and inch scales for precise height measurement.

The aluminium camera carrier allows horizontal adjustment over approximately 16 cm (6.3 in.) via smooth rack-and-pinion parallel guides. It supports left or right-hand operation and includes two blocking screws to prevent accidental position changes. The camera mounting plate tilts ± 90°, with a horizontally adjustable connecting screw for versatile camera positioning.

Height adjustment is motorised and controlled via a cable remote, offering two speeds for precise control. It maintains a constant adjustment speed regardless of load and features automatic end stops triggered by photo sensors to protect the mechanism.

The large matt grey, non-reflective base plate measures 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.) and includes a printed grid with cm and inch scales. Adjustable feet and a built-in spirit level ensure perfect stability and alignment on any surface.

Specifications:

• Base plate: 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.)
• Column height: 1.20 m (3.9 ft.)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
• Loading capacity: 8 kg (17.6 lbs)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• Reversible mounting thread: 1/4” / 3/8” interchangeable
• Motorised height adjustment with two speeds
• Cable remote control
• Constant speed adjustment, independent of load
• Automatic end switches by photo sensors
• Built-in spirit level

Main Differences Compared to K5602

• Motorised height adjustment replaces hand-cranked operation
• Cable remote control enables convenient height changes
• Two-speed adjustment with constant speed regardless of load
• Automatic end stops via photo sensors instead of mechanical stops
• Both models share the same solid aluminium build and versatile camera carrier design, but the motorised version offers enhanced ease of use and precision control.
