Kaiser RS CP 24D Image Capturing Set

Product Description

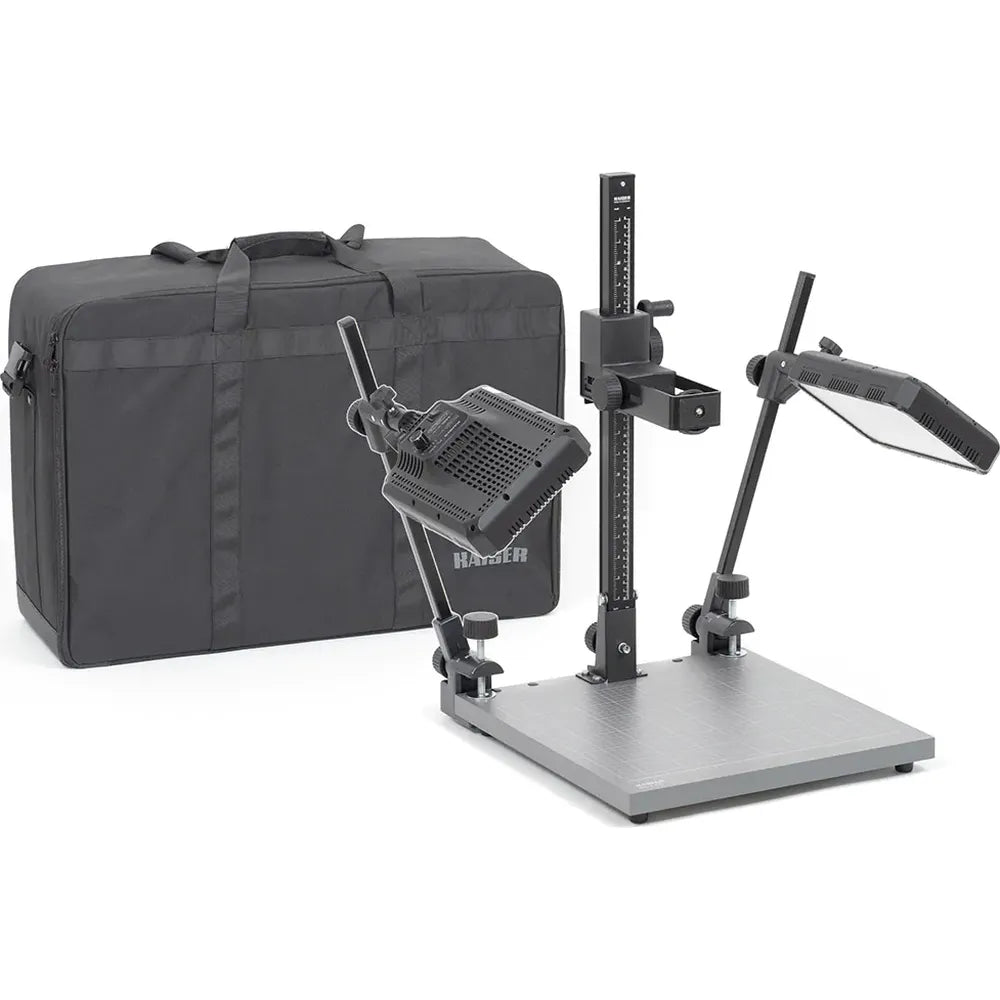

The Kaiser RS CP 24D Image Capturing Set is a portable, foldable solution for professional-quality reproduction photography. It combines the RS 2 CP foldable copy stand with a versatile LED lighting unit, all supplied in a robust carrying case for easy transport.

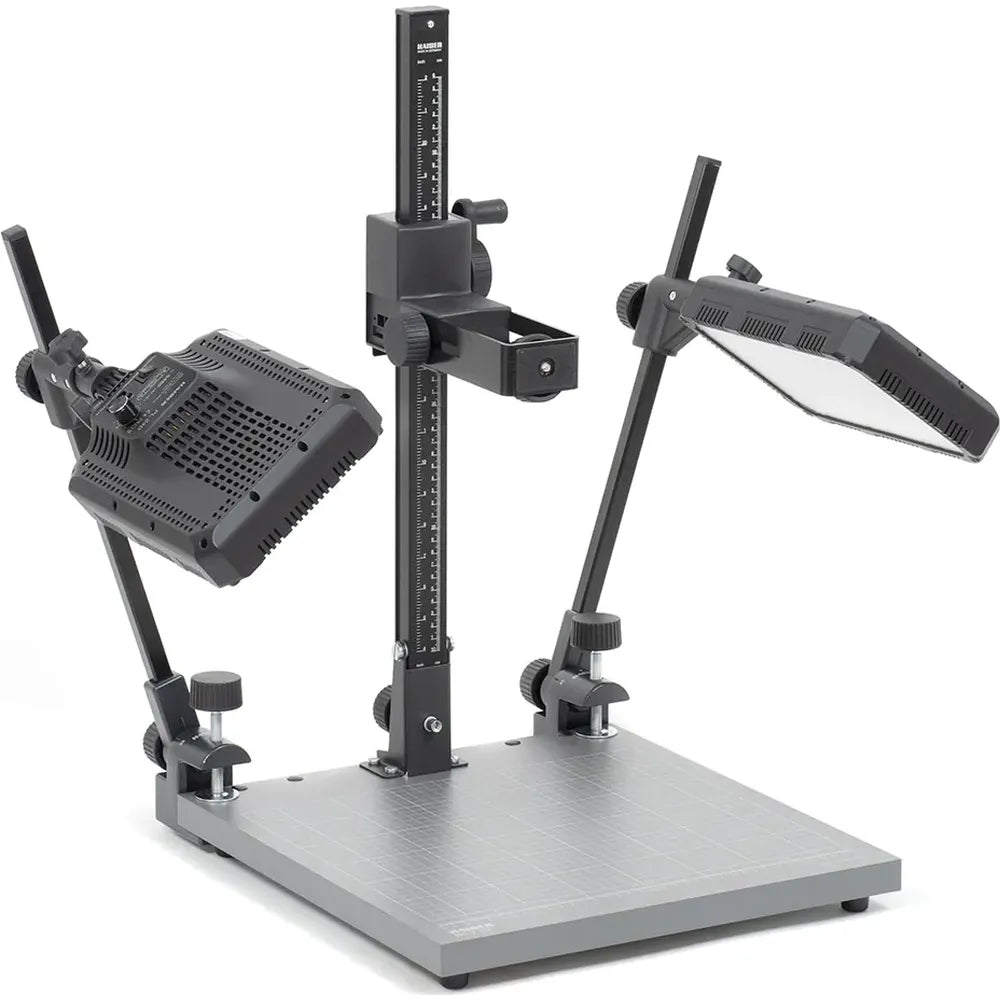

Foldable Copy Stand

The copy stand features a non-reflective matt grey baseboard with a fine grid and cm/inch scales, and a matt black anodised aluminium column with height markings. Hand-cranked height adjustment with friction bearings ensures precise positioning, while the horizontally adjustable camera arm moves approximately 7 cm (2.8 in.) for perfect framing. A standard 1/4” mounting thread fits most cameras. The column folds flat onto the baseboard for compact storage. The stand supports a maximum load of 1.5 kg (3.3 lbs.).

Copy Stand Key Specifications:

• Baseboard: approx. 400 × 25 × 420 mm
• Column height: approx. 60 cm
• Maximum load: 1.5 kg

LED Lighting Unit

The included LED lighting unit features two PL 24D daylight panels, individually dimmable for precise lighting control. The flicker-free lights are free from infrared and UV components, tiltable and height-adjustable on strong cast aluminium clamp bases. Each light uses 120 High-CRI SMD LEDs with a 5600 K colour temperature and CRI 95, drawing 24 W per panel. Vertical arms are adjustable and tiltable, designed specifically for mounting to the RS 2 CP copy stand.

LED Lighting Unit Key Specifications:

• LED panels: 2 × 24 W, 5600 K, CRI 95
• Vertical arm height: approx. 47 cm
• Flicker-free, IR/UV-free lighting

Portability

Supplied in a padded carrying case, the RS CP 24D Image Capturing Set is ideal for photographers seeking a portable, professional-quality imaging solution for documents, artwork, and small objects.
