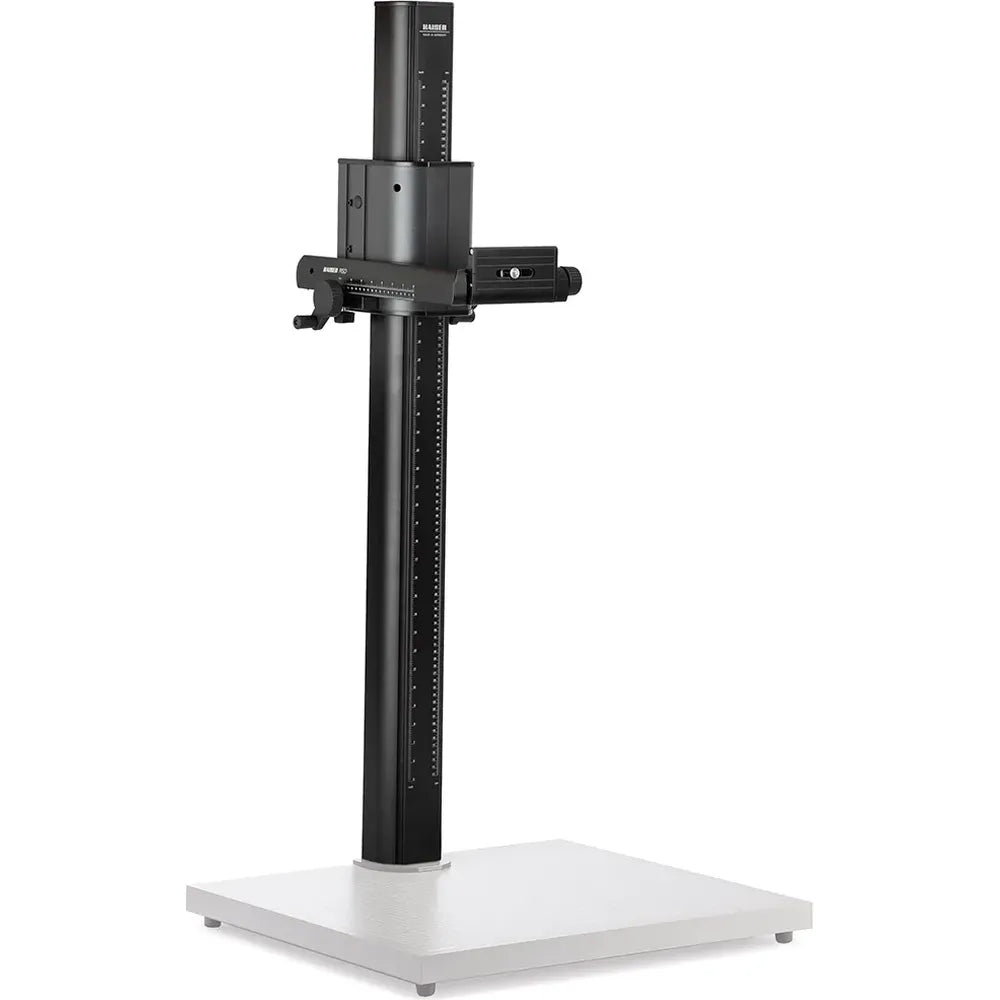

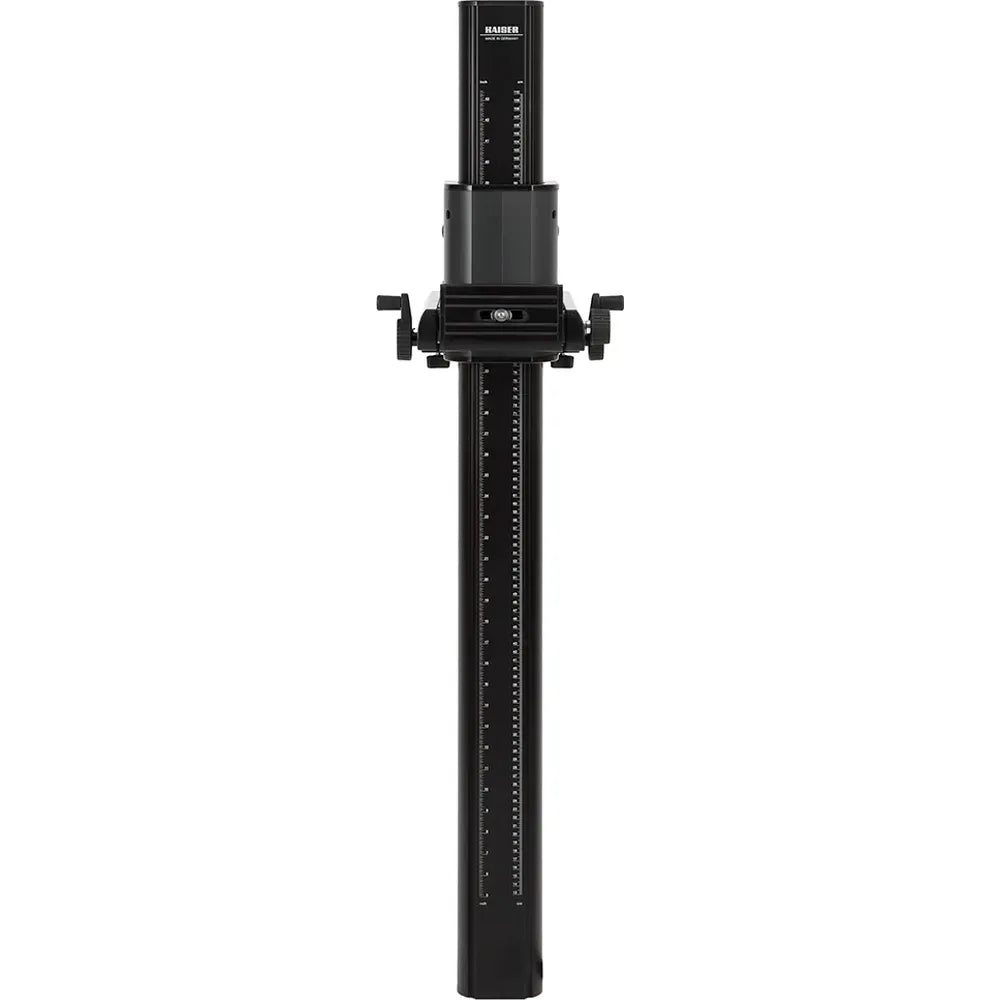

Kaiser RD Column MOT - 1.2m

Product Description

The Kaiser RD Column MOT - 1.2 m is a professional motorised column designed for precise and effortless camera positioning. Constructed from special aluminium multi-section tubing with a matt black anodised finish, the column features cm and inch scales for accurate height measurement.

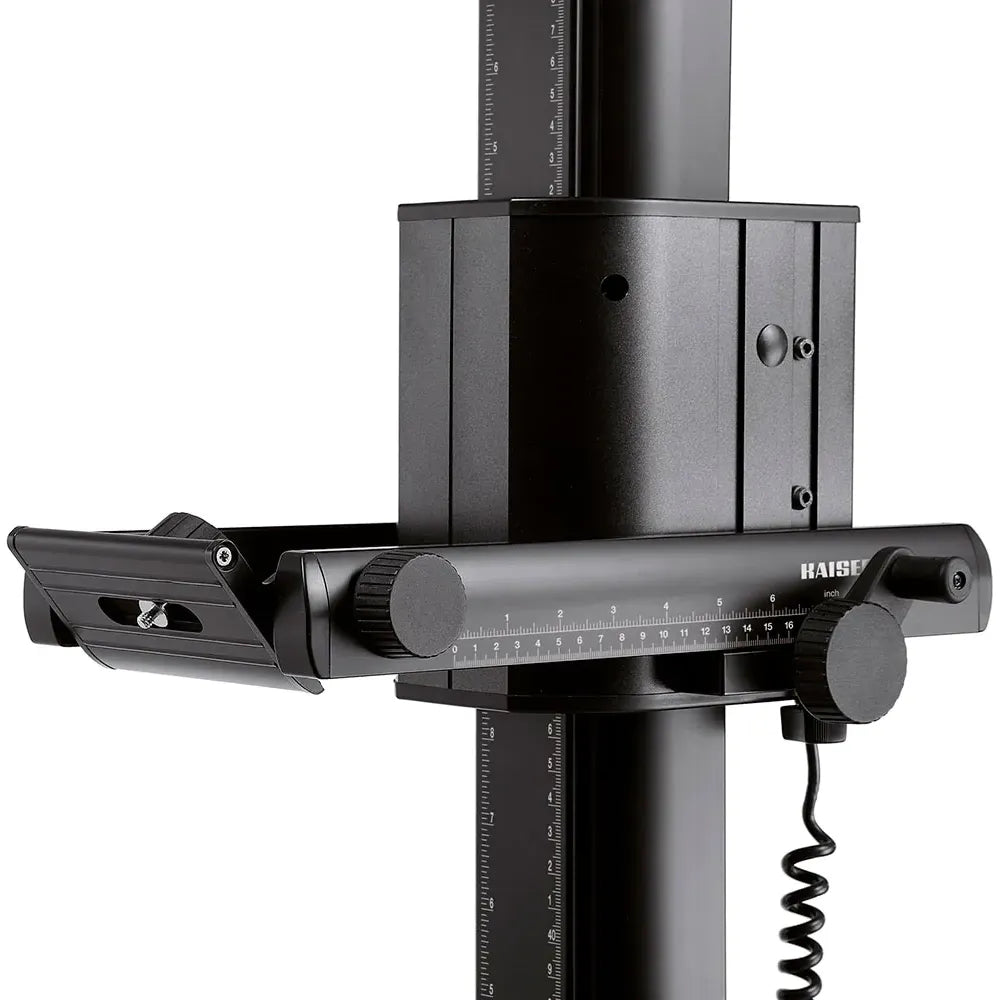

The aluminium camera carrier can be horizontally adjusted over approximately 16 cm (6.3 in.) using rack-and-pinion parallel guides. It supports both left- and right-hand operation, with two blocking screws to prevent accidental changes. The camera mounting plate is tiltable ±90°, and the connecting screw is horizontally adjustable for versatile camera setups.

Motorised height adjustment offers two speeds and constant motion independent of the load. A magnetic automatic end switch ensures safe operation, while a cable remote control provides convenient handling.

Specifications:

• Column height: 1.20 m (3.9 ft)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in)
• Loading capacity: 8 kg (17.6 lbs)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in)
• Reversing mounting thread: 1/4” / 3/8” changeable
• Horizontal camera adjustment: approx. 16 cm (6.3 in)
• Camera mounting plate tiltable ±90°
• Motorised height adjustment with two speeds and a constant speed independent of load
• Left- or right-hand operation with blocking screws
• Includes cable remote control and magnetic end switch
