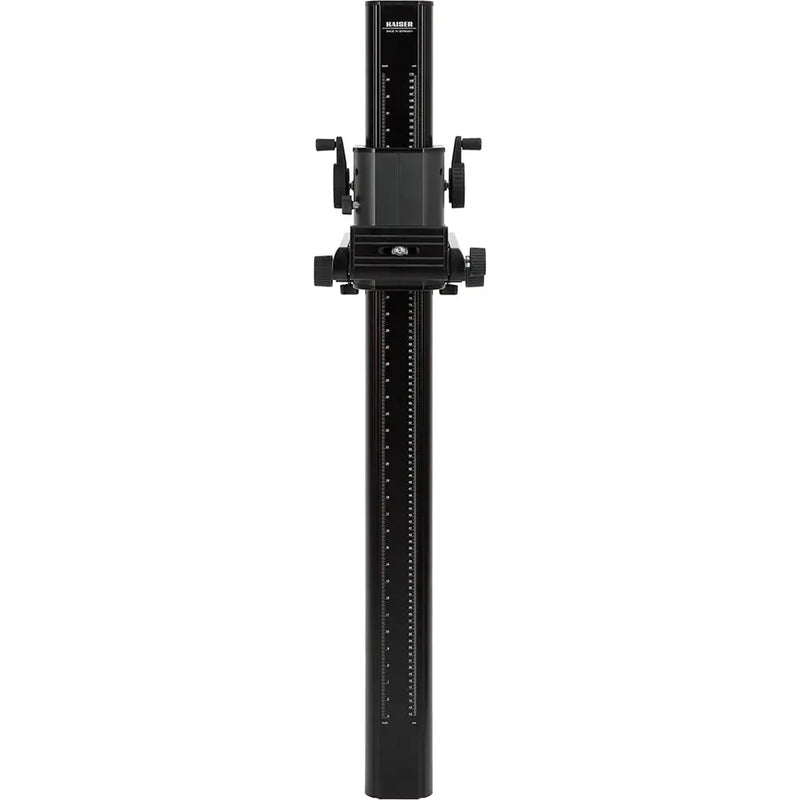

Kaiser RD Column - 1.2m

Product Description

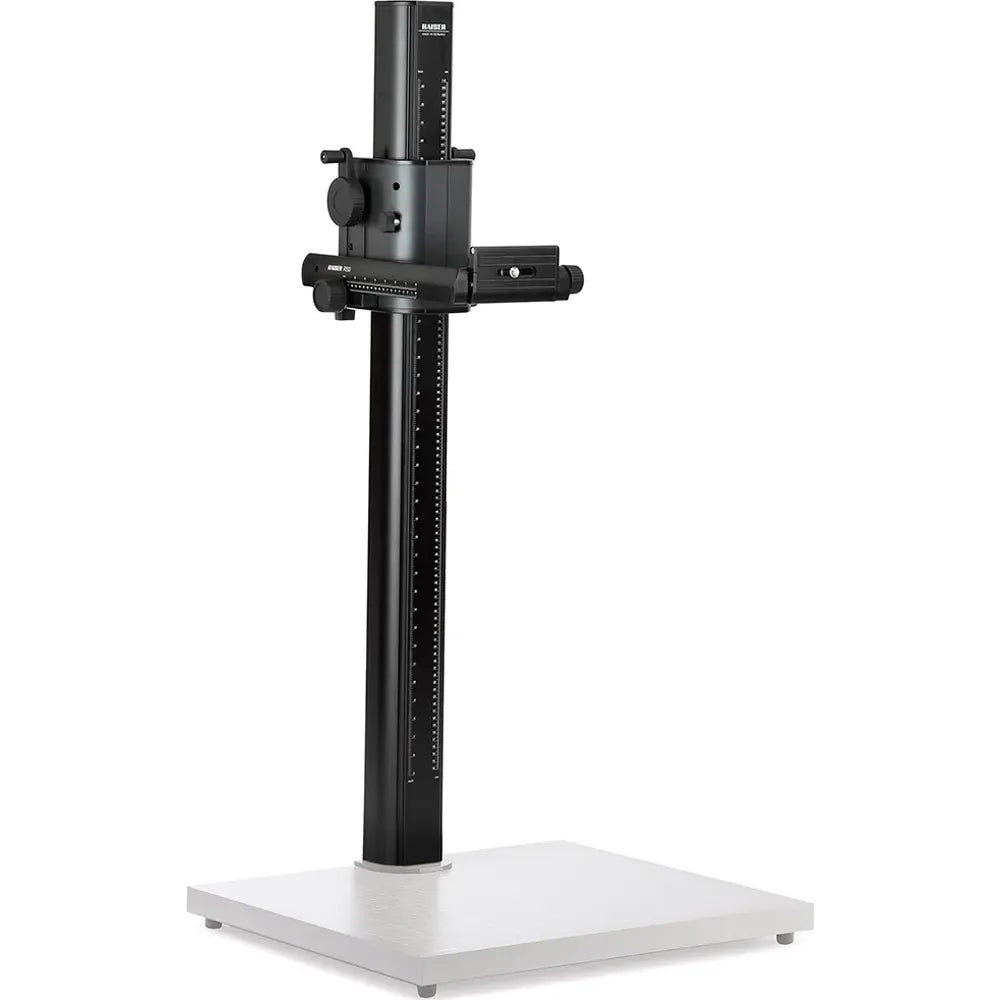

The Kaiser RD Column – 1.2 m is a high-quality, hand-cranked column designed for precise camera positioning in professional photography setups. Constructed from special matt black anodised aluminium multi-section tubing, the column features clear cm and inch scales for accurate height measurement.

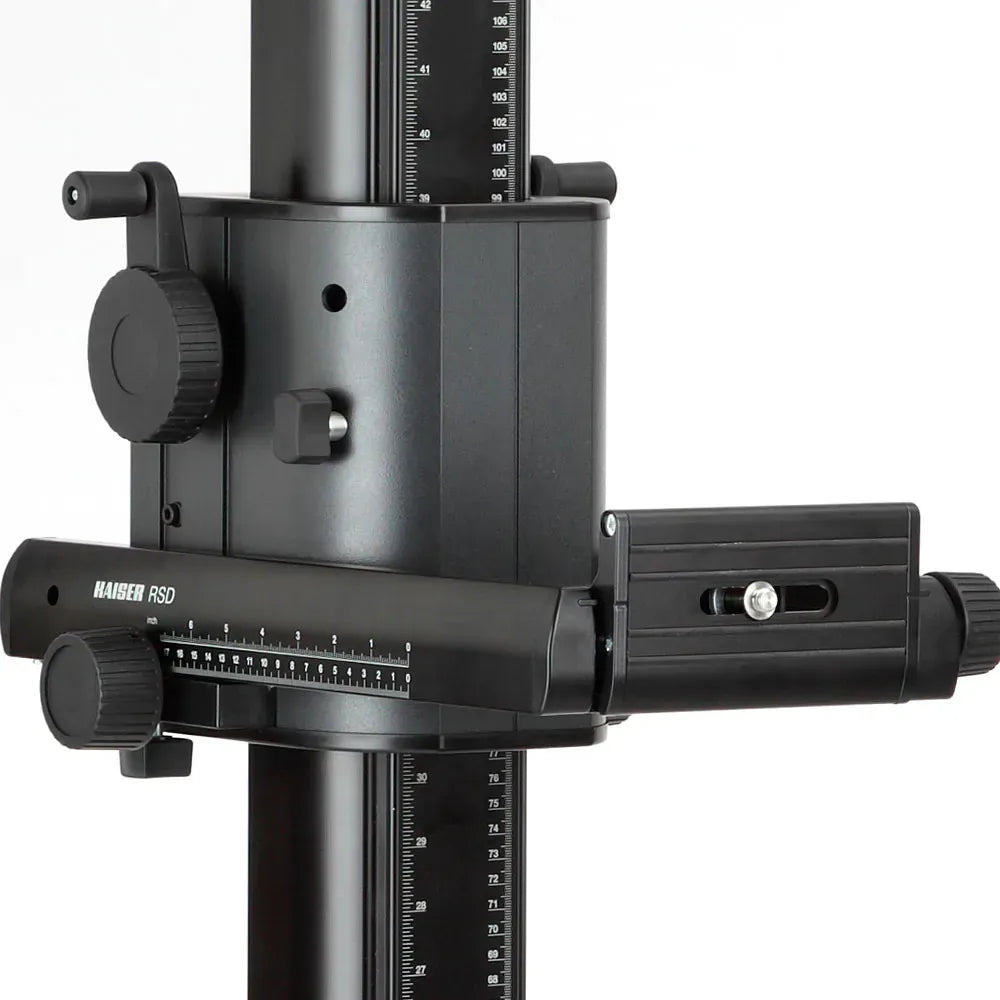

The aluminium camera carrier can be horizontally adjusted over approximately 16 cm (6.3 in) using rack-and-pinion parallel guides. It supports left- or right-hand operation, with two blocking screws to prevent accidental changes. The camera mounting plate is tiltable ±90°, and the connecting screw is horizontally adjustable to accommodate various camera setups.

Height adjustment is hand-cranked with rack-and-pinion operation and is counterbalanced by a built-in coil spring for smooth, effortless movement. A blocking screw ensures the column remains securely in position.

Specifications:

• Column height: 1.20 m (3.9 ft)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in)
• Loading capacity: 8 kg (17.6 lbs)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in)
• Reversing mounting thread: 1/4” / 3/8” changeable
• Horizontal camera adjustment: approx. 16 cm (6.3 in)
• Tiltable camera mounting plate: ±90°
• Hand-cranked, counterbalanced rack-and-pinion height adjustment
• Blocking screws prevent accidental changes in position

The Kaiser RD Column – 1.2 m combines precision, stability, and flexibility, making it ideal for controlled and professional photographic work.
