Kaiser RB 560 AL LED Lighting Unit

Product Description

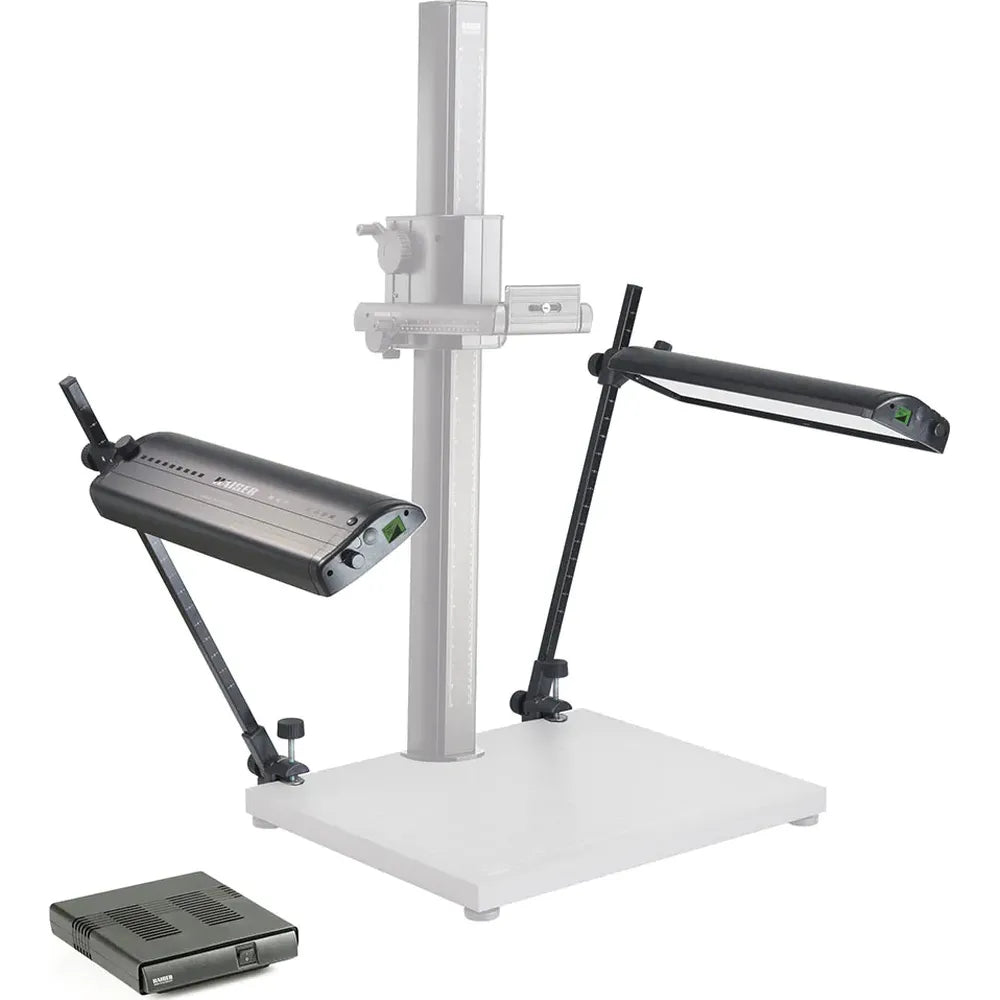

The RB 560 AL delivers soft, even illumination via two precisely matched LED light banks. Ideal for professional copy stands of the R1 and RD systems, it provides consistent, high-quality lighting for accurate reproduction.

Advanced LED Technology

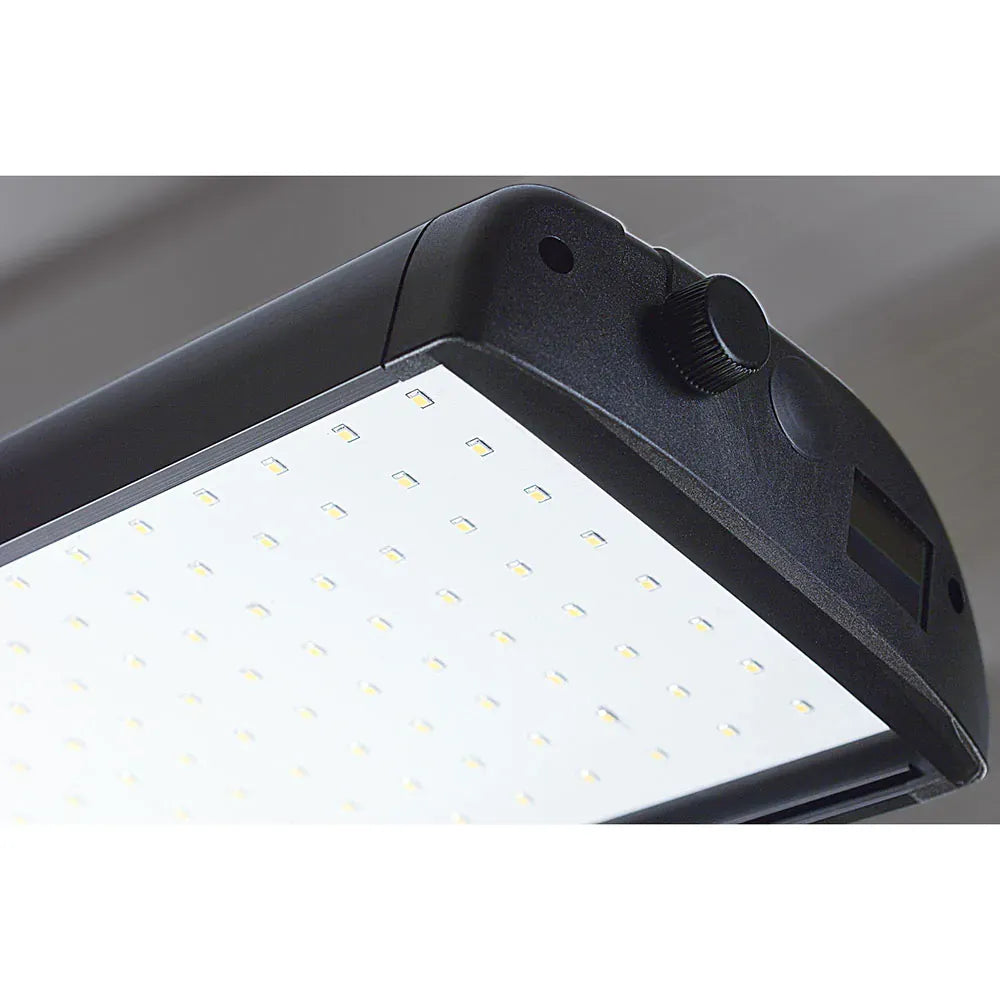

Each light bank contains 272 selected white SMD LEDs, with a colour temperature of 5600 K and a CRI of 96. The light is flicker-free, free from IR and UV radiation, and dimmable in 1 % steps from 10 % to 100 %, either individually or synchronously.

Thermal Management

Integrated thermo-management maintains constant brightness and colour temperature, regardless of room or unit temperature. Sensor-controlled temperature monitoring with dynamic compensation, combined with passive aluminium cooling, ensures reproducible results and extends LED lifespan.

Precision Illumination

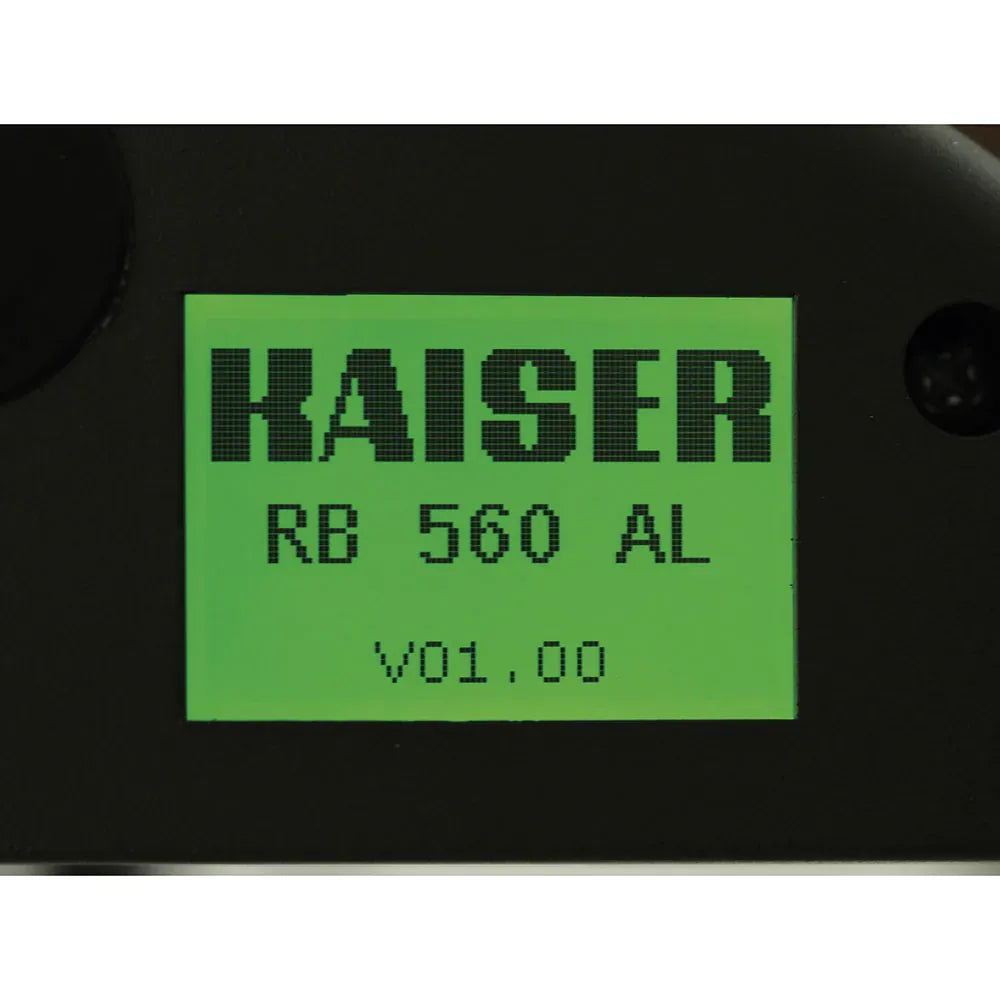

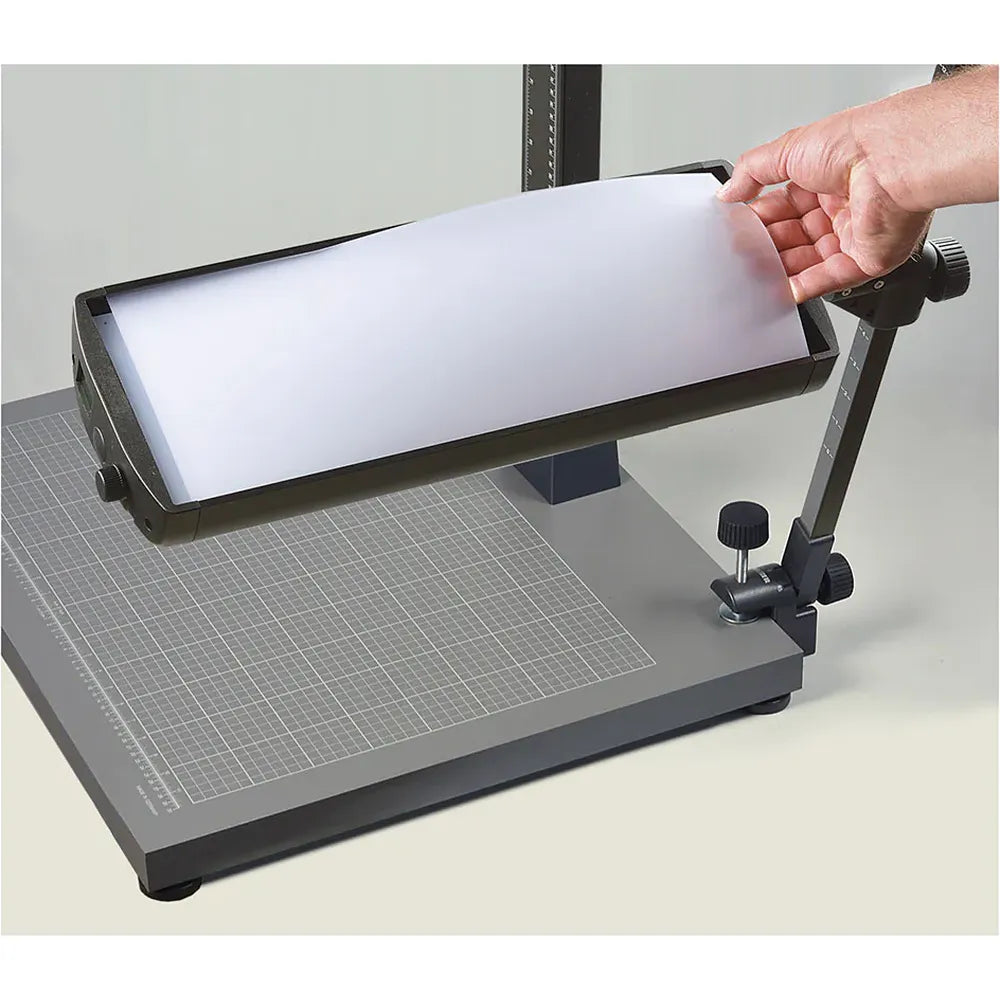

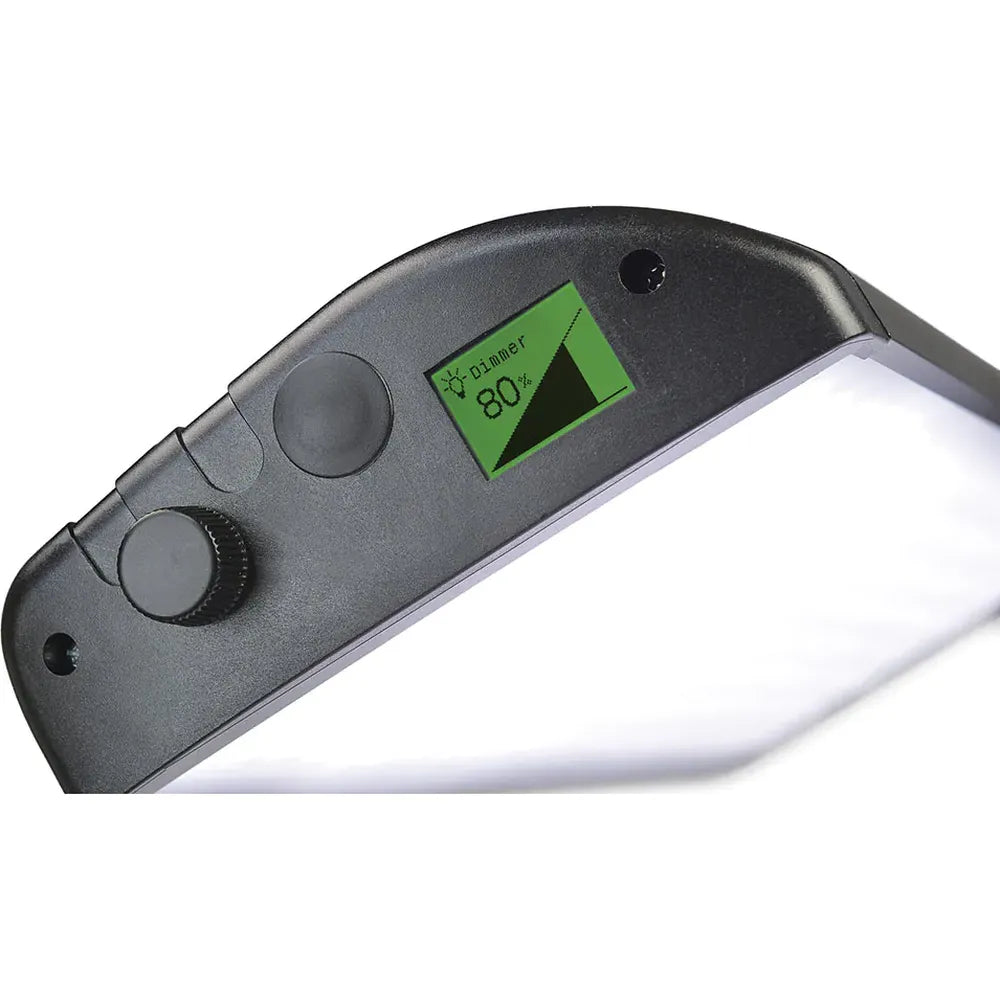

Matched light panels create homogeneous illumination with symmetrical alignment. The unit features an illuminated info screen and a memory function, recalling the last brightness setting at switch-on. Detachable soft screens allow flexible lighting adjustments.

Design and Flexibility

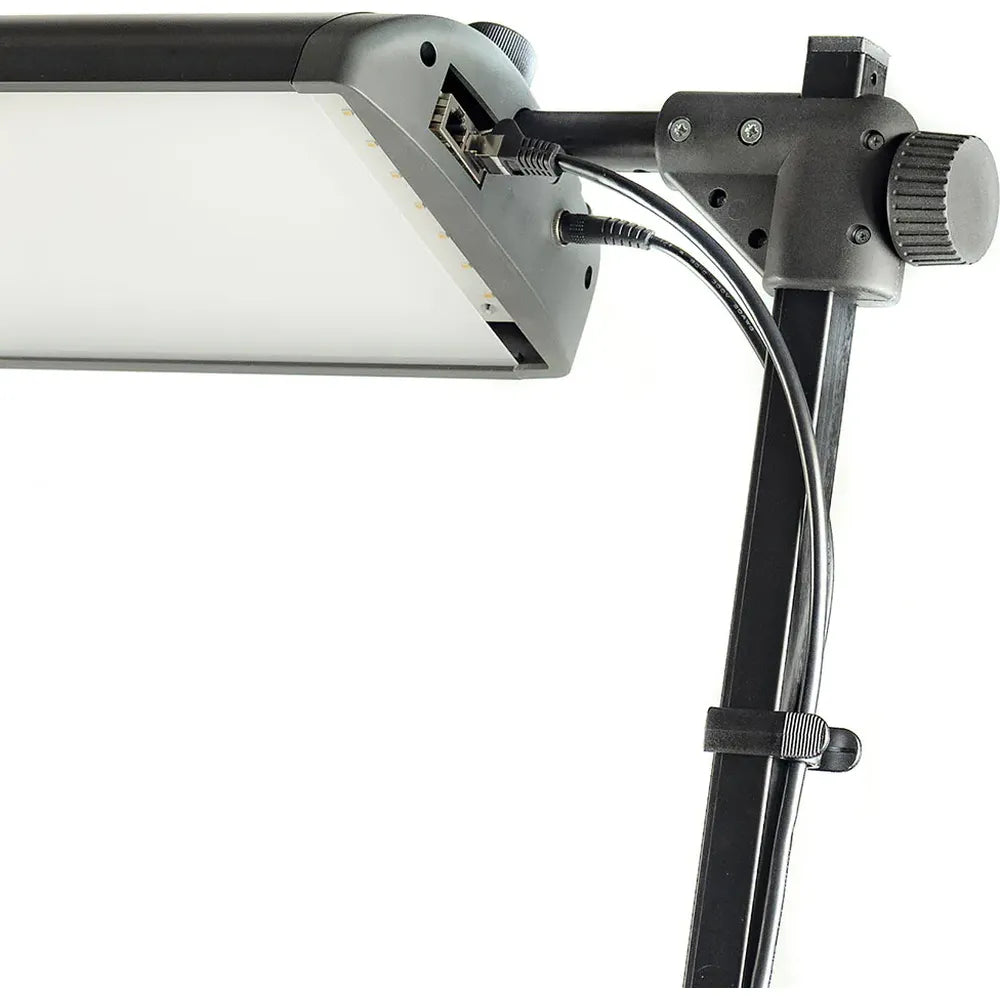

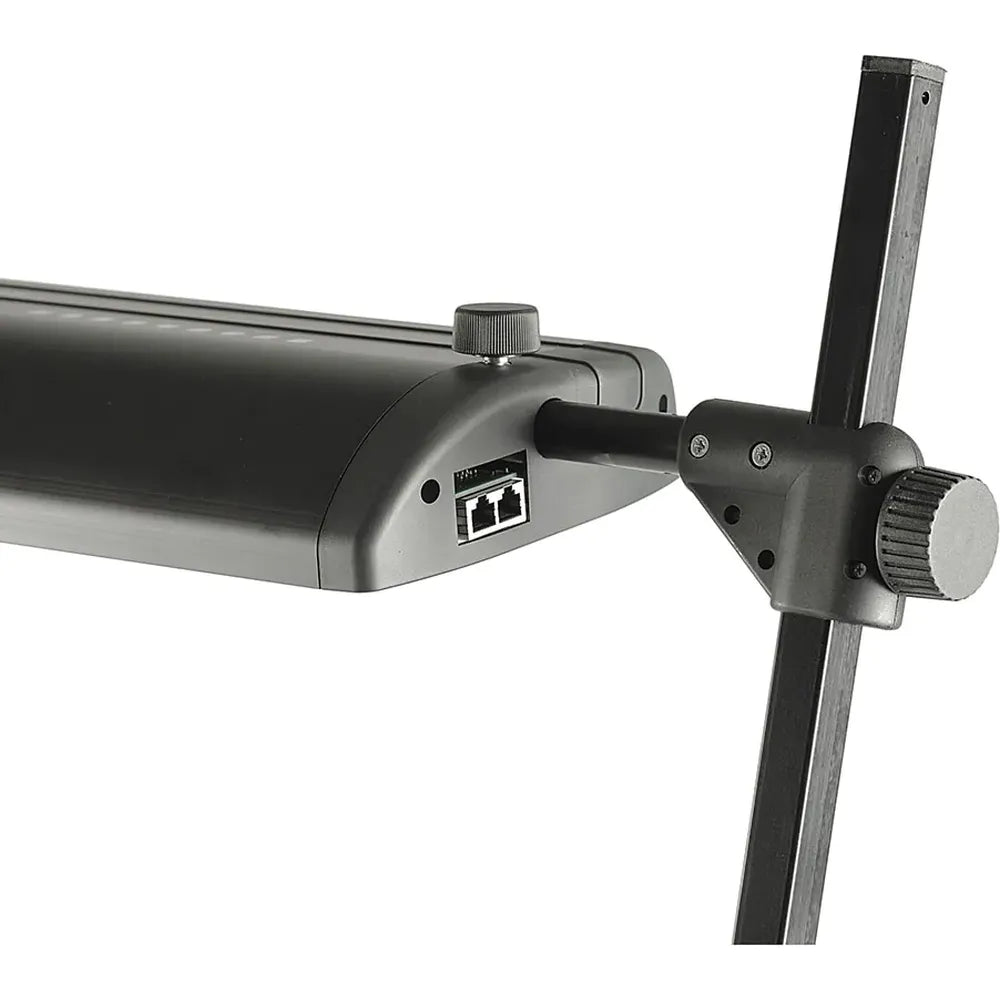

Sturdy anodised aluminium housings are height-adjustable, swivel and shiftable, mounted on vertical arms with detents and markings. Strong die-cast clamp bases (up to 48 mm) provide secure mounting.

Specifications

• LED arrays: 2 × 272 SMD LEDs, 5600 K, CRI = 96, 100° angle
• Max illumination: 6800 lux (with soft screen), 8000 lux (without)
• Power: ≤ 2 × 40 W, 24 V operation
• Panel size: 58 × 16.5 cm
• Vertical arms: 76 cm, 20 × 20 mm
• Mains adapter: 100–240 V input, 24 V/4 A output, 2.5 m lead
