Kaiser RB 5270 DX Copylizer Lighting Unit

Product Description

The Kaiser RB 5270 DX is an LED reflected light unit designed for the Copylizer (5215) and exe.cutive LED Illumina Base Plate (5244). Featuring two light banks, it provides even and soft illumination, ideal for reproduction, photography, and archival work.

High-Quality LED Technology

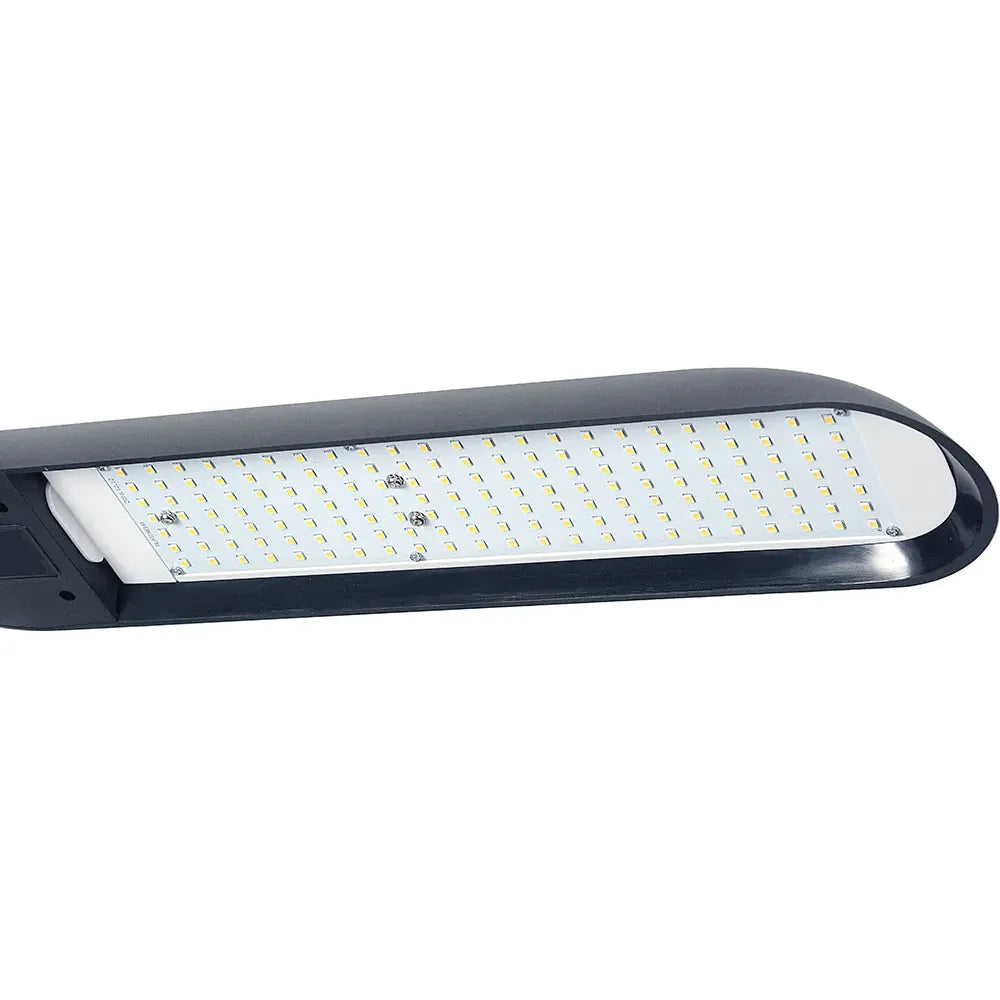

Each light bank contains 161 carefully selected white SMD LEDs, emitting light completely free of IR and UV radiation. DC operation ensures flicker-free lighting without residual ripple, while brightness is continuously dimmable, either individually or in combination. A removable diffusing cover (5466) allows for softer illumination.

Flexible Adjustment

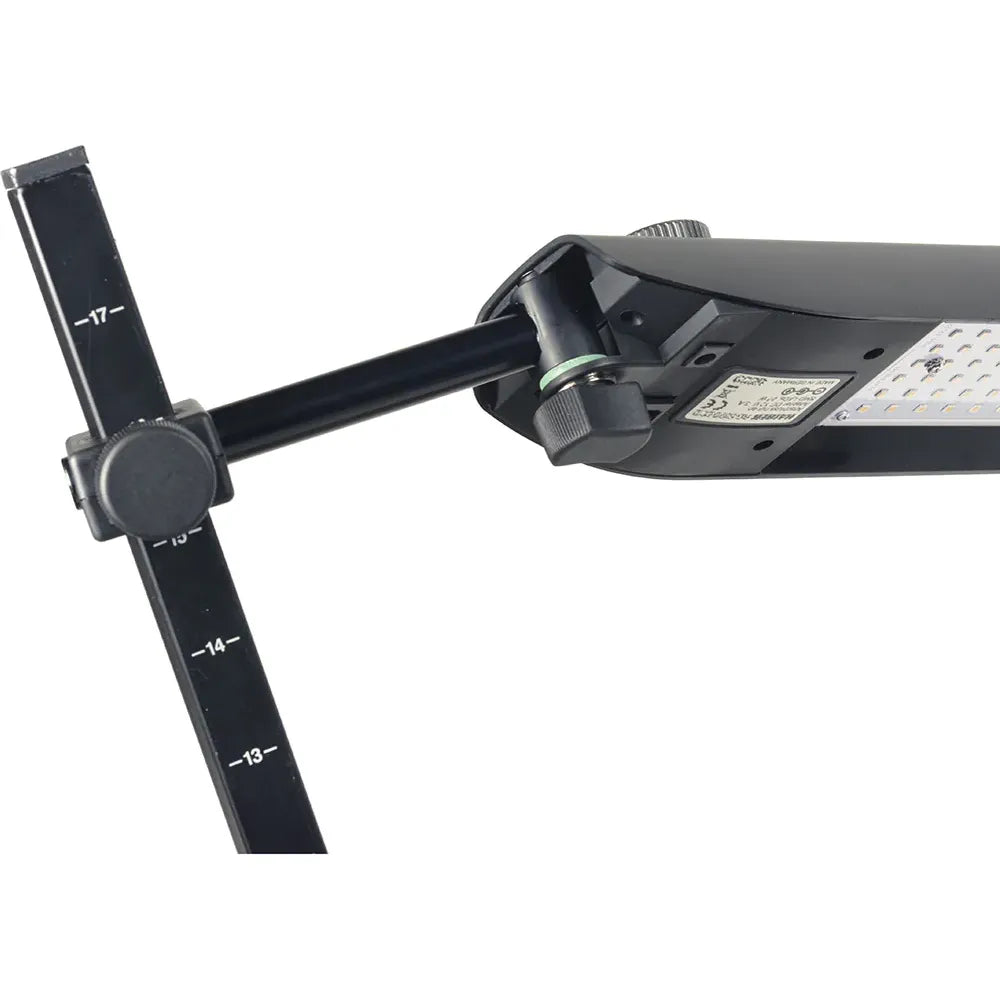

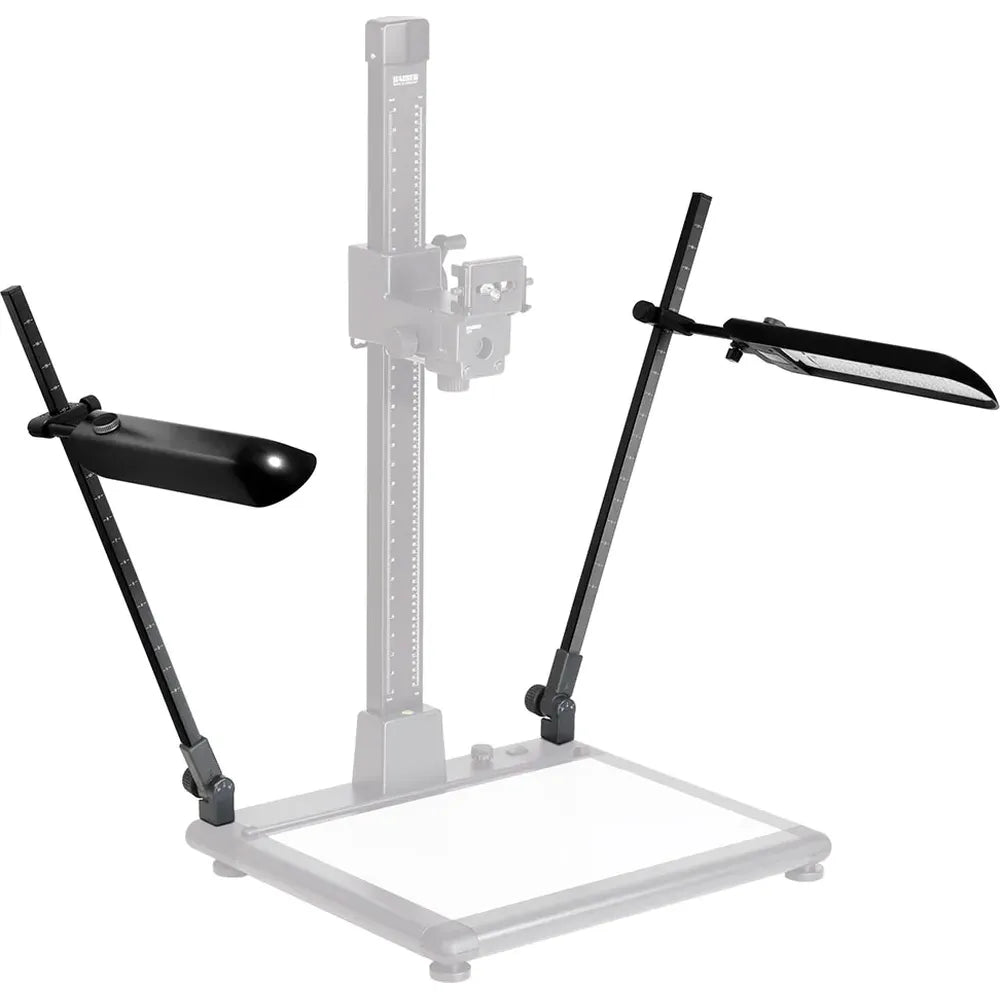

The lights can be tilted, swivelled, and height-adjusted for precise positioning. Vertical lamp arms feature height markings and detent tilting. The unit attaches securely to the Copylizer or Illumina Base Plate via articulated joint bases.

Technical Specifications

• LED array: 2 × 161 SMD LEDs
• Colour temperature: approx. 6000 K
• CRI: > 93
• Angle of radiation: 110°
• Max. illumination: 3000 lux (without diffusing cover), 2400 lux (with cover)
• Power consumption: 2 × 27 W
• Operating voltage: 12 V
• Light emitting area per light: 33 × 8.5 cm
• Includes mains adapter
