Kaiser RB 525 AS Copylizer Lighting Unit

Product Description

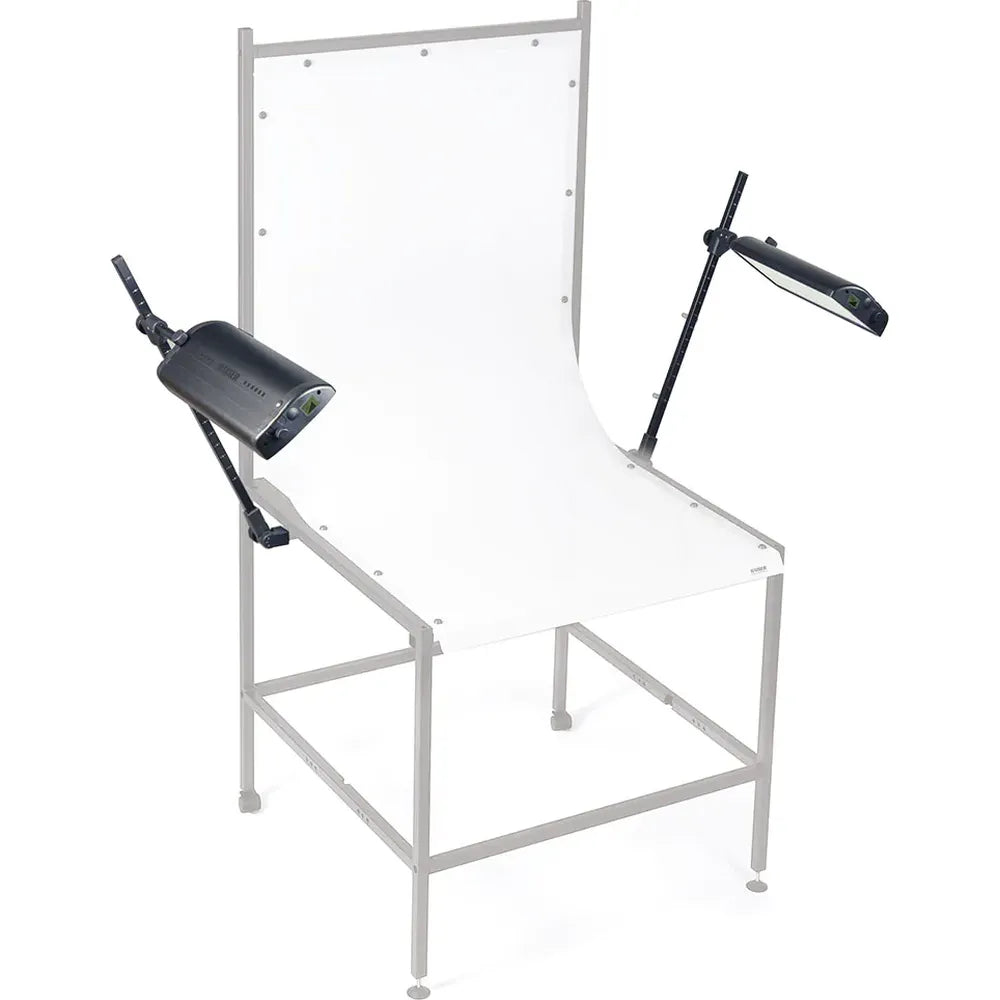

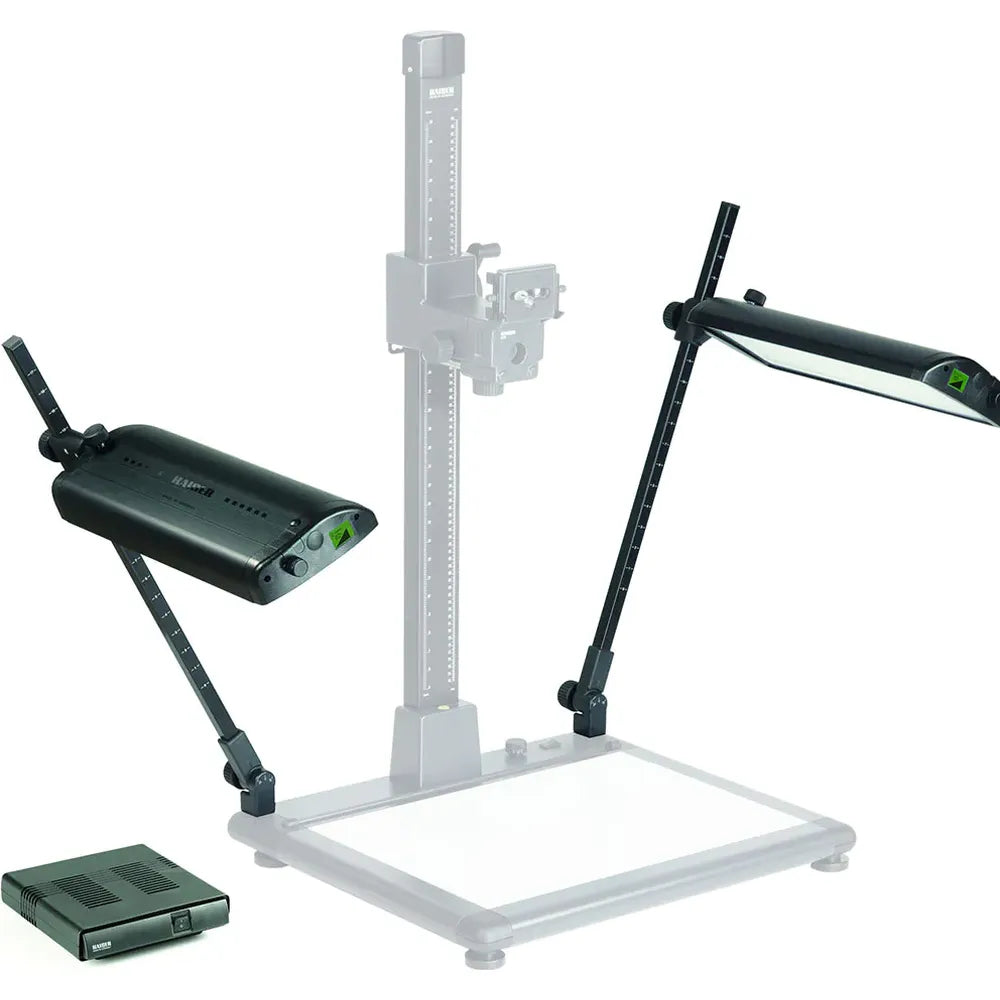

The Kaiser RB 525 AS is a high-performance LED surface lighting unit, featuring two light banks for even, soft illumination. It is compatible with the Copylizer exe.cutive LED (K5215), Illumina Base exe.cutive LED (K5244), and can also serve as a surface lighting unit for the TopTable PRO shooting table (K5921).

Advanced Thermo-Management

LEDs are highly efficient but generate heat, which can affect brightness and colour temperature. The integrated thermo-management system ensures constant brightness and 5600 K colour temperature, regardless of room or unit temperature. This system combines sensor-controlled temperature monitoring with dynamic compensation and passive cooling via aluminium housing, guaranteeing reproducible results and extended LED lifespan.

High-Quality LED Illumination

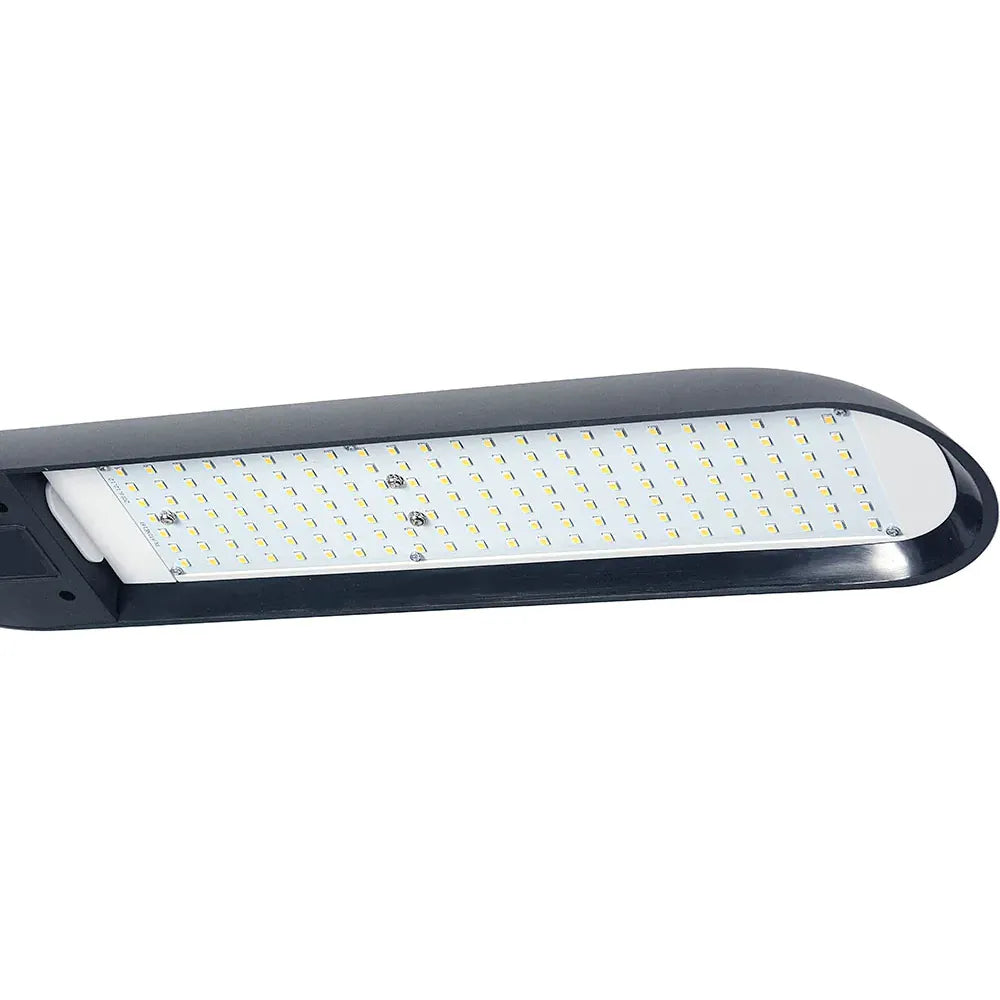

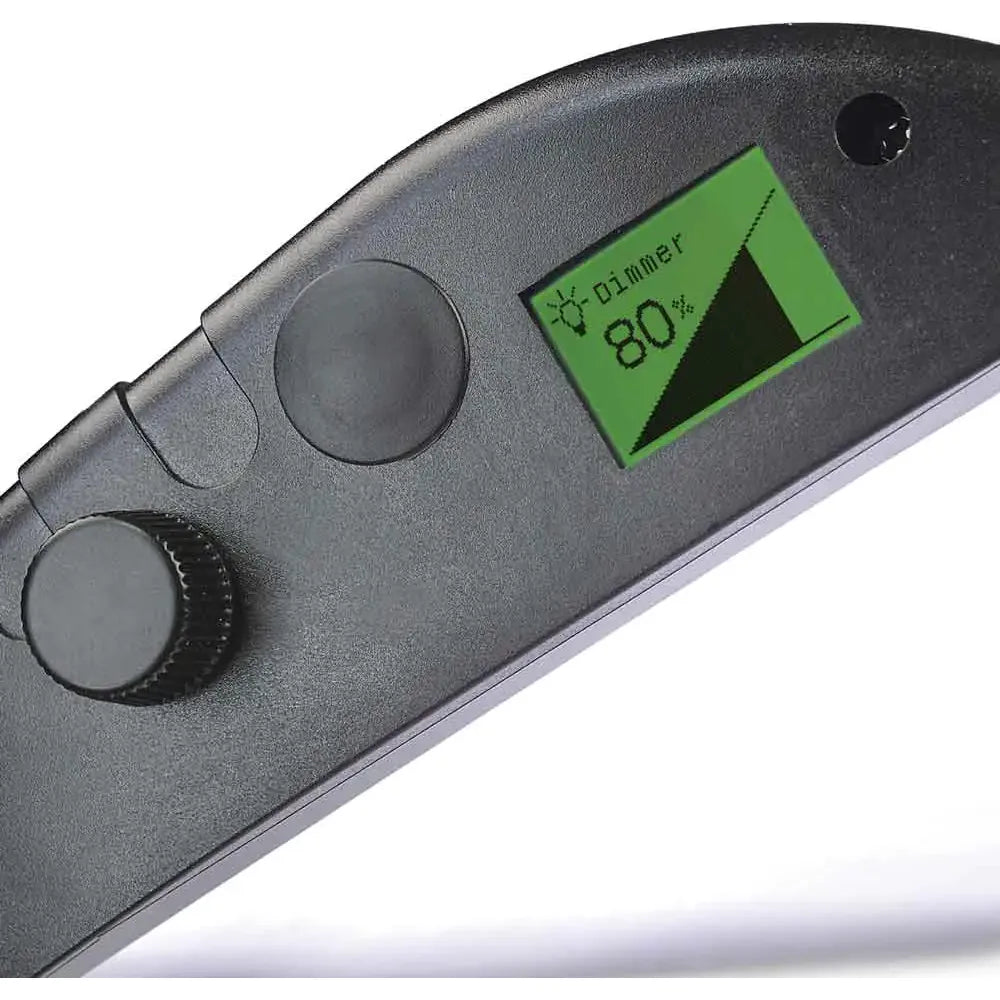

Each light bank contains 192 selected white SMD LEDs, emitting light completely free of IR and UV radiation. The lights are flicker-free, with continuous dimming in 1% steps from 10% to 100%, individually or synchronously. An illuminated info screen displays the set brightness, and a memory function restores the previous brightness on switch-on.

Flexible Adjustment and Design

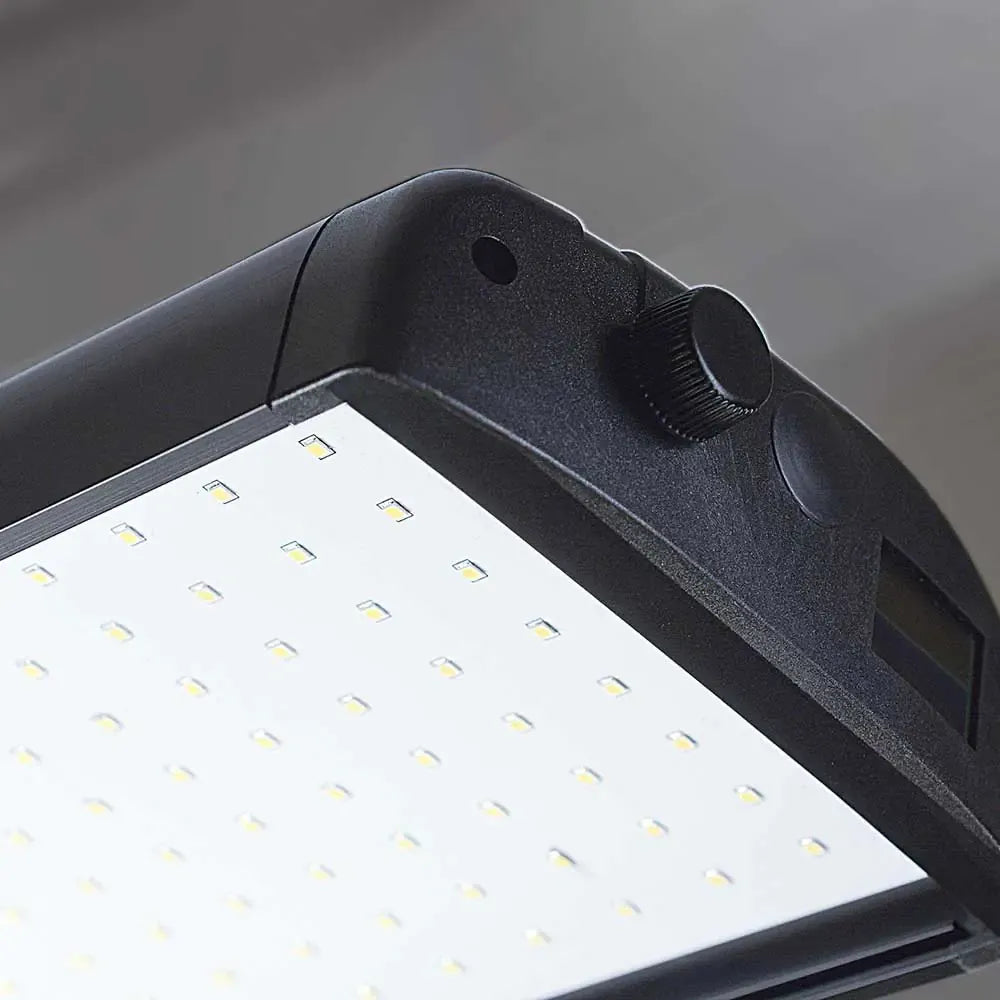

The lamp housings are made of sturdy anodised aluminium and can be swivelled, shifted, and height-adjusted. Vertical arms feature height markings and tilting detents, while detachable soft screens provide even softer illumination. The LED arrays are precisely matched for homogeneous, symmetrical lighting.

Technical Specifications

• LED arrays: 2 × 192 SMD LEDs
• Colour temperature: 5600 K
• CRI: 95
• LED angle of radiation: 100°
• Max. illumination: 4600 lux with soft screen, 5200 lux without
• Power consumption: 2 × ≤28 W
• Operating voltage: 24 V
• Light emitting area per light: 39 × 16.5 cm (15.4 × 6.5 in.)
• Vertical arms: 76 cm length, 20 × 20 mm edge dimension
