Kaiser RB 5020 DS2 LED Lighting Unit - 2x105 SMD LEDs

Product Description

Achieve perfectly even, soft lighting for your image capture projects with the Kaiser RB 5020 DS2 LED Lighting Unit. Designed with two light banks, each equipped with 105 high-quality white SMD LEDs, this professional lighting system delivers consistent daylight illumination (5600 K) with exceptional colour rendering (CRI 95) - ideal for accurate, true-to-life reproduction.

Key Features:

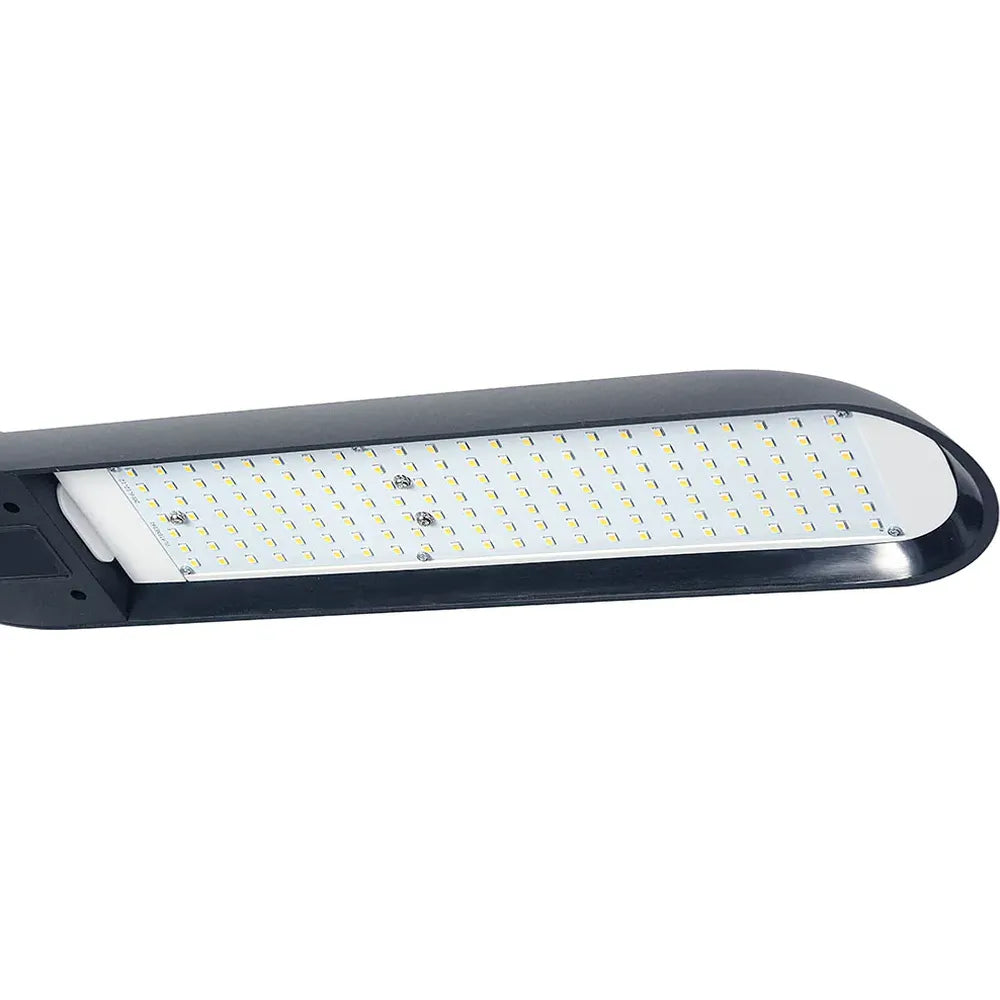

• Dual LED Banks: 2 × 105 selected SMD LEDs provide bright, uniform light.
• Flicker-Free DC Operation: Ensures smooth illumination with no residual ripple -perfect for photography and scanning.
• Adjustable Brightness: Dimmable individually or together for precise control over lighting levels.

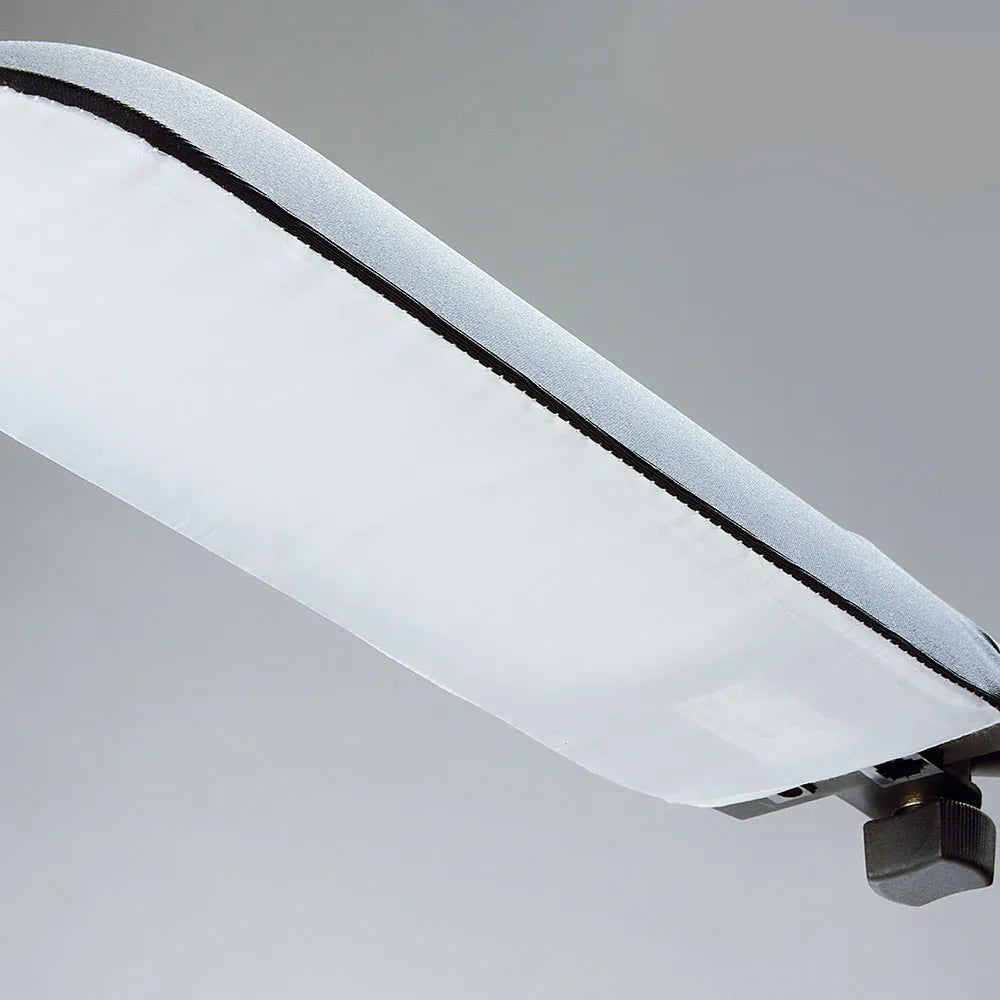

• Soft, Even Light: Removable diffusing cover minimises harsh shadows.

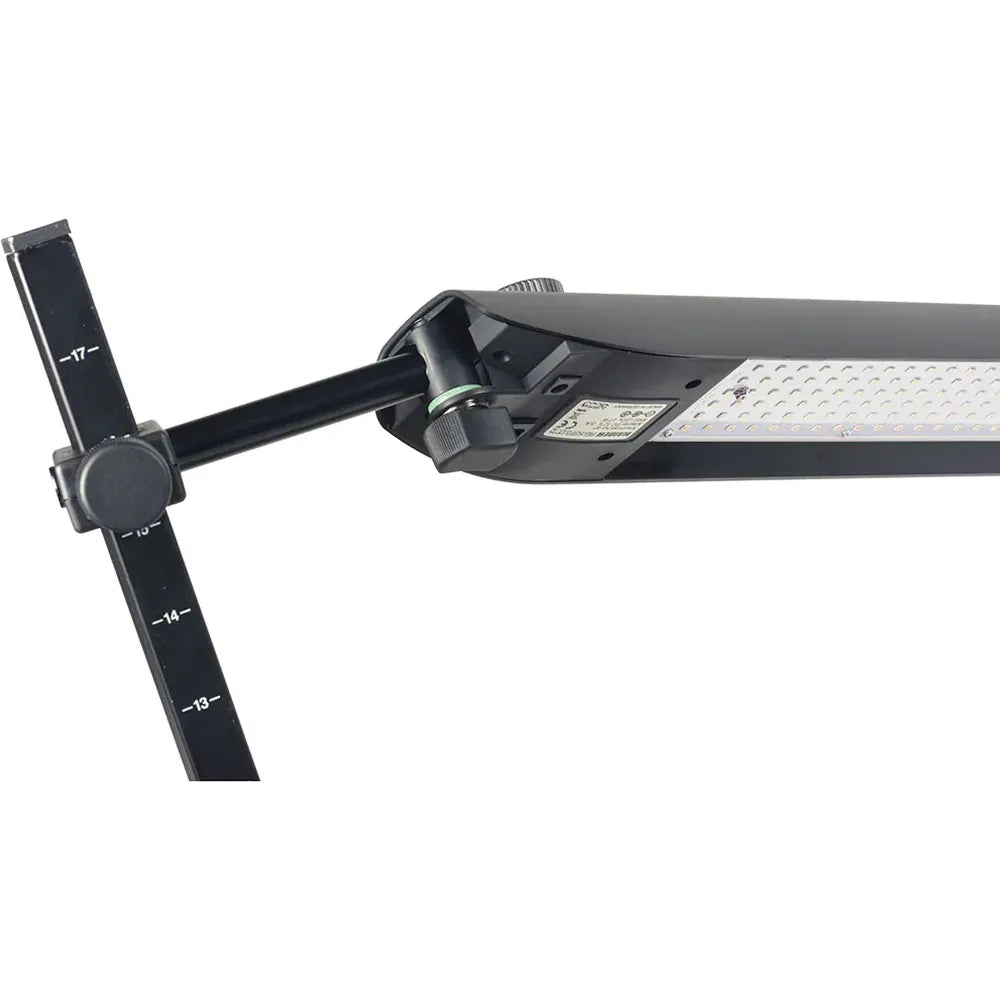

• Flexible Positioning: Lights can be tilted, swivelled, and adjusted in height; vertical lamp arms feature detents for repeatable positioning.
• Secure Mounting: Die-cast clamp bases fit surfaces up to 48 mm (1.9 in.) wide.

Technical Specifications:

• LED Array: 2 × 105 SMD LEDs
• Colour Temperature: 5600 K (daylight)
• CRI: 95
• Angle of Radiation: 110°
• Power Consumption: 2 × 17 W
• Illuminance: 4300 lux* on 9 × 12” flat subject

*Measured for maximum evenness of illumination on a 9 × 12” flat subject.

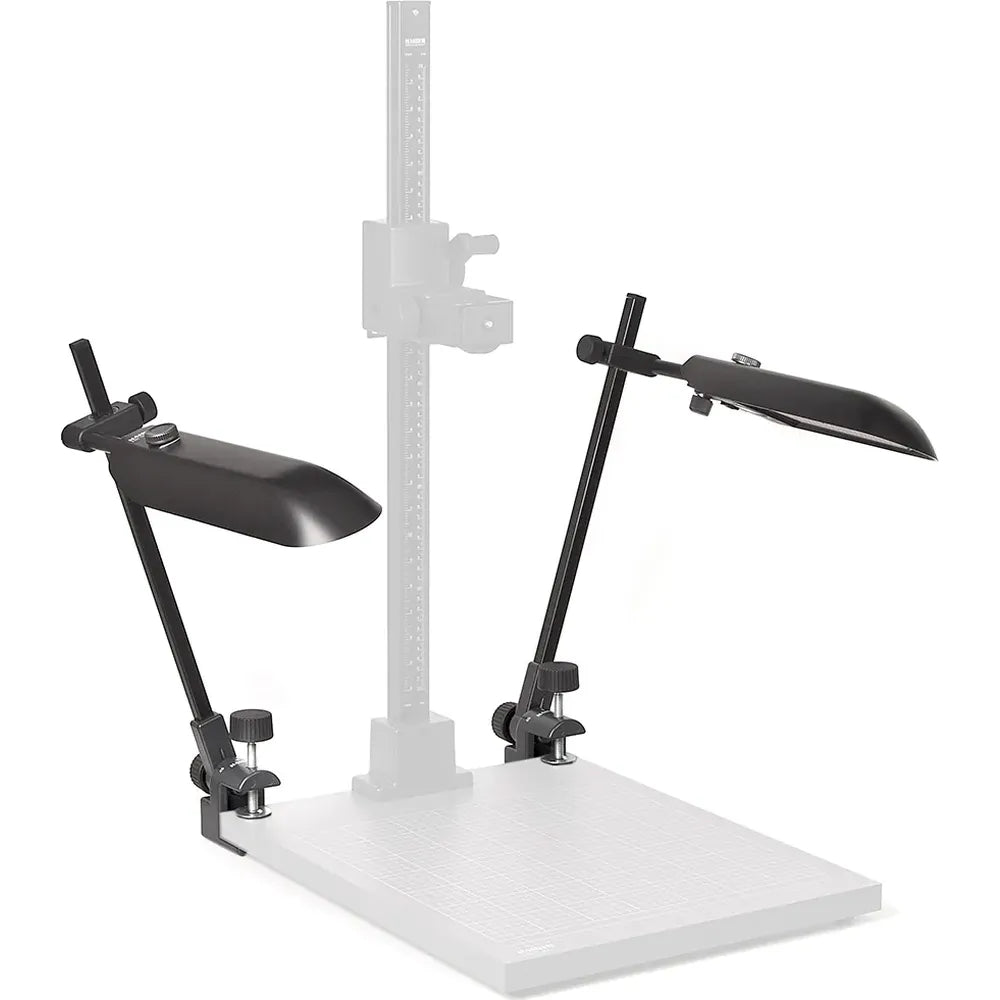

The RB 5020 DS2 is fully compatible with Kaiser R2 System copy stands, providing versatile and precise lighting for photography, scanning, and archival reproduction. With no IR or UV emissions, it protects sensitive materials while delivering reliable, high-quality light.
