Kaiser RB 24D LED Lighting Unit

Product Description

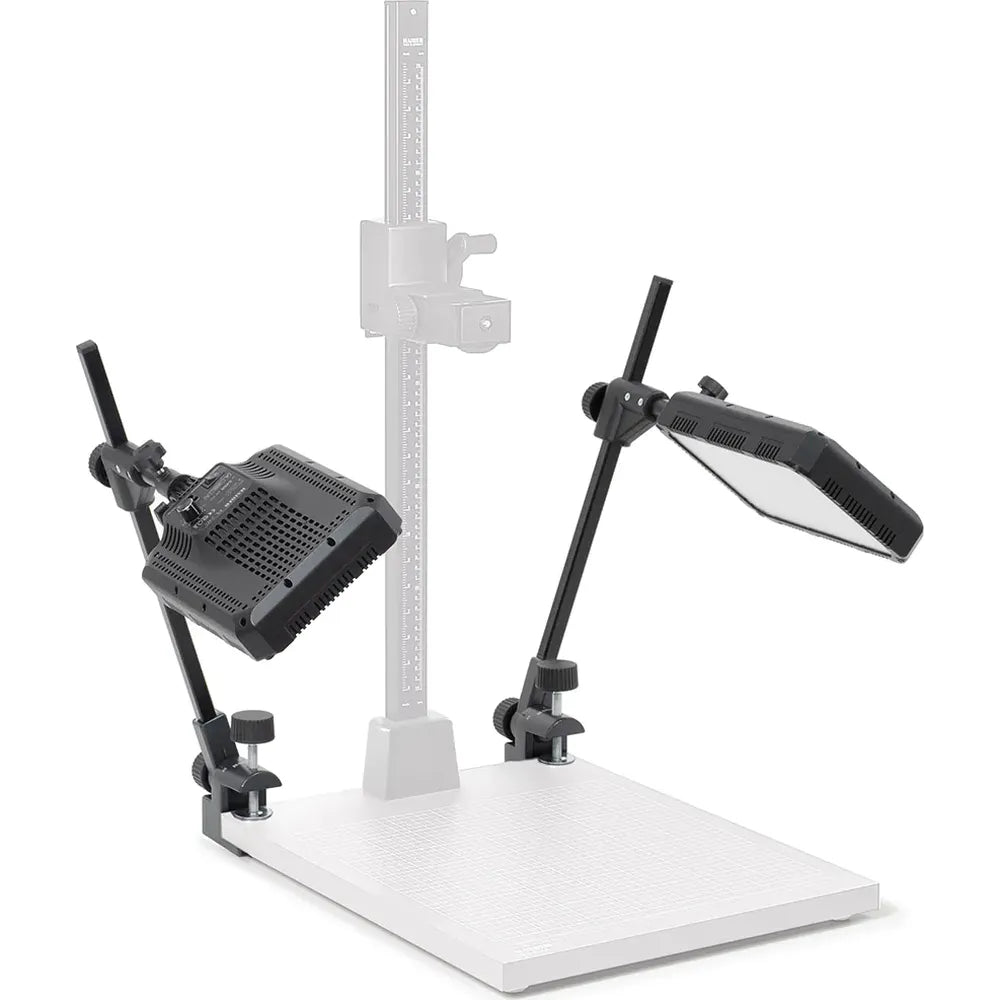

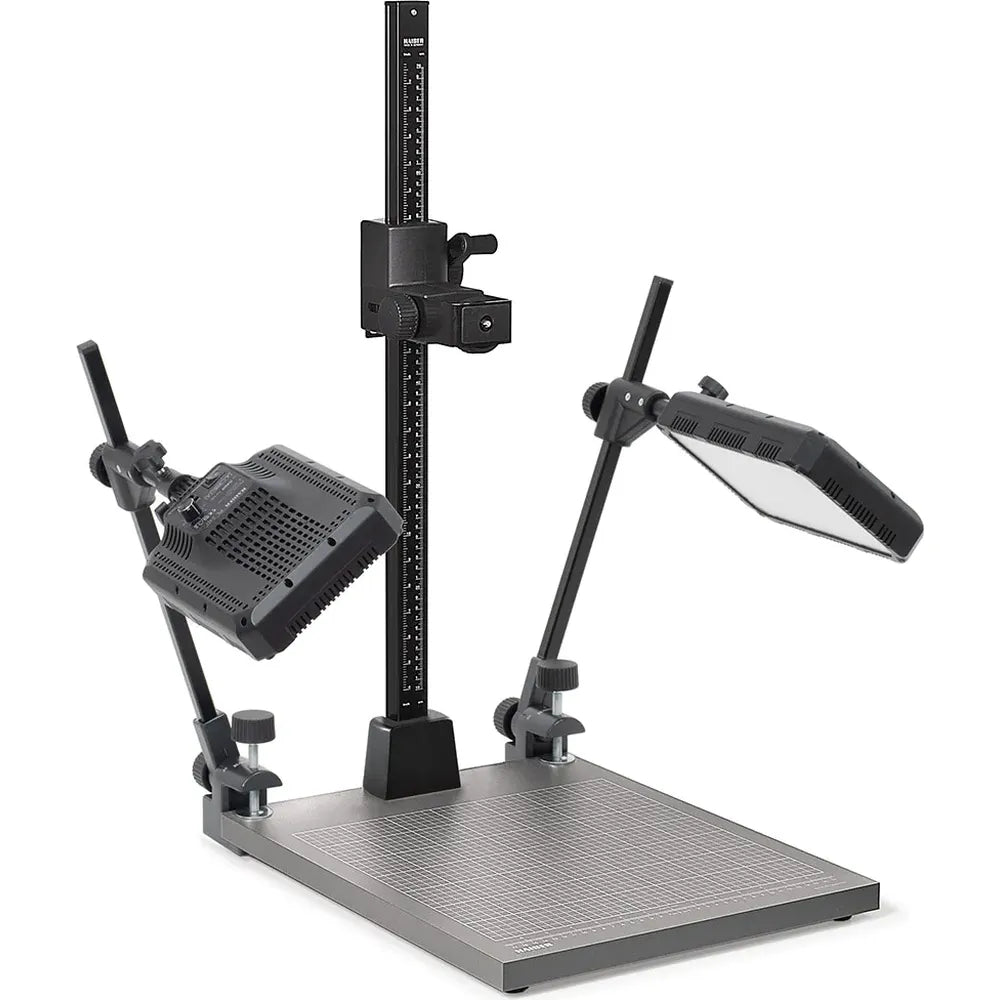

The Kaiser RB 24D LED Lighting Unit is a professional daylight-type lighting system designed to provide even, soft illumination for precise image capture. It features two PL 24D soft lights, each delivering 24 W of dimmable LED light, making it ideal for use with the RS 2 XA copy stand (K5411).

High-Quality LED Light Source

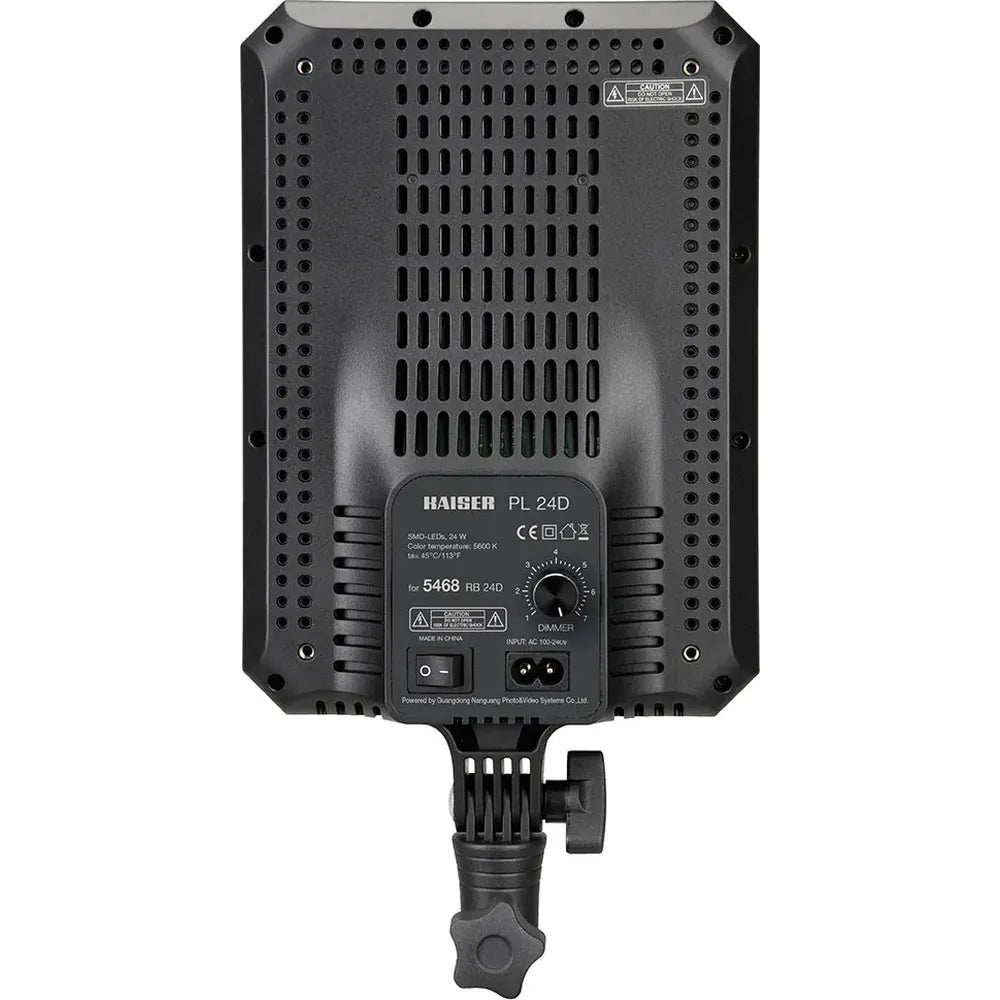

Each light contains 120 high-CRI SMD LEDs, offering a 5600 K colour temperature and a CRI of 95 for excellent colour accuracy. The lighting is flicker-free and free of infrared and UV radiation, ensuring safe, consistent illumination. Specially textured diffuser screens (21.4 × 14.7 cm / 8.4 × 5.8 in.) scatter the light to provide soft, even coverage and high illuminance. Brightness is continuously dimmable from 0 to 100 %, with each light individually controllable.

Adjustable Mounting System

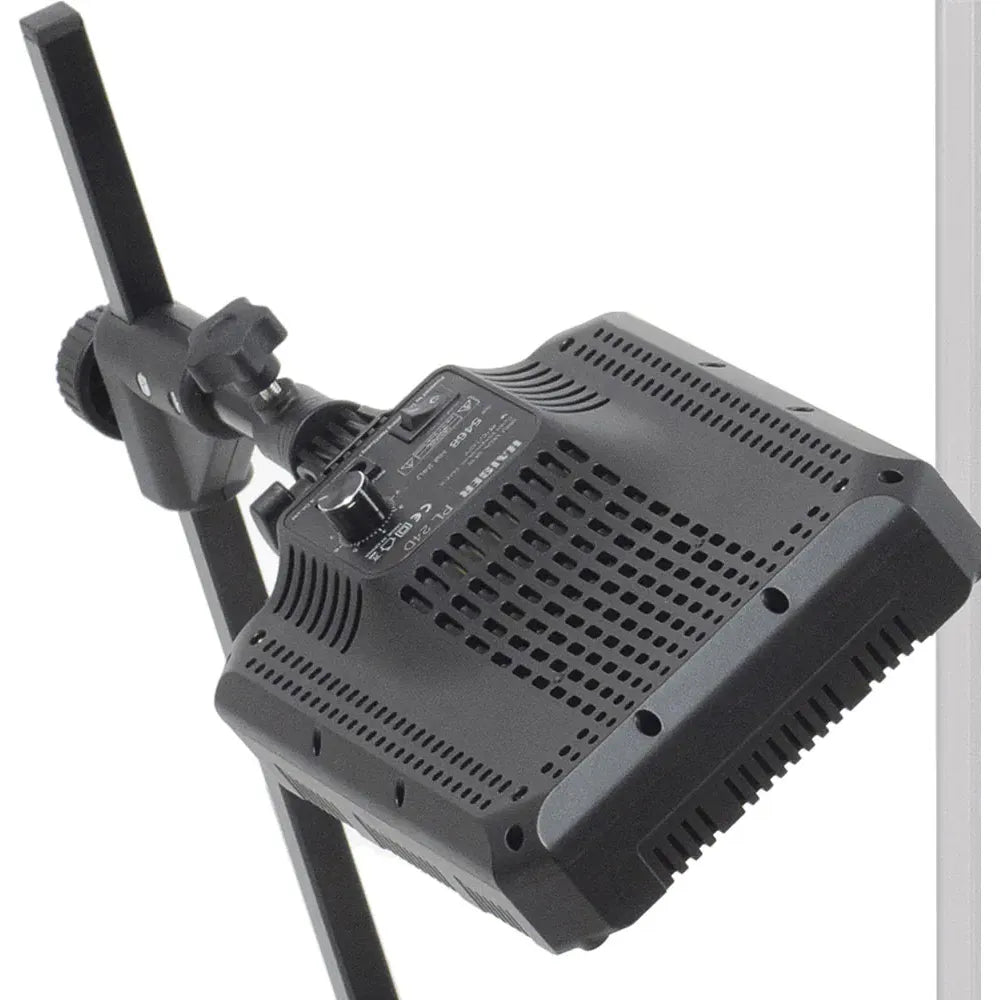

The lights are housed in high-quality plastic and are tiltable and adjustable in height along vertical arms with a 16 × 16 mm (0.6 × 0.6 in.) cross section. The vertical arms are tiltable in detent joints and mounted on strong cast aluminium clamp bases with a clamp width up to 48 mm (1.9 in.). Cable holders allow neat routing of mains leads along the arms.

Specifications

• Light source: 2 × 120 High-CRI LEDs (SMD)
• Colour temperature: 5600 K
• Colour rendition index: CRI 95
• Angle of radiation: 80°
• Light emitting area: 21.4 × 14.7 cm per light
• Power consumption: 2 × 24 W
• Operating voltage: 100–240 V
• Vertical arms: approx. 47 cm (18.5 in.), 16 × 16 mm cross section
• Maximum illumination: 3600 lux (uniform on 8.5 × 12 in. flat subject)

Ideal Use

The Kaiser RB 24D provides reliable, high-quality daylight illumination for photographers requiring soft, even, and adjustable lighting for copy work, product photography, and detailed image capture.
