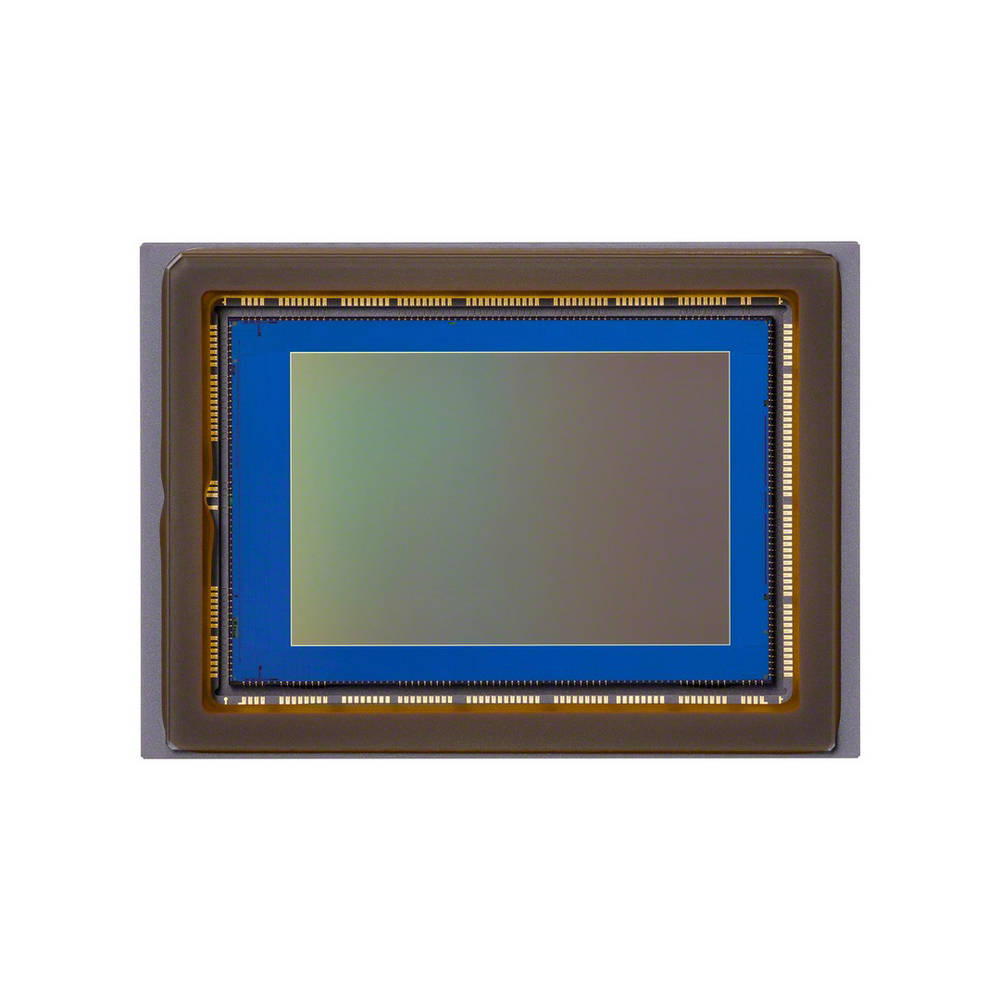

| Image Sensor |
| Type |
22.3 x 14.9mm CMOS |
| Effective Pixels |
Approx. 24.1 megapixels |
| Total Pixels |
Approx 25.8 megapixels |
| Aspect Ratio |
3:2 |
| Low-Pass Filter |
None |
| Sensor Cleaning |
None |
| Colour Filter Type |
RGB Primary Colour |
| Image Processor |
| Type |
DIGIC 8 |
| Lens |
| Lens Mount |
RF |
| Compatibility |
RF, RF-S (EF and EF-S lenses compatible via mount adapter)1 |
| Focal Length |
Equivalent to 1.6x the 35mm focal length of the lens |
| Image Stabilisation |
Optical stabilisation with lenses featuring IS |
| Movie Digital IS |
Off / Enabled / Enhanced2 |
| Focusing |
| Type |
Dual Pixel CMOS AF System |
| Contrast detection method is used during 4K Movie Servo AF |
| Maximum AF Zones (Stills / Movies) |
143 / 1173 |
| AF Working Range |
EV -4 - 18 / EV -2 - 184 |
| AF Modes |
One-Shot AF and Servo AF |
| AF Point Selection |
Face+ Tracking
Spot AF
1-point AF
Zone AF |
| AF System |
Phase-difference detection system with image sensor (Dual Pixel CMOS AF) |
| AF Point Selection |
Auto selection: Face + tracking + Eye AF
Manual selection: 1-point AF (AF frame size can be changed)
Manual selection: Zone AF (all AF points divided into 9 focusing zones)
Manual selection: Large zone AF (vertical) |
| Selected AF Point Display |
Indicated by a transmissive LCD in viewfinder and Quick Control screen |
| AF Assist Beam |
Emitted by an optional dedicated Speedlite |
| Manual Focus |
Selected on lens |
| Exposure Control |
| Metering Modes |
Real-time metering using the image sensor (384-zone metering)
Evaluative metering (linked to all AF points)
Partial metering (approx. 5.8% of viewfinder at centre)
Spot metering (approx. 2.9% of viewfinder at centre)
Centre-weighted average metering |
| Metering Range |
EV 0-20 (at 23°C, ISO 100) |
| AE Lock |
Auto: AE lock when focus is achieved can be enabled or disabled for each metering mode
Manual: With AE lock button |
| Exposure Compensation |
+/-3 EV in 1/3 or 1/2 stop increments |
| AEB |
+/-3 EV in 1/3 or 1/2 stop increments |
| ISO Sensitivity |
Auto (100-25600)
ISO can be expanded to H (equivalent to ISO 51200)
ISO can be expanded to H1 (equivalent to ISO 102400)
ISO can be expanded to H2 (equivalent to ISO 204800) |
| Shutter |
Electronically-controlled focal-plane shutter |
| Speed |
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) |
| White Balance |
Auto (Ambience priority/White priority)
Daylight
Shade
Cloudy
Tungsten light
White fluorescent light
Flash
Custom
Color temperature setting (approx. 2500-10000K)
Personal white balance (3 settings) |
| White Balance Correction |
Blue/Amber +/-9
Magenta/Green +/-9 |
| WB Bracketing |
+/-3 levels in single level increments
3, 2, 5 or 7 bracketed images per shutter release
Selectable Blue/Amber bias or Magenta/Green bias |
| Viewfinder |
0.5-inch OLED colour EVF
Approx. 5,760,000 dots
100% coverage
0.76x magnification
21mm eyepoint (from eyepiece lens centre at -1 dioptre)
Dioptre correction: -4 to +2 m-1 (dioptre) |

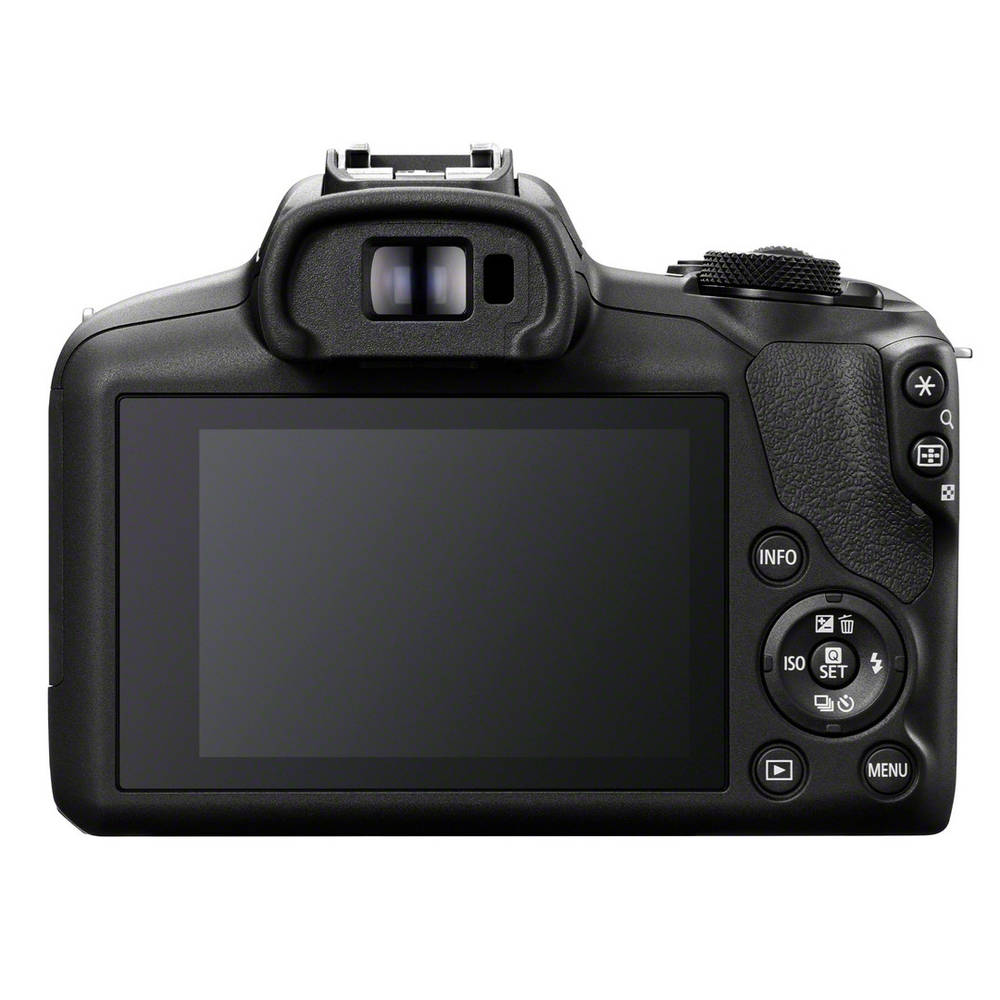

| LCD Monitor |
8.01cm (3.15-inch) Clear View LCD II, approx. 2,100,000 dots |
| Interface Languages |
29 languages |
| Playback Zoom |
1.5x - 10x in 15 steps |
| Image Processing |
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Digital Lens Optimizer
Lens aberration correction
Diffraction correction
Resize to M, S1, S2 or S3
Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
- 45 cropping sizes selectable, from 11% to 95% (diagonal)
Multiple exposure
HDR Mode |
| Drive Modes |
Single
High-Speed continuous
Low-Speed continuous |
| Continuous Shooting Speed |
Max. approx. 30fps with electronic shutter, max. approx. 20fps with mechanical shutter (One-Shot AF)
Max. approx. 15fps in Live View shooting or when anti-flicker mode is set |
| Interval Timer |
Available (Interval timer can be set with 1 second to 99 hours, 59 minutes, and 59 seconds intervals. Bulb timer possible) |
| Movie Type |
MP4 [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)]
MOV [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)] |
| Movie Size |
MP4:
8K (7680 x 4320), 4K DCI (4096 x 2160), 4K UHD (3840 x 2160), Full HD (1920 x 1080), HD (1280 x 720)
MOV:
8K (7680 x 4320), 4K DCI (4096 x 2160), 4K UHD (3840 x 2160), Full HD (1920 x 1080), HD (1280 x 720) |
| Movie Frame Rate |
8K/4K DCI/4K UHD - max. approx. 60fps, Full HD/HD - max. approx. 120fps |
| Movie Length |
8K/4K DCI/4K UHD - Max duration 29 min 59 sec
Full HD/HD - Max duration 29 min 59 sec (excluding High Frame Rate movies) |
| Folders |
New folders can be manually created and selected |
| File Numbering |
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset |
| Other Features |
Custom Functions
14 (6+8)
Customisable My Menu
Metadata Tag
User copyright information
AF point selection methods
Orientation detection
Cropping frame
ISO Auto minimum shutter speed
Time-lapse movie
Custom shooting modes: Register under Mode Dial's C1/C2/C3
Custom Quick Control Screen |

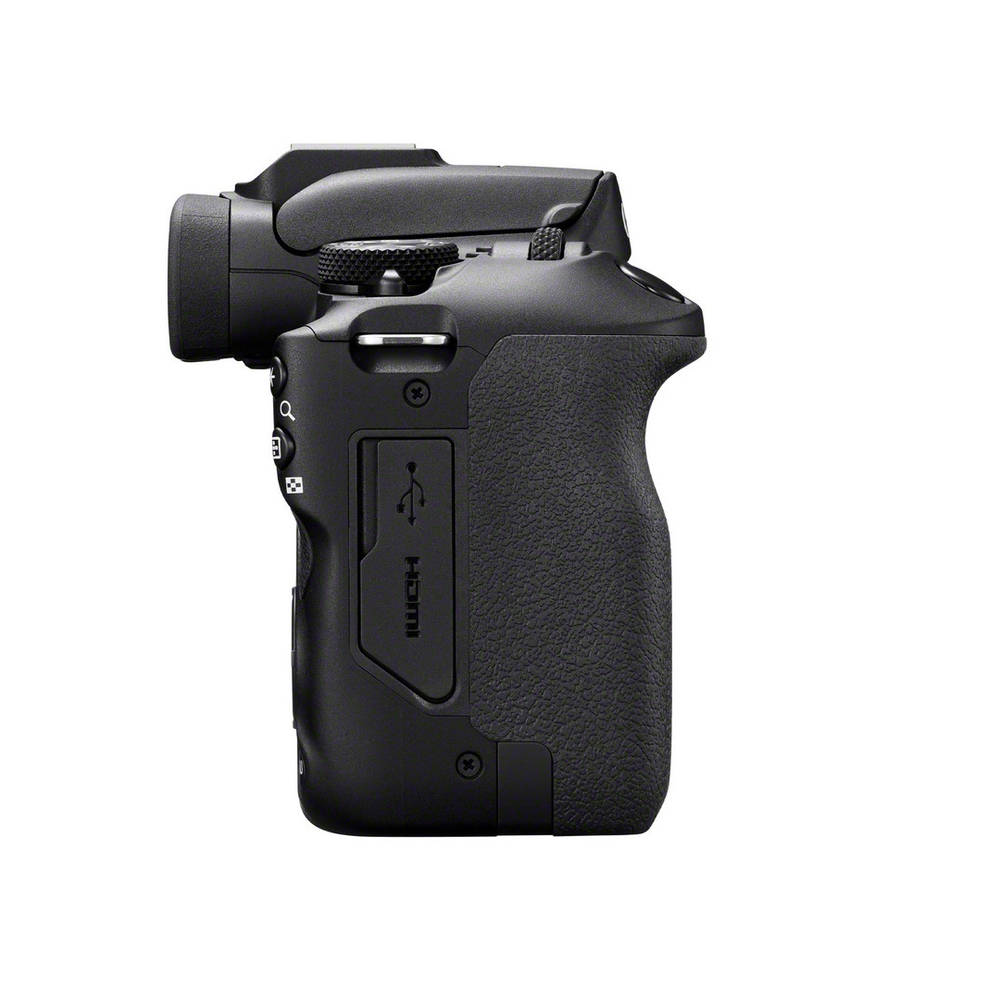

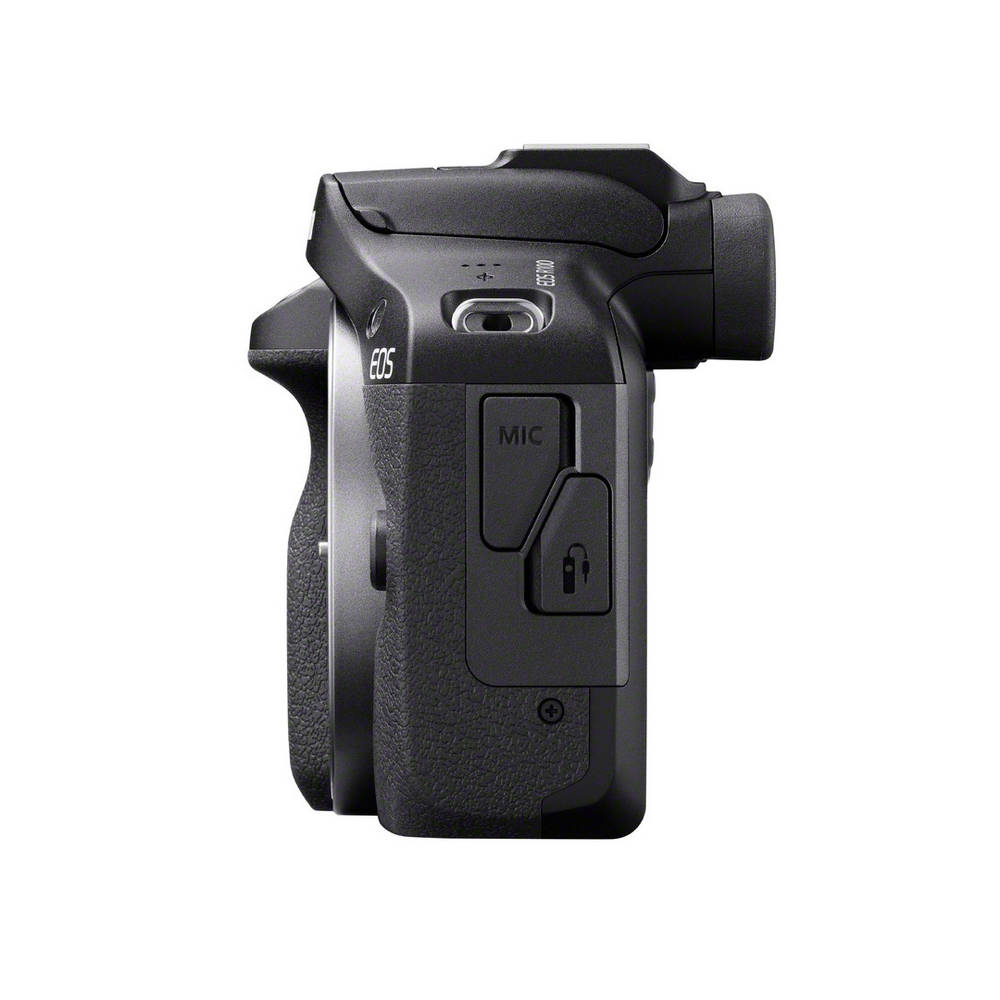

| Interface |
USB 3.1 Gen 1 Type-C (USB charging available)
HDMI micro out (Type-D)
External microphone (3.5mm stereo mini jack)
Headphone socket (3.5mm stereo mini jack)
External microphone input
N3 remote control terminal |
| Wireless Connectivity |
Wi-Fi (2.4 GHz/5 GHz, IEEE 802.11a/b/g/n/ac)
Bluetooth (Specification version 4.2, Bluetooth low energy technology) |
| Battery |
LP-E19 (supplied) |
| Battery Life |
Approx. 1700 shots (at 23°C, AE 50%, FE 50%)
Approx. 1200 shots (at 0°C, AE 50%, FE 50%) |
| Battery Indicator |
6 levels + percentage |
| Power Saving |
Power turns off after 1, 2, 4, 8, 15 or 30 minutes. |
| Accessories |
Wireless File Transmitter WFT-E9
Battery Grip BG-R10
Remote Controller RC-V100
Directional Stereo Microphone DM-E1
Cable Protector
Protecting Cloth PC-E1
Dust Cap RF3
Camera Cover R-F-5
Strap ER-E |
