| POWER |
| Guide No. (ISO100).meters |
60 (200mm) |
| ZOOM |
| Zoom head |
Auto/Manual |
| Focal length coverage |
24-200mm |
| Coverage with wide panel |
14mm |
| Auto zoom for sensor size |
Yes |
| FLASH MODES |
| Auto exposure control |
E-TTL II / E-TTL |
| High speed sync (FP) |
Yes |
| Manual / output settings |
Yes - 1/1 to 1/10241 |
| Manual steps |
1/3-stops |
| Continuous shooting priority (CP) mode |
- |
| Continuous flashes in a burst |
Maximum at full power: Approx. 852 |
| Strobe / output settings |
Yes - 1/4 - 1/1024 |
| Stroboscopic Frequency |
1 - 500Hz |
| FLASH-RELATED FUNCTION |
| FE lock |
Yes |
| FE memory |
Yes |
| Flash exposure compensation |
±3 stops |
| Flash exposure bracketing |
±3 stops |
| Second-curtain flash sync |
Yes (including wireless)3 |
| Modelling flash |
No (supported as off-camera receiver unit only)4 |
| Modelling lamp |
Yes, 2 x White LED
(user selectable duration and 5 brightness levels) |
| Colour temperature info communication |
Yes |
| WIRELESS FLASH |
| Transmitter |
Yes |
| Transmission type |
Radio only |
| Transmitter range |
30m (approx.)5 |
| Receiver |
Yes |
| Max. number of Transmitters / Receivers |
15 / 15 (16 in total of any combination) |
| No. of groups |
5 (A/B/C/D/E) |
| No. of channels |
Auto, 1-15 |
| LINKED Remote Shutter Release |
Yes |

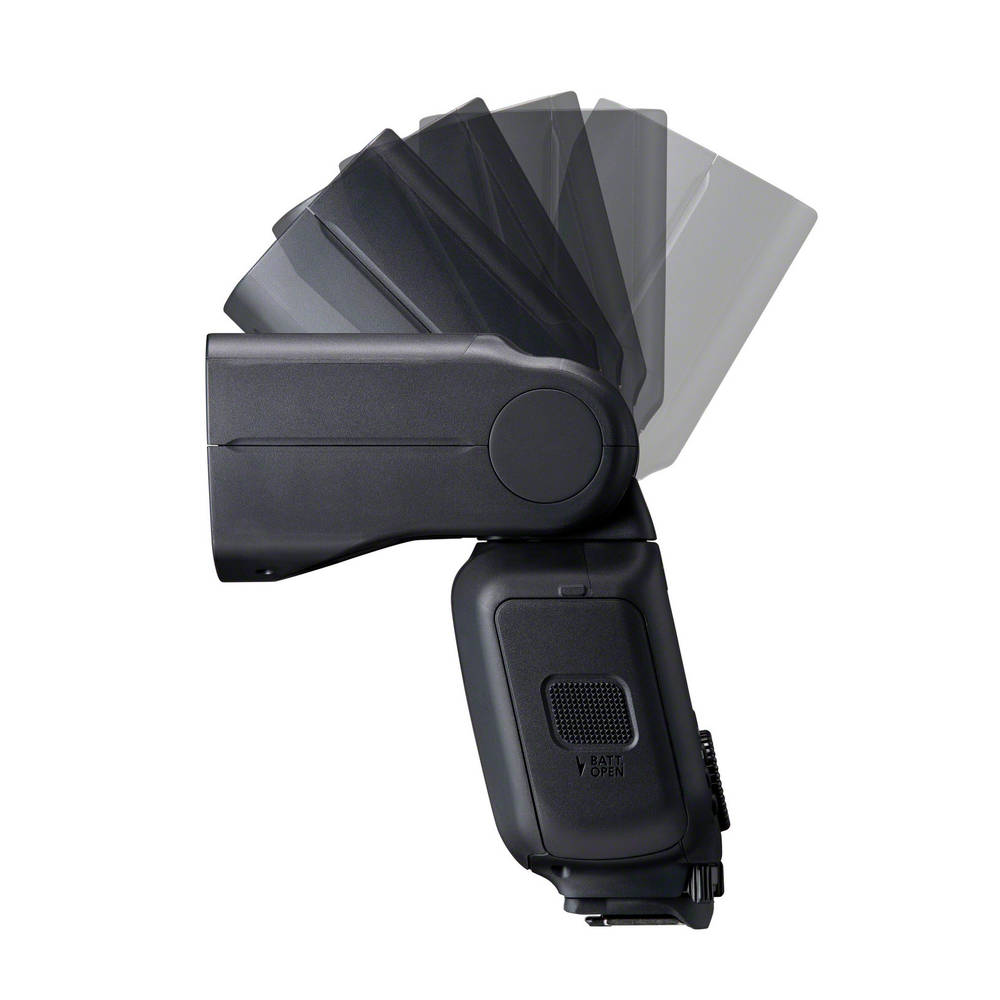

| FLASH HEAD MOVEMENT |
| Up |
45, 60, 75, 90, 120 ° |
| Down |
7 ° |
| Left |
60, 75, 90, 120, 150 and 180 ° |
| Right |
60, 75, 90, 120, 150 and 180 ° |
| AF ASSIST |
| AF-assist beam |
Dual white LED lamp6 |
| Number of AF points supported (infrared) |
n/a |
| AF-assist range (at centre) |
Approx. 0.6-10m |
| POWER SOURCE |
| Battery |
Rechargeable Lithium-ion Battery Pack LP-EL |
| Battery level indicator |
Yes - 5 levels / percentage |
| Minimum recycling time |
Approx. 0.1-1.2 sec2,7 |
No. of flashes
(fully charge battery) |
Approx. 350 (at full power)2 |
| External power supply |
No |
| CONSTRUCTION |
| Dust and water resistance |
Yes |
| Active cooling |
No - Enhanced passive cooling design |

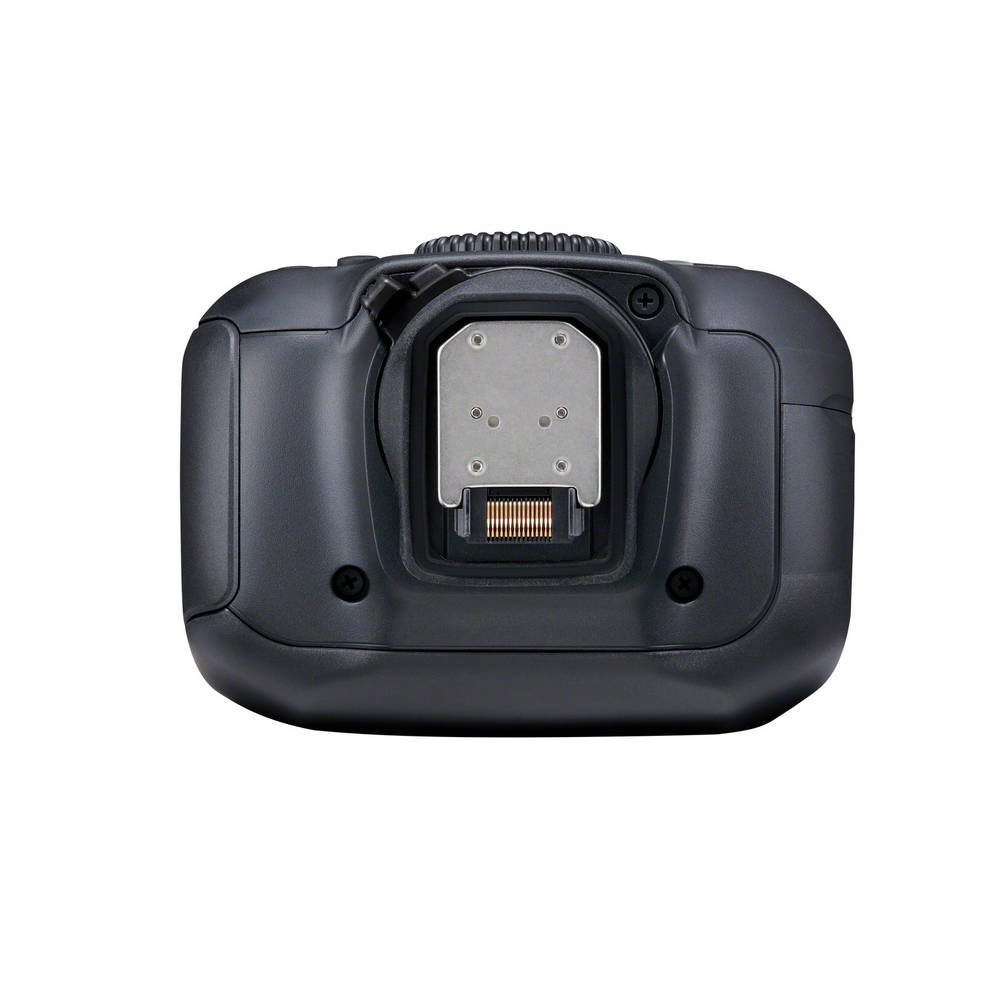

| Mount type supported |
Multi-Function Shoe8 (Gold plated terminals) |
| MISC. |
| Custom Functions (C.Fn) / Personal Functions (P.Fn) |
11 x C.Fn / 8 x P.Fn
(plus 3 x Custom Modes (C1, C2, C3)) |
| Flash settings from camera menus |
Yes9 - On-flash Menu Direct button |
| PC terminal |
No |
| ACCESSORIES |

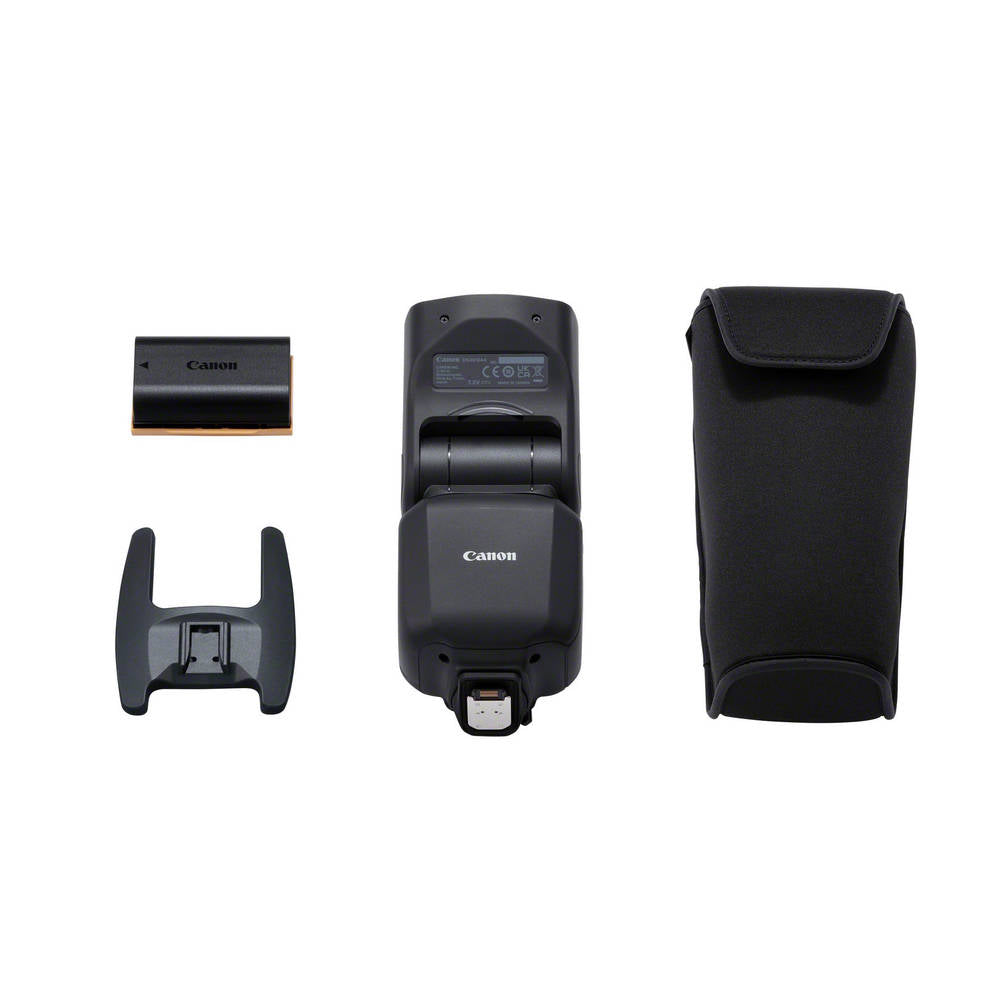

| Included |
Battery Pack LP-EL
Speedlites Case
Mini Stand
Mounting foot cover |
| Optional |
Battery Charger LC-E6E
Car Battery Charger CBC-E6
Speedlite Transmitter ST-E10 (Multi-Function foot) Speedlite Transmitter ST-E3-RT (Ver.2)
(Standard 5-pin foot)
EX series Speedlites with radio receiver function |
| DIMENSIONS & WEIGHT |
 |
| Size (W x H x D), mm |
Approx. 80.2 x 139.9 x 123.3 mm |
| Weight, grams |
Approx. 491g (body only) |
